Fuse
WARNING! Before servicing, repairing, or
brake, stop engine and remove key to prevent
unintended starting.
amperage.
will not crank, first check to be certain that the fuse has not
blown. It is located under the hood, mounted behind the top of
the dash panel on the support bar.
CAUTION: Always use a replacement fuse with the
same amperage capacity as the blown fuse.
Changing the Deck Belt
WARNING! Shut the engine off and remove
ignition key before removing the cutting blade(s) for
sharpening or replacement. Protect your hands by
using heavy gloves when grasping blades and
pulleys.
WARNING! The V-belts found on your tractor are
specially designed to engage and disengage safely.
not disengaging completely. For a proper working
machine, use factory approved belts.
All belts on your tractor are subject to wear and should be
replaced if any signs of wear are present . To change or replace
the deck belt on your tractor, proceed as follows:
Remove the deck as instructed in the Cutting Deck section.
Remove the belt guards by removing the hex washer 2.
screws that fasten them to the deck. See Fig. 7-8.
Loosen, but do not remove the belt keeper rod on the
pulley located near the back of the deck. See Fig. 7-8.
Remove the deck belt from around the three spindle 4.
pulleys and the two deck idler pulleys.
NOTE: The idler pulleys may have to be loosened, but not
removed, in order to remove the belt from around them.
To place the new belt, begin by routing the belt around the 5.
two outer spindle pulleys, then around the front spindle
pulley as shown in Fig. 7-9.
Route the belt around the two deck idler pulleys as shown 6.
in Fig. 7-9.
Retighten the belt keeper rod loosened earlier.7.
CAUTION: Failure to reinstall the belt keeper rod
system.
Remount the belt guards removed earlier.8.
Reinstall the deck making sure the belt remains routed 9.
around the pulleys as instructed.
Belt Cover
Hex Washer
Screw
Idler Pulley
Belt Keeper
Rod

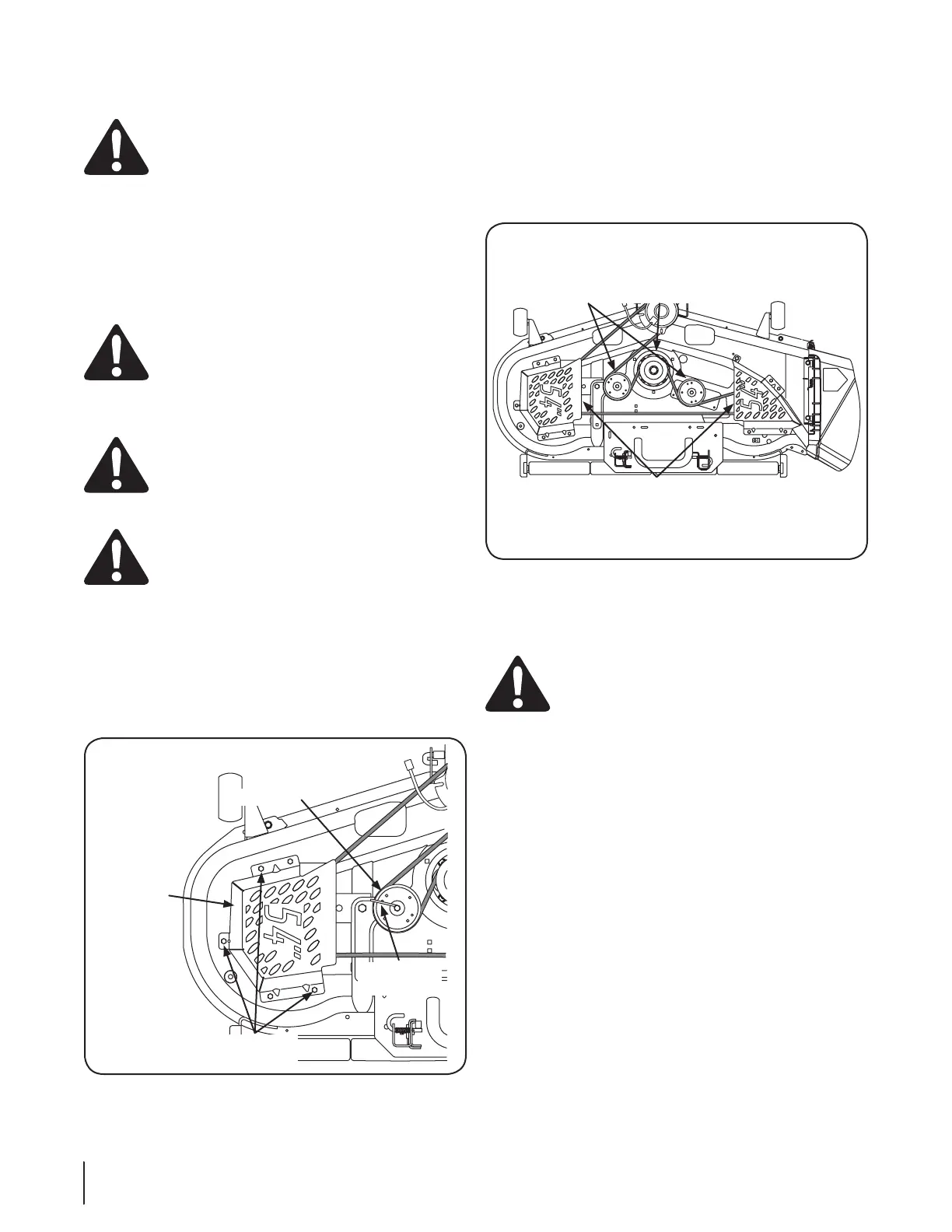

Figure 7-8
Front Spindle
Pulley
Outer Spindle
Pulleys
Deck Idler
Pulleys
Figure 7-9
