Operation
NOTE:
Any reference in this
manual to the RIGHT
or LEFT side of the
tractor is observed from
operator’s position.
Figure 4

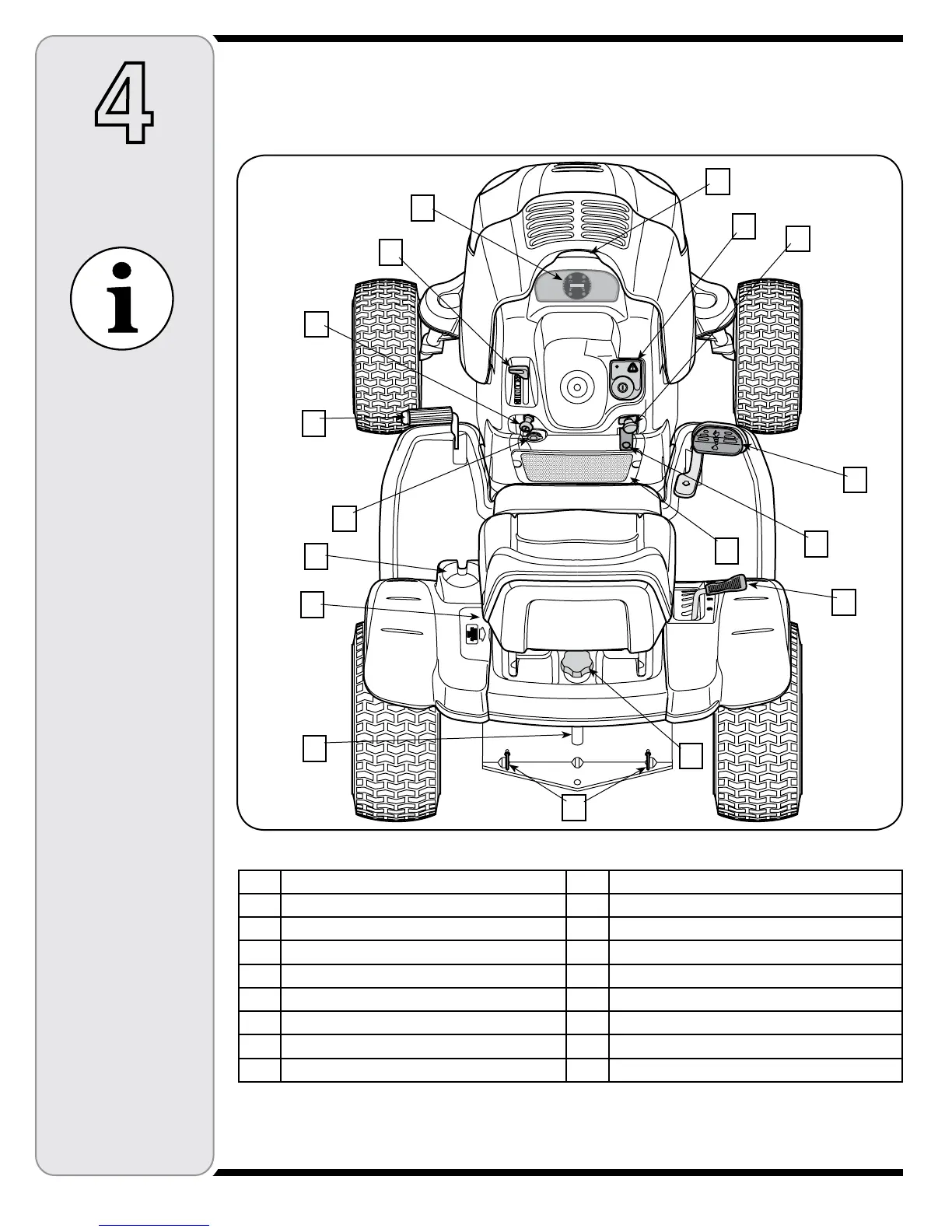

KNOW THE CONTROLS
Read this owner’s manual and safety rules before operating your lawn mower. Compare the figure below with your
lawn tractor to learn about the location and purpose of various controls and adjustments. Save this manual for future
reference. It is very important to follow the instructions and operate the controls properly.
A Systems Indicator Monitor/ Hour Meter J Deck Lift Lever
B Throttle Control Lever K Cup Holder
C Key Switch Module L Seat Adjustment Lever
D Choke Control Knob M Fuel Fill Cap
E PTO (Blade Engage)Control Switch N Hydro Transmission Bypass Rods
F Parking Brake Lever O Fuel Level Window
G 12 volt Power Outlet P Cargo Net
H Drive Pedal Q Hood Lift Notch
I Brake Pedal
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator’s position.
A
B
C
D
E
F
G
H
I
J
K
L
M
O
N
P
Q
