Cub Cadet LGTX 1050 - Service; Cutting Deck Removal

Cutting Deck Removal
To remove the cutting deck, proceed as follows:
1. Place the PTO/Blade Engage knob in the disengaged (OFF)
position and engage the parking brake.
2. Lower the deck by moving the deck lift lever into the
bottom notch on the right fender.
3. Locate the PTO clutch under the front of your tractor. See
Fig. 7-1.
4. Remove the belt guard and belt as follows Refer to Fig. 7-1:
a. Remove the hex screws.
b. Pull the belt keeper rod to the right and down to
remove.
c. Remove the deck belt from around the tractor’s
electric PTO clutch.
NOTE: If there is too much tension on the belt for it to be easily
removed from the electric PTO clutch, carefully insert a ⁄” drive
ratchet wrench (set to tighten) into the square hole found in the
left-hand deck idler bracket and pivot it toward the tractor’s right
side to relieve tension on the belt. See Fig. 7-2.
WARNING! Avoid pinching injuries. Never place
your fingers on the idler spring or between the belt
and a pulley while removing the belt.
5. Looking at the cutting deck from the left side of the tractor,
locate the deck support pin on the rear left side of the deck.
6. Pull the deck support pin outward to release the deck from
the deck lift arm. See Fig. 7-3.
7. Repeat the above steps on the tractor’s right side.
8. Move the deck lift lever into the top notch to raise the deck
lift arms up and out of the way.
9. Remove the bowtie cotter pin connecting the deck sway
rod to the tractor frame. See Fig. 7-4.
10. Remove the cotter pin from the end of the stabilizer rod
and slide the stabilizer out of the hanger bracket on the
deck. See Fig. 7-5.
11. Gently slide the cutting deck (from the right side) out from
underneath the tractor.
12. Reinstall the belt keeper rod loosened earlier.

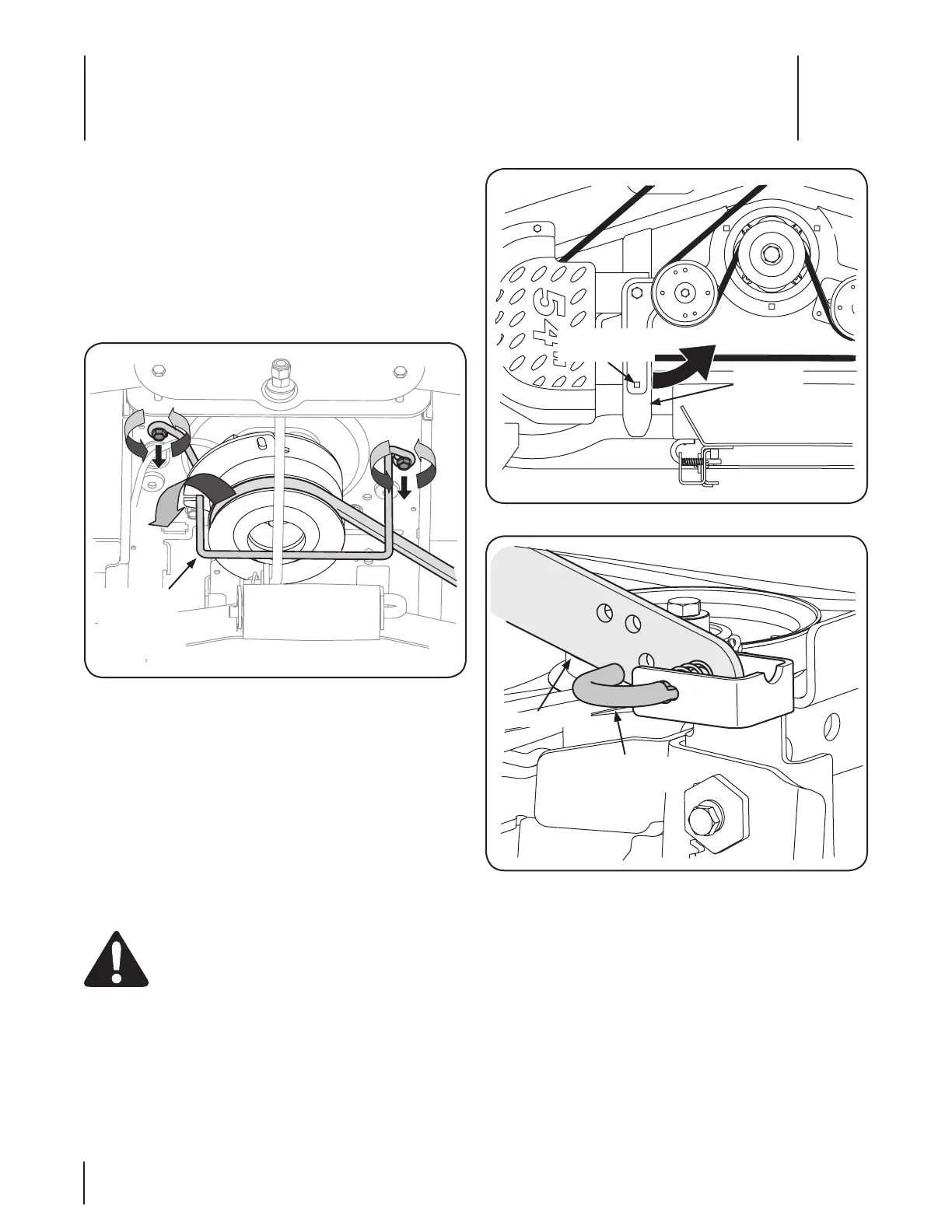

Belt Keeper
Rod
Figure 7-1
Insert Ratchet
Here
Deck Idler
Bracket
Figure 7-2
Deck Lift Arm
Deck Support
Pin
Figure 7-3
