22

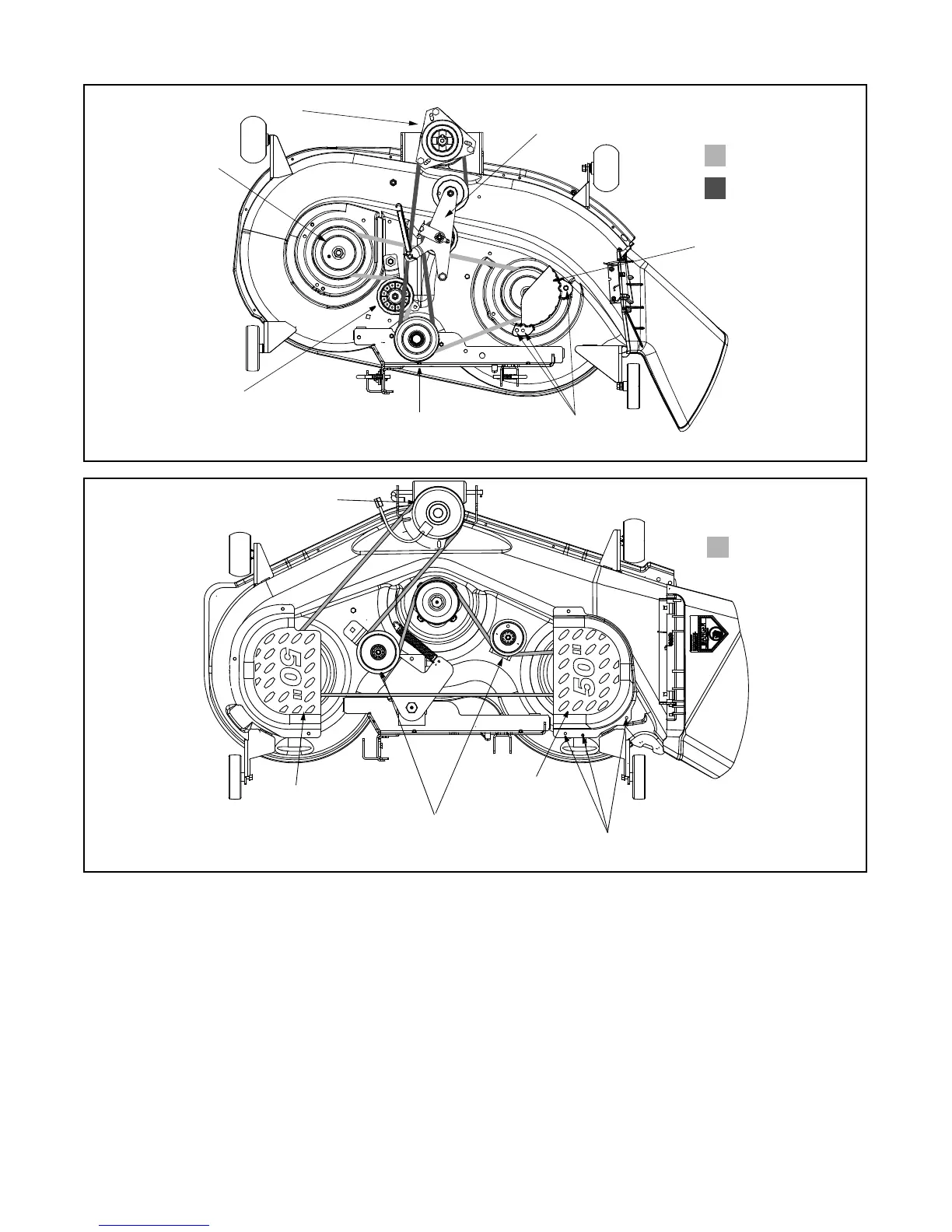

Figure 18
Figure 19
Changing The Transmission Drive Belt
NOTE:
An air/impact wrench is needed to remove the
electric PTO and properly replace the drive belt.
All belts on your tractor are subject to wear and should
be replaced if any signs of wear are present.
IMPORTANT:
The V-belts found on your tractor are
specially designed to engage and disengage safely. A
substitute (non-OEM) V-belt can be dangerous by not
disengaging completely. For a proper working machine,
use factory approved belts.
To change or replace the drive belt on your tractor,
proceed as follows:
• Remove the cutting deck as instructed earlier in this
section.
• After disconnecting the battery cables, remove the
battery and battery tray from beneath the seat.
IMPORTANT:
When removing the battery, disconnect
the NEGATIVE (Black) wire from it’s terminal first,
followed by the POSITIVE (Red) wire. Re-install in
reverse order.
Self-Tapping Screws
Deck Idler Pulleys
Electric PTO Clutch
Right Hand Pulley
(beneath belt guard)
Right Hand Pulley
(beneath belt guard)
Models 1022 & 1024
Deck / PTO Belt
NOTE:
Models 1022 & 1024 are equipped with a different size deck. However, the belt routing of each is the same .
Model 1018
Deck belt (Bottom)
PTO belt (Top)
Electric PTO Clutch
PTO Idler Bracket
Left Hand Pulley
Right Hand Pulley
(beneath belt guard)
Center Pulley
Deck Idler Pulley
Self-Tapping Screws
(mounted on tractor)
NOTE:
Left hand belt cover not shown for clarity.
