27
Hydrostatic Transmission
Keep the area around the transmission cooling fan free
of grass and debris at all times. The hydrostatic
transmission is sealed at the factory and is
maintenance free. The fluid level cannot be checked.
IMPORTANT:
Several tractor components and parts
(pedals, seat, fender, fuel tank, etc.) must be removed
in order to refill the transmission after draining it.
If your tractor is exposed to extreme conditions (hilly
terrain, towing, etc.) and you choose to change the
hydrostatic fluid, do so after the tractor’s initial 50 hours
of operation and once a season thereafter.

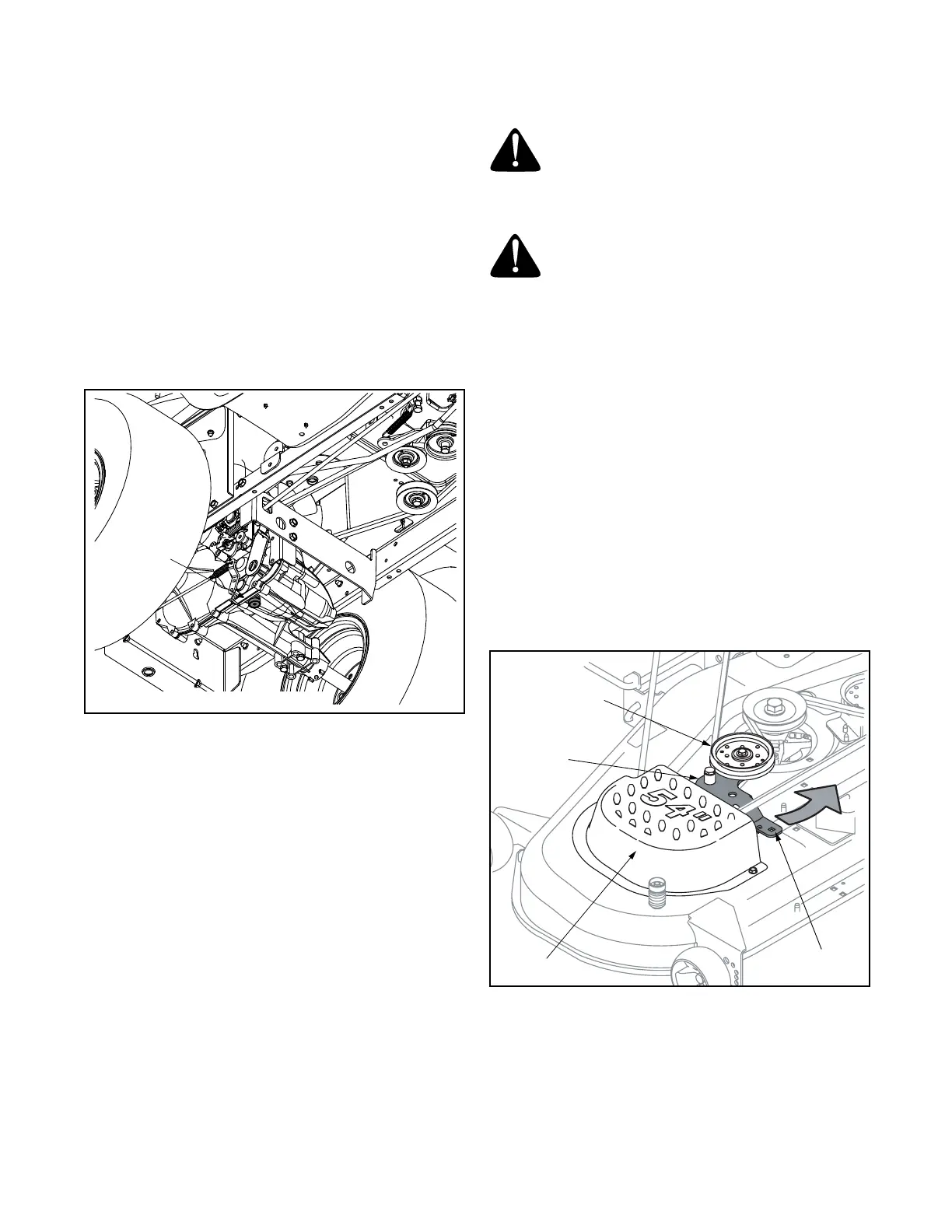

Figure 21
After draining the oil, refill the transmission with 76 oz.
(to the top of the fill hole found on the transmission’s
surface) with any SAE 20W50 motor oil.
Changing the Deck Belt
WARNING: Be sure to shut the engine off
and remove the ignition key, to prevent
unintended starting.
WARNING: Avoid the possibility of a
pinching injury. Do not place your fingers on
the idler spring or between the belt and a
pulley while removing the belt.
All belts on your tractor are subject to wear and should
be replaced if any signs of wear are present.
IMPORTANT:
The V-belts found on your tractor are
specially designed to engage and disengage safely. A
substitute (non-OEM) V-belt can be dangerous by not
disengaging completely. For a proper working machine,
use factory approved belts.
To change or replace the deck belt on your tractor,
proceed as follows:
• Lower the deck by moving the deck lift lever into the
bottom notch on the right fender.
• Remove the belt guards by removing the self-
tapping screws that fasten them to the deck.
• Remove the belt keeper rod from around the
electric PTO clutch.
• Remove the cutting deck as instructed earlier in this
section.
• Remove the deck belt from around all pulleys,
including the deck idler pulley(s) and the electric
PTO clutch.

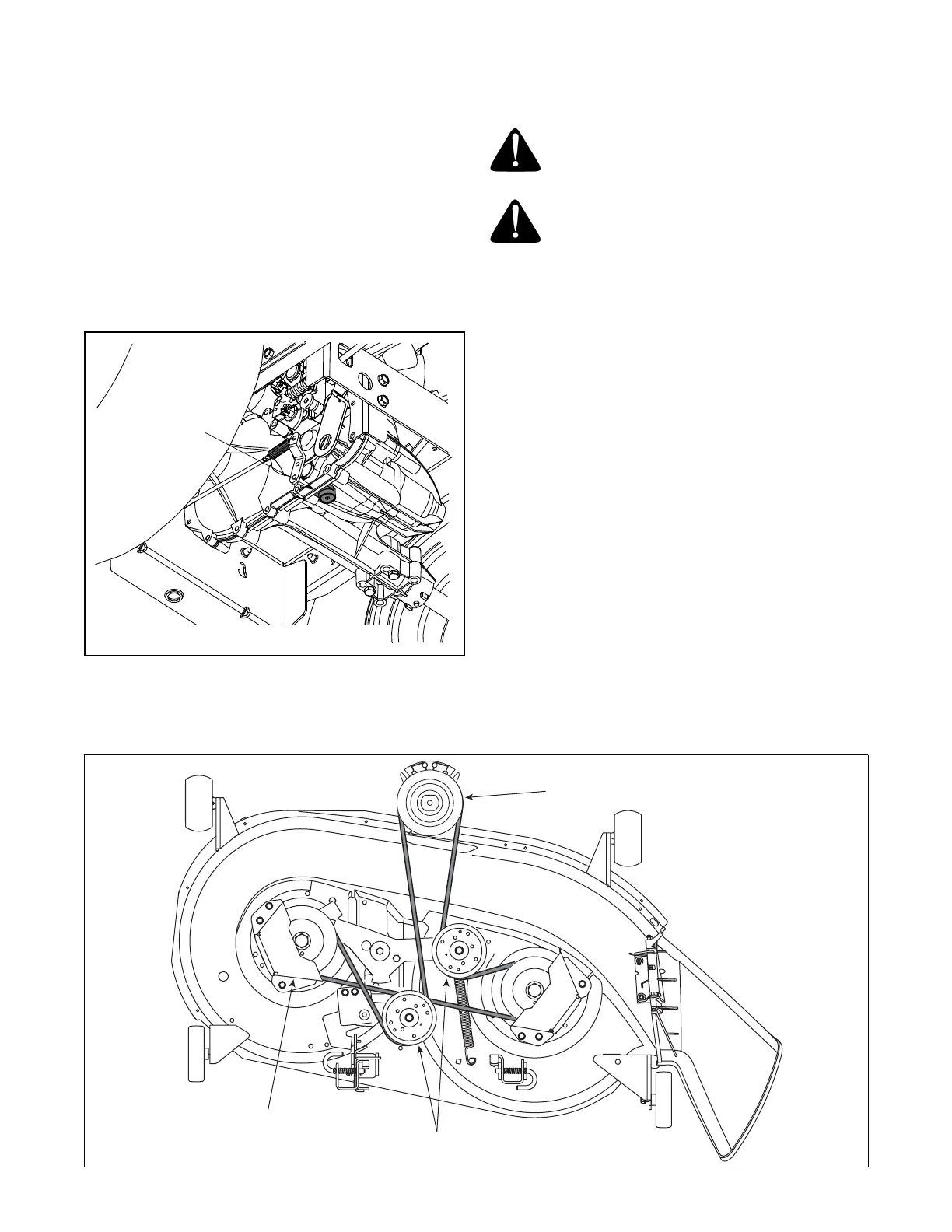

• Route the new belt as shown below.
• Remount the belt guards removed earlier.
Drain Plug
NOTE: View shown from beneath tractor.
Belt Cover
Idler Pulleys
PTO Clutch
To Next Page
