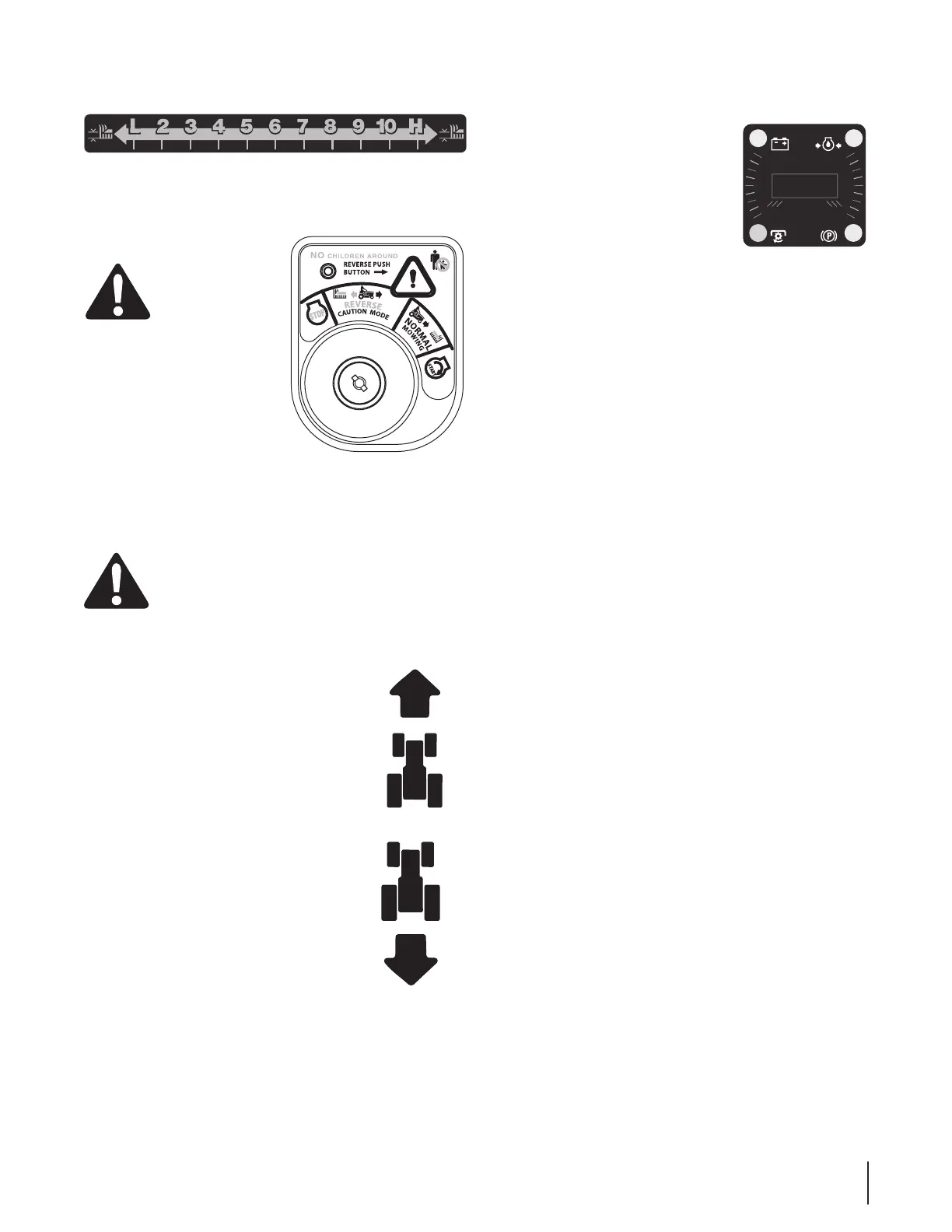

Deck Lift Lever
change the height of the cutting deck. To use, move the lever to
the left, then place in the notch best suited for your application.
Ignition Switch Module
WARNING! Never
leave a running
machine unattended.
Always disengage
brake, stop engine
and remove key to
prevent unintended
starting.
To start the engine, insert the key
into the ignition switch and turn
clockwise to the START position.
Release the key into the position once
the engine has fired.
To stop the engine, turn the ignition key counterclockwise to the
CAUTION:
both Safety Interlock Switches and Starting The
detailed instructions regarding the Ignition Switch
Module and operating the tractor in REVERSE
.
Drive Pedal
The drive pedal is located on the right side
the drive pedal forward to cause the tractor to
travel forward. Ground speed is also controlled
with the drive pedal. The further forward that
the pedal is pivoted, the faster the tractor
will travel. The pedal will return to its original
Reverse Pedal
The reverse pedal is located on the right
side of the tractor along the running board.
Ground speed is also controlled with the
reverse pedal. The further downward the
pedal is pivoted, the faster the tractor will
travel. The pedal will return to its original
Systems Indicator Monitor /
Hour Meter LCD
When the ignition key is rotated out of
position, the systems indicator monitor
its LCD for approximately five seconds,
after which it displays an hour glass and the
is started, the monitor continually displays an hour glass and the
hours of tractor operation on its LCD.
NOTE:
whether the engine is started.
The Indicator Monitor will also remind the operator of
maintenance intervals for changing the engine oil. The LCD will
minutes, after every 50 hours of recorded operation elapse. The
this maintenance interval. Before the interval expires, change
the engine oil as instructed in the Maintenance section of this
Brake
If the Brake light illuminates when attempting to start the
PTO (Blade Engage)
Oil (If Engine So Equipped)
while the engine is running, stop the tractor immediately and
Battery
It is normal for the Battery light to illuminate while the engine is
while the engine is running, the battery is in need of a charge
amperage. Charge the battery as instructed in the Service
section of this manual or have the charging system checked by
your Cub Cadet dealer.
Cargo Net
The cargo net is located on the lower half of the dash and can be
used for storage.
HOURS 1/10
PTO
/
B
L
A
D
E
PA
R
K
B
R
A
K
E
O
I
L
BAT
T.
13se c t i O n 4 — cO n t r O l s a n d fe a t u r e s
