Deck Lift Lever
Found on your tractor’s right fender,
the deck lift lever is used to change
the height of the cutting deck. To
use, move the lever to the left, then
place in the notch best suited for
your application.
Ignition Switch Module
WARNING! Never
leave a running
machine unattended.
Always disengage
PTO, set parking
brake, stop engine
and remove key to
prevent unintended
starting.
To start the engine, insert the key
into the ignition switch and turn
clockwise to the START position.
Release the key into the NORMAL MOWING MODE position once
the engine has fired.
To stop the engine, turn the ignition key counterclockwise to the
STOP position.
CAUTION: Prior to operating the tractor, refer to
both Safety Interlock Switches and Starting The
Engine in the Operation section of this manual for
detailed instructions regarding the Ignition Switch
Module and operating the tractor in REVERSE
CAUTION MODE.
Seat Adjustment Lever (not seen)
The seat adjustment lever is located below the front/left of the
seat. The lever allows for adjustment of the fore to aft position of
the operator’s seat. Refer to the Assembly and Set-Up section of
this manual for more detailed instructions.

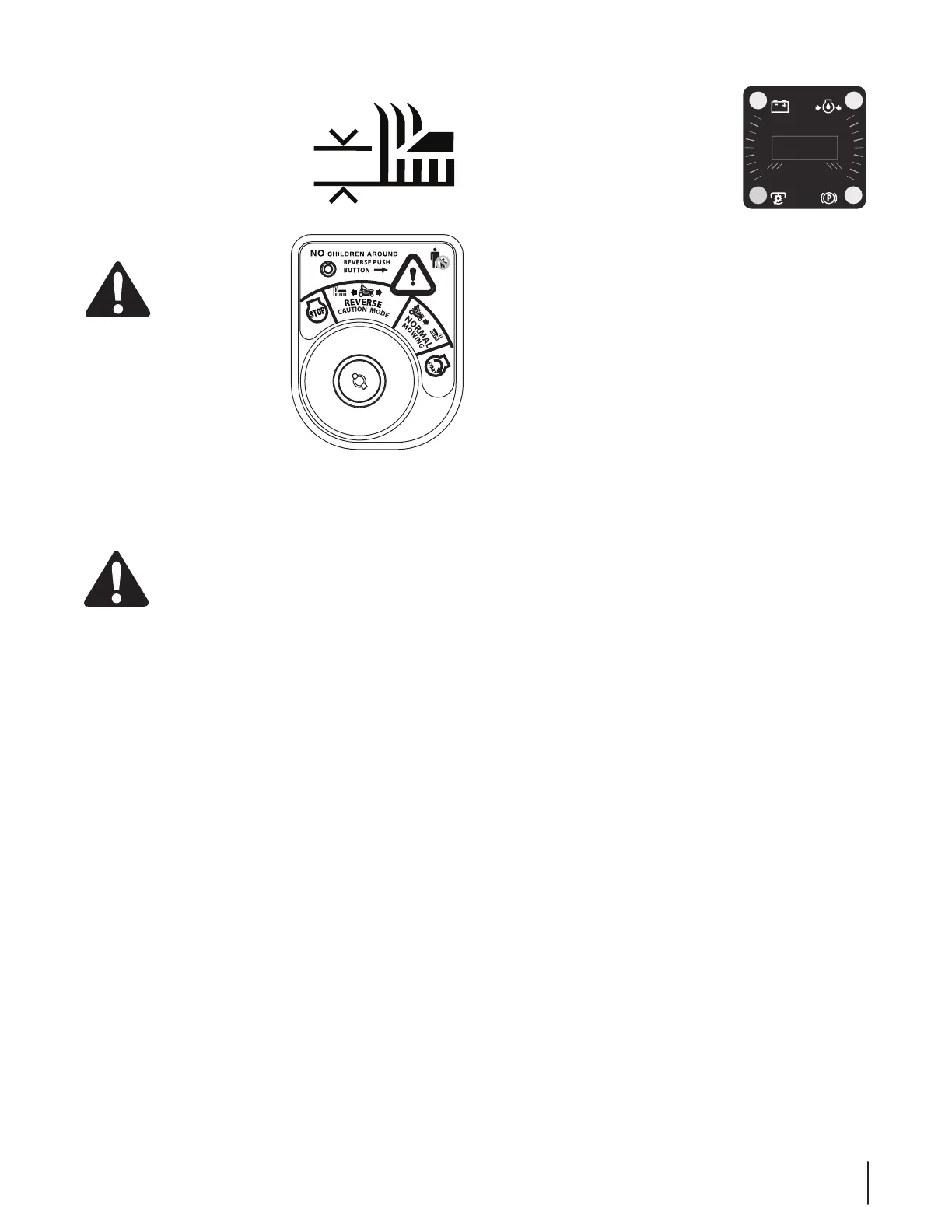

Systems Indicator Monitor/
Hour Meter LCD
When the ignition key is rotated out of
the STOP position but not into the START
position, the systems indicator monitor
displays the battery’s output, in volts, on
its LCD for approximately five seconds,
after which it displays an hour glass and the hours of tractor
operation. Once the tractor is started, the monitor continually
displays an hour glass and the hours of tractor operation on its
LCD.
NOTE: Hours of tractor operation are recorded any time the
ignition key is rotated out of the STOP position, regardless of
whether the engine is started.
The Indicator Monitor will also remind the operator of
maintenance intervals for changing the engine oil. The LCD will
alternately flash the recorded hours, “CHG” and “OIL” for five
minutes, after every 50 hours of recorded operation elapse. The
maintenance interval lasts for two hours (from 50-52, 100-102,
150-152, etc.). The LCD will also flash as described above for five
minutes every time the tractor’s engine has been started during
this maintenance interval. Before the interval expires, change
the engine oil as instructed in the Maintenance section of this
Operator’s Manual.
PTO (Blade Engage)
If the PTO light illuminates when attempting to start the tractor’s
engine, move PTO lever into the disengaged (OFF) position.
Oil (If Engine So Equipped)
It is normal for the Oil light to illuminate while the engine is
cranking during start-up, but if it illuminates during operation,
while the engine is running, stop the tractor immediately and
check the engine oil level as instructed in this Owner’s Manual.
Battery
It is normal for the Battery light to illuminate while the engine is
cranking during start-up, but if it illuminates during operation,
while the engine is running, the battery is in need of a charge
or the engine’s charging system is not generating sufficient
amperage. Charge the battery as instructed in the Service
section of this manual or have the charging system checked by
your dealer.
HOURS 1/10
PTO
/
B
L
A
D
E
PA
R
K
B
R
A
K
E
O
I
L
BAT
T.
13
Section 4 — controlS and FeatureS
