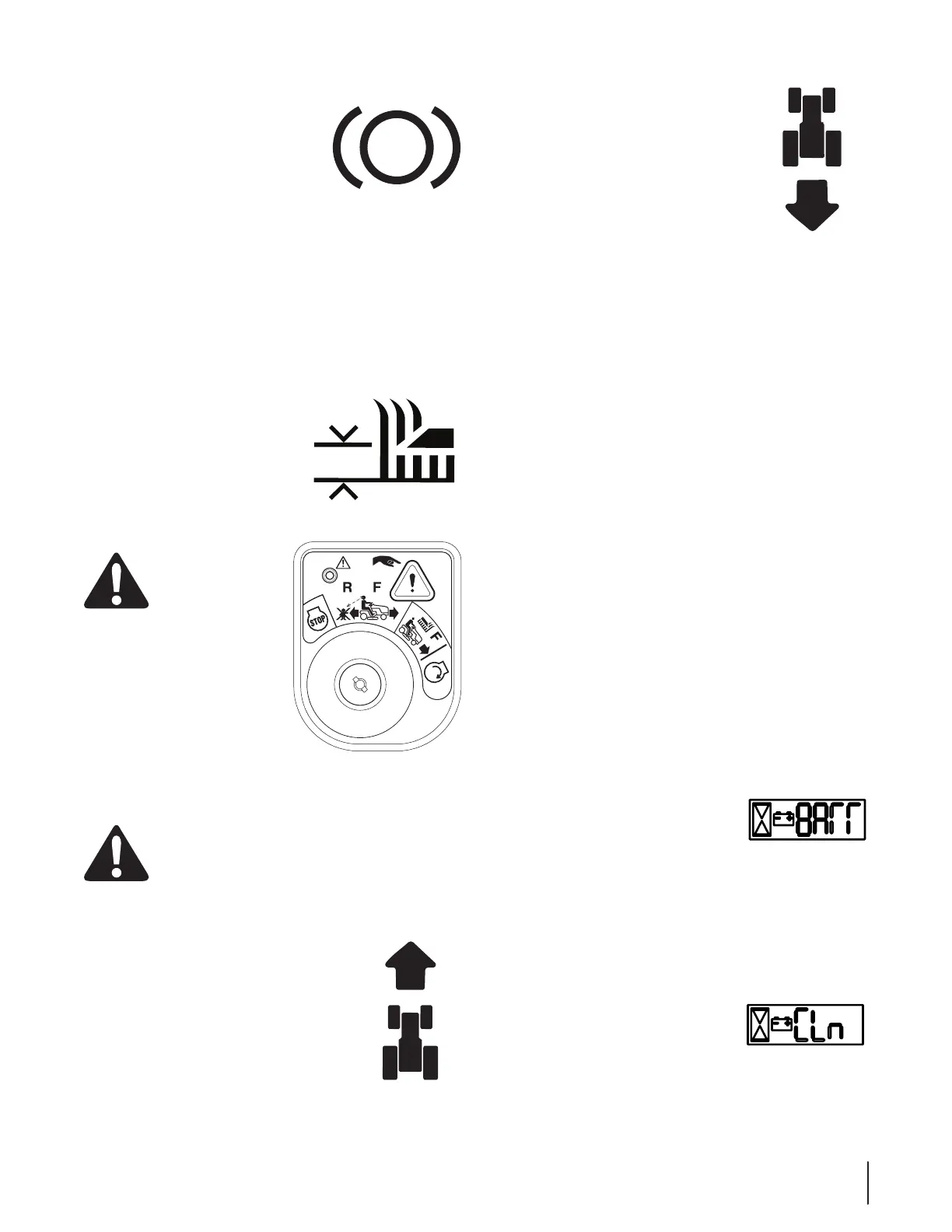

Brake Pedal
The brake pedal is located on the left
front side of the tractor above the drive
pedal along the running board. The
brake pedal can be used for sudden
stops or setting the parking brake.
NOTE: The brake pedal must be fully
depressed to activate the safety interlock switch when starting
the tractor.
Seat Adjustment Lever
The seat adjustment lever is located below the front/left of the
seat. The lever allows for adjustment of the fore to aft position of
this manual for more detailed instructions.
Deck Lift Lever
the deck lift lever is used to change
the height of the cutting deck. To
use, move the lever to the left, then
place in the notch best suited for
your application.
Ignition Switch Module
WARNING! Never
leave a running
machine unattended.
Always disengage
engine and remove key to prevent
unintended starting.
To start the engine, insert the key
into the ignition switch and turn
clockwise to the START position.
Release the key into the
position once the
engine has fired.
To stop the engine, turn the ignition key counterclockwise to the
position.
CAUTION: Prior to operating the tractor, refer to
both Safety Interlock Switches and Starting The
detailed instructions regarding the Ignition Switch
Module and operating the tractor in REVERSE
.
Drive Pedal
The drive pedal is located on the right side
of the tractor, along the running board. Press
the drive pedal forward to cause the tractor
to travel forward. Ground speed is also
controlled with the drive pedal. The further
forward the pedal is pivoted, the faster the
tractor will travel. The pedal will return to its
Reverse Pedal
The reverse pedal is located on the right
side of the tractor along the running board.
Ground speed is also controlled with the
reverse pedal. The further downward the
pedal is pivoted, the faster the tractor will
travel. The pedal will return to its original
Brake
If the Brake light illuminates when attempting to start the
LCD Service Minder & Hour Meter
into the START position, the LCD Service Minder and Hour Meter
accumulated hours.
NOTE: Hours of tractor operation are recorded any time the
whether the engine is started.
The LCD Service Minder will remind the operator of maintenance
intervals for changing the engine oil, air filter service, low engine
and low battery warnings.
Change Oil
on the display for 7 minutes after the meter reaches 50 hours.
This oil service minder intervall will occur every 50 hours. Before
the interval expires, change the engine oil as instructed in the
Low Oil
oil. Stop the tractor immediately and check the engine oil level as
Low Battery
At startup, the battery voltage is briefly
displayed then changes to accumulated
is not generating sufficient amperage. Charge the battery as
instructed in the Service section of this manual or have the
charging system checked by your local service dealer.
Air Filter Service
display for 7 minutes after the meter reachges 25 hours. This
intervalls that are common with oil service, the oil message will
be diplayed first followed by the air filter message.
13Section 4 — controlS & FeatureS
