SET-UP
2. When both locking pins are secured in the ADJUSTMENT position, slowly lift and
rotate the upper ROPS from the TRANSPORT (a) position, past the TRANSPORT
WITH BAGGER (b) position and into the OPERATION (c) position (Figure 5).
a
b
c

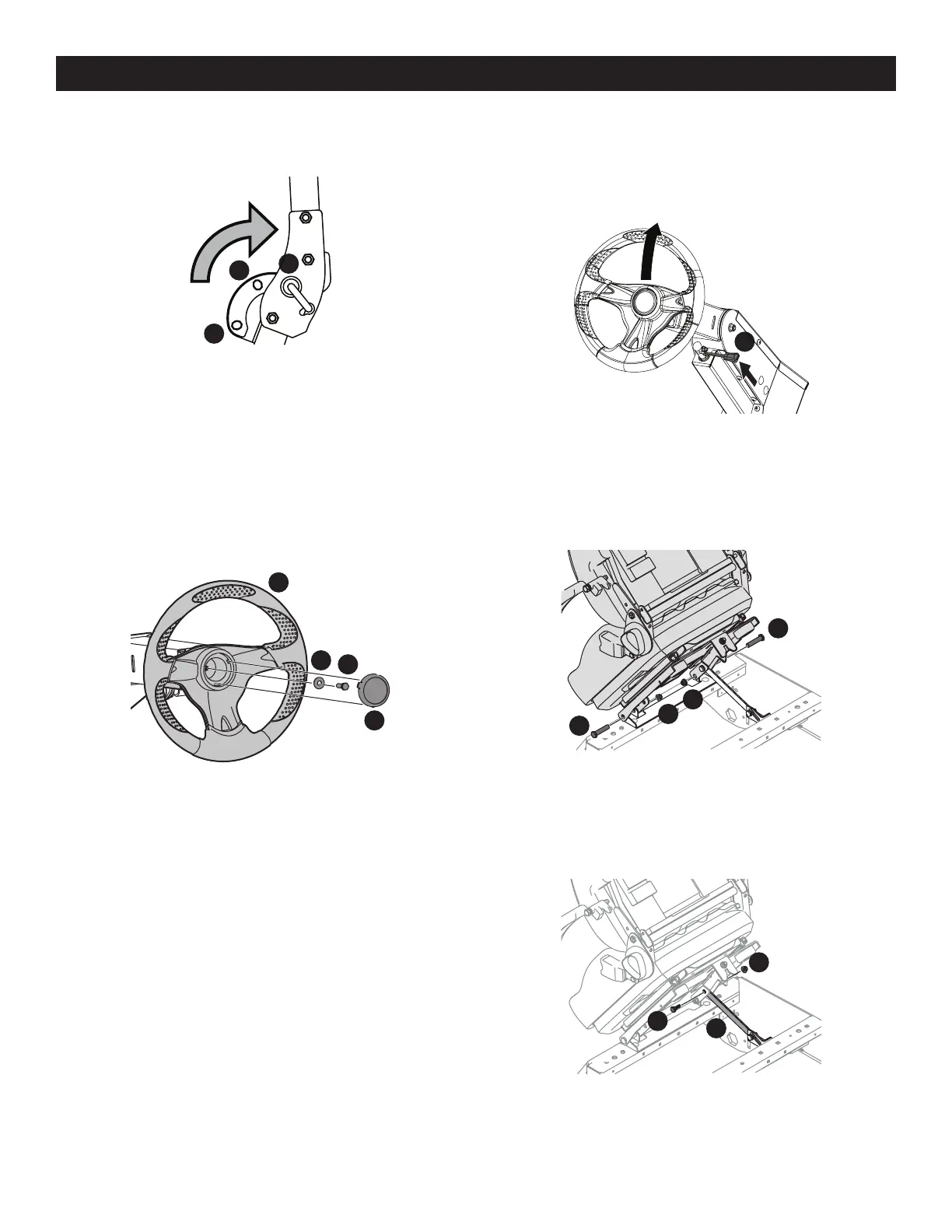

Figure 5
3. Rotate both locking pins into the LOCKED position. Move the upper ROPS slightly
until the locking pins are fully engaged in the LOCKED position.
STEERING WHEEL
IMPORTANT! Do not use impact tools to install or remove the steering wheel. Doing
so may cause damage to critical power steering components.
1. Remove the hardware for attaching the steering wheel from beneath the steering
wheel cap (a). Carefully pry off the steering wheel cap (a) to remove the hardware
(Figure 6).
b
a
d
c
Figure 6
2. With the wheels of the machine pointing straight forward, place the steering
wheel (b) over the steering shaft (Figure 6).
3. Place the Belleville washer (c) over the steering wheel (b) and secure with the hex
lock screw (d) (Figure 6).
4. Place the steering wheel cover over the center of the steering wheel and push
downward until it “clicks” into place.
STEERING WHEEL COLUMN
The steering wheel column is tilted all the way down for shipping purposes. To
adjust the column pull up on the steering column adjustment lever (a) and move
the steering column up into the desired position. Release the steering column
adjustment lever (a) to secure the steering column in the desired position (Figure 7).
a
Figure 7
INSTALLING OPERATOR’S SEAT IF NECESSARY
To install operator’s seat (SD models only, if necessary):
1. Remove the two flange lock nuts (b) and shoulder bolts (a) from the manual bag
(Figure 8).
a
a
b
b
Figure 8
2. Place the seat into position and secure the seat into place with the hardware
(Figure 8).
3. Remove the shoulder screw (a) and flange lock nut (b) from manual bag and
install the seat lockout bracket (c) (Figure 9).
a
b
c
Figure 9
