Cub Cadet RZT L 42 User Manual

Section 7— Service
32
4. Remove the belt from the spindle pulleys.
5. Install the new belt around the spindle pulleys as shown

6. 

hardware and tighten the flange lock nut to secure the

7. 

50” & 54” Deck
 Remove the deck from beneath the tractor, (refer to Deck
Removal on page 28).
2. Remove the hex washer screws securing the belt covers to

Belt Cover
Hex Washer
Screws
Idler Pulley
Belt Guards
Spindle Pulley
Spindle Pulley
Spindle Pulley
Idler Arm

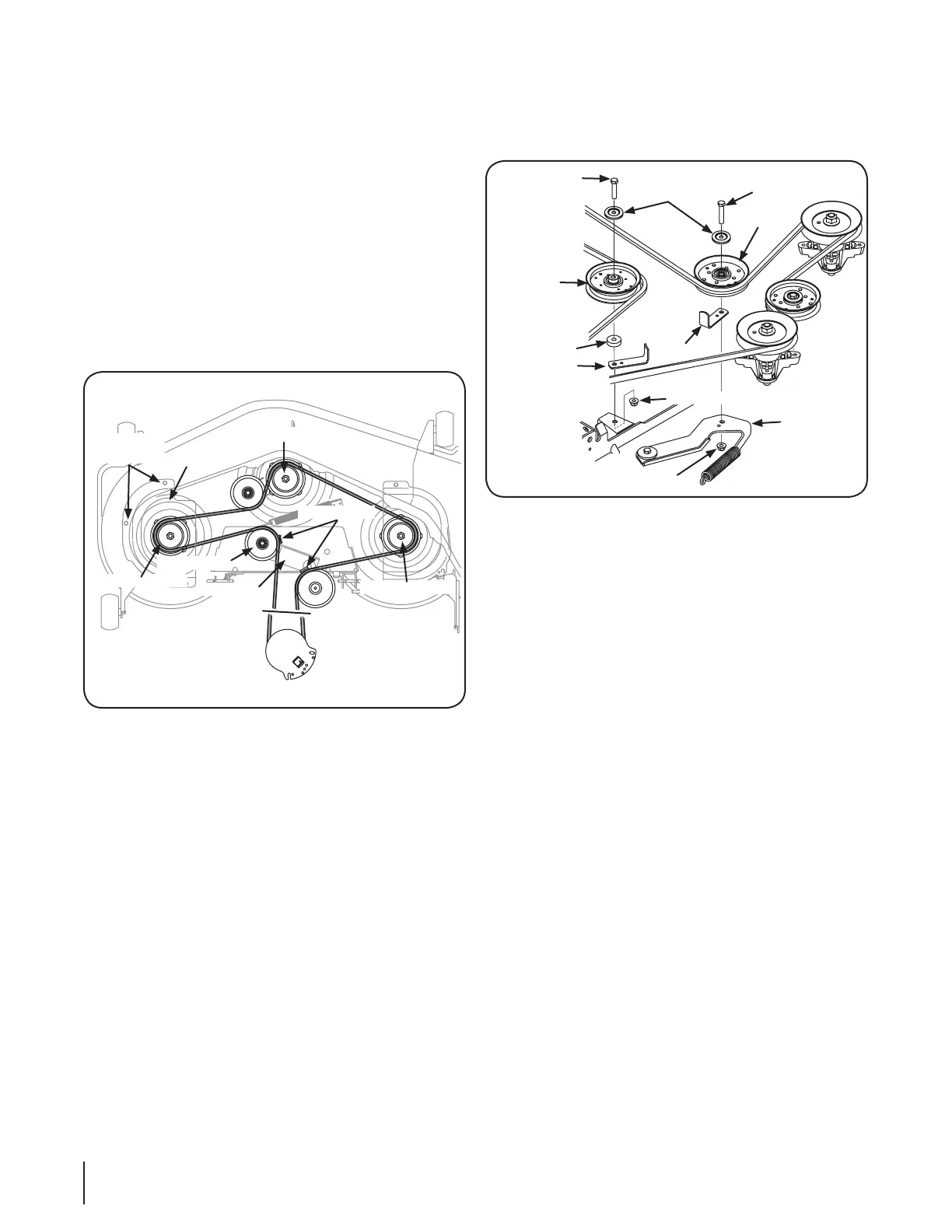

Figure 7-12
 Remove the two idler pulleys by removing the hex screws
and flange lock nuts that secure them to the deck and the

when removing the hex screw and flange lock nut.
Flange Lock Nut
Idler Pulley
Idler Pulley
Spacer
Idler Arm
Hex Screw
Hex Screw
Pulley Cap
Belt Guard
Belt Guard
Flange Lock Nut
Figure 7-13
NOTE: Take note of the position of the belt guards to
ensure they are properly re-installed.
4. Remove the belt from the spindle pulleys.
5. Install the new belt around the spindle pulleys as shown

6. 

hardware and tighten the flange lock nut to secure the

7. 

