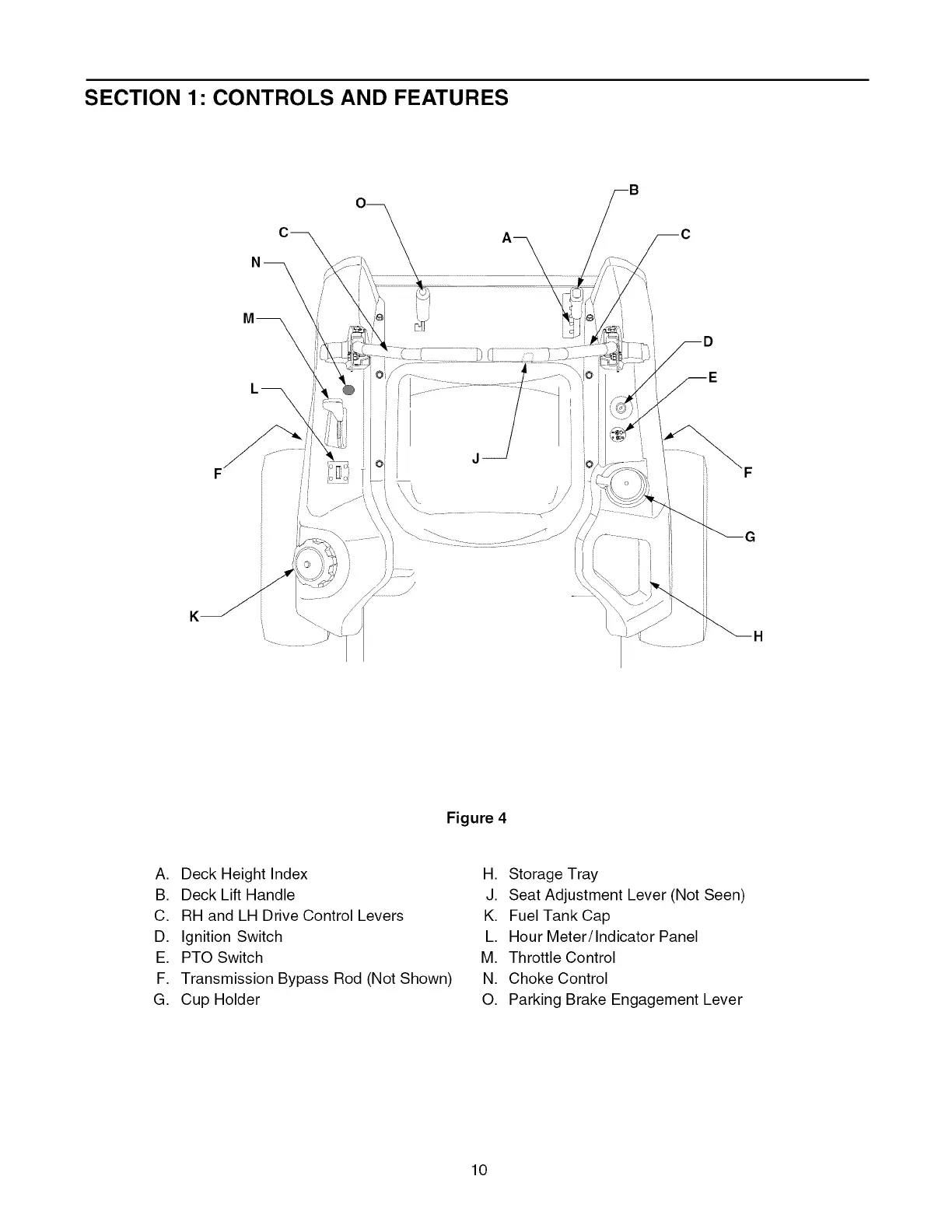

SECTION 1" CONTROLS AND FEATURES
K
Figure 4
A. Deck Height Index
B. Deck Lift Handle
C. RH and LH Drive Control Levers
D. Ignition Switch
E. PTO Switch
F. Transmission Bypass Rod (Not Shown)
G. Cup Holder
H. Storage Tray
J. Seat Adjustment Lever (Not Seen)
K. Fuel Tank Cap
L. Hour Meter/Indicator Panel
M. Throttle Control
N. Choke Control
O. Parking Brake Engagement Lever
10

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cub Cadet RZT Series and is the answer not in the manual?

Cub Cadet RZT Series Specifications

General IconGeneral
TransmissionHydrostatic
TypeZero-Turn
EngineKohler, Kawasaki, or Cub Cadet
Cutting Width42 inches
Fuel Capacity2.5-3.5 gallons
Turning RadiusZero-Turn
Deck MaterialFabricated Steel
Weight500-700 lbs
Warranty3-year
