35se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s
Removing/Installing the Inner Baffle
The inner flow-control baffle can be removed depending on
the mowing conditions. The baffle controls discharge and can
be removed for high-volume grasses and installed for precision
cutting.
Remove the carriage bolts and flange lock nuts that secure
Re-install the inner baffle for precision cutting and make 2.
sure the baffle is properly secured.
Brakes
The parking brake pedal should engage with moderate force. To
increase parking brake capacity, adjust brake cables at the brake
arms equally. Adjust the cable housing nuts one full turn and
check parking capacity. Repeat if parking brake does not hold.
The mower is equipped with drum brakes and will not normally
require maintenance. If they are not working properly, please
contact your service center.
Adjusting the Front Skirt
The front skirt can be raised or lowered depending on the
mowing conditions. The skirt has three settings; low, medium
more information. Raise the skirt to cut higher volumes of grass
and lower the skirt to increase grass lift for precision cutting.
Loosen — but do not remove — the nuts securing the skirt,
place in the proper position and then retighten the nut.
Repeat on the other side and be sure that both skirts are in 2.
the same position.
Flange Lock Nuts
Front Skirts

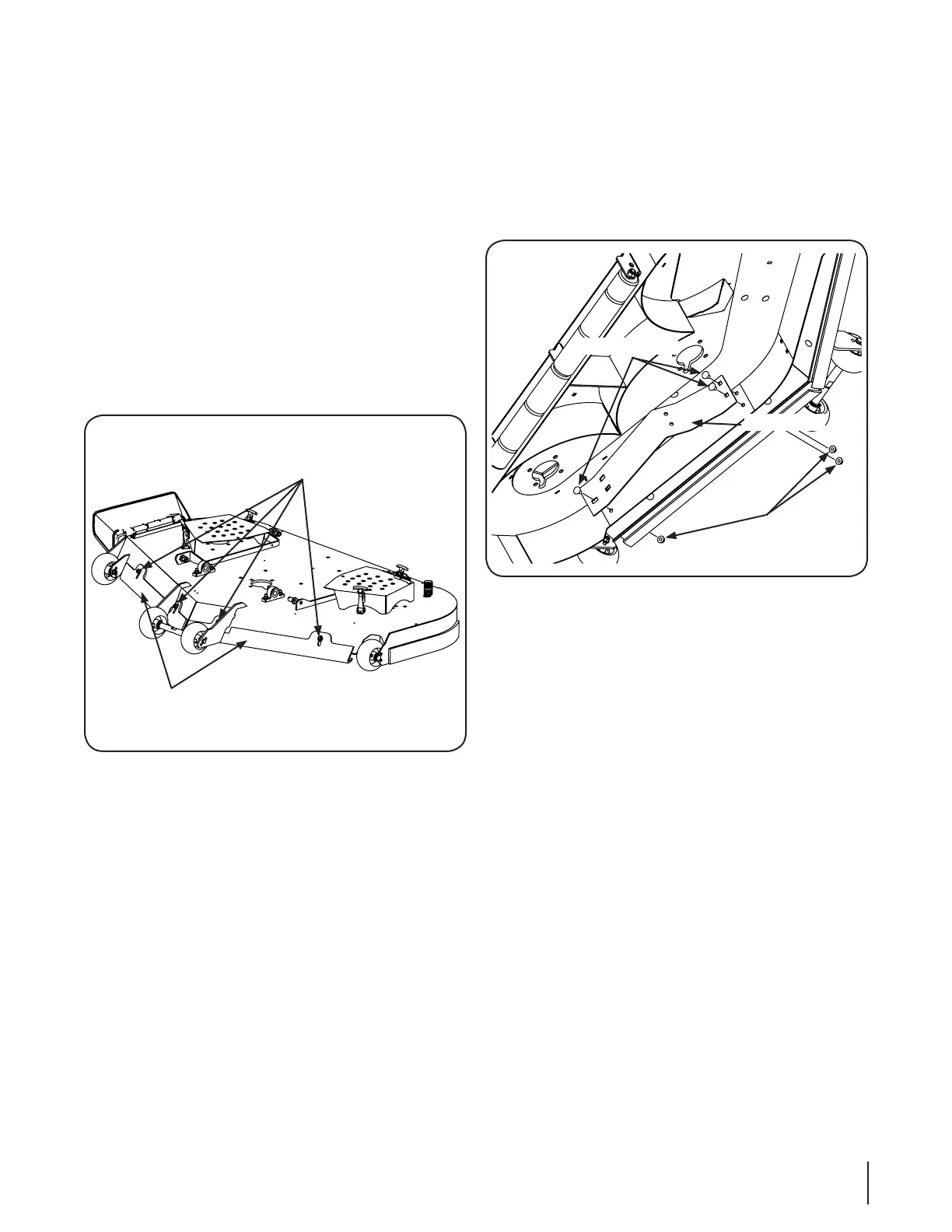

Figure 6-10
Flange
Lock
Nuts
Carriage Bolts
Inner Baffle
Figure 6-11
