Controls and Features
4
13
Cutting Height Adjustment Lever
One adjustment lever is located on the left rear wheel and one
is located on the left front wheel. Both levers have to be at the
same relative position to ensure a uniform cut. To adjust the
cutting height, refer to the “Assembly & Set-Up” Section.
Deck Wash
Your mower’s deck is equipped with a water port on its surface
as part of its deck wash system. Use the deck wash to rinse grass
clippings from the deck’s underside.
Side Discharge Chute
Your mower is shipped as a mulcher. To discharge the grass
clippings to the side instead, follow the instructions in the
“Assembly & Set-Up” section to attach the side discharge chute.
WARNING: Keep hands and feet away from the
chute area on cutting deck. Refer to warning label
on the unit.
Electric Start Ignition Switch (If Equipped)
The electric start ignition switch is located on the right side of
the upper handle. It is used only for the electric starter.
Blade Control
The blade control is attached to the upper handle of the mower.
Depress and squeeze it against the upper handle to operate the
unit. Release it to stop engine and blade.
WARNING: This blade control is a safety device.
Never attempt to bypass its operations.
Drive Control
The drive control is located on the underside of the upper handle
and is used to engage the drive. Squeeze it against the upper
handle to engage the drive; release it to slow down or stop
mower from propelling.
Speed Control
The speed control is located on the left side of the upper handle.
This control is used to select the forward speed of the mower.

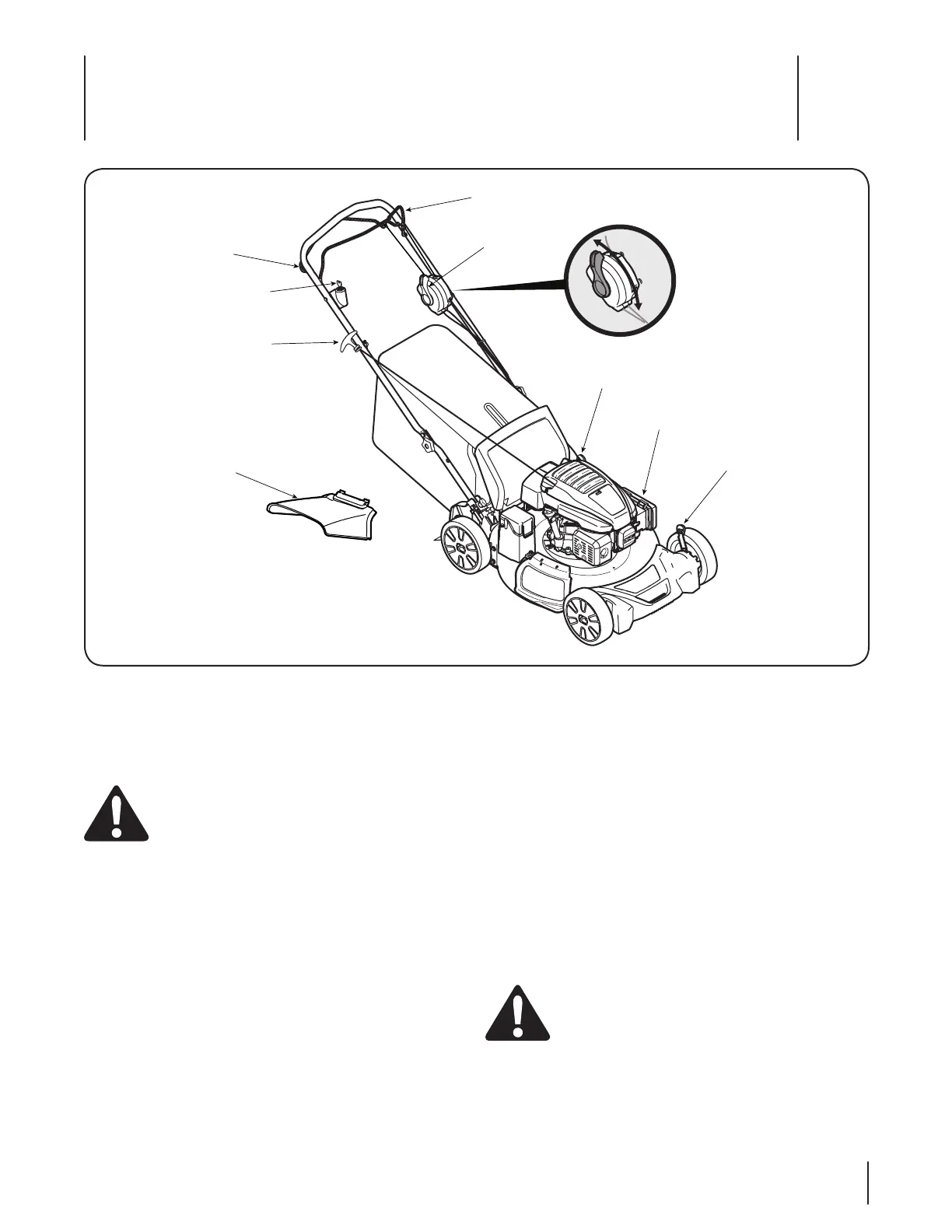

See Figure 4-1 inset.
IMPORTANT: Move the speed control only when the engine is
running. Changing the speed control setting with the engine off
can damage the mower.
Blade Control
Recoil Starter
Deck Wash
Cutting Height
Adjustment
Lever
Cutting Height
Adjustment
Lever
Side Discharge
Chute
Drive Control
Electric Start
Ignition Switch
Speed
Control
Figure 4-1
