Deck Lift Lever
the deck lift lever is used to change
the height of the cutting deck. To
use, move the lever to the left, then
place in the notch best suited for your
application.

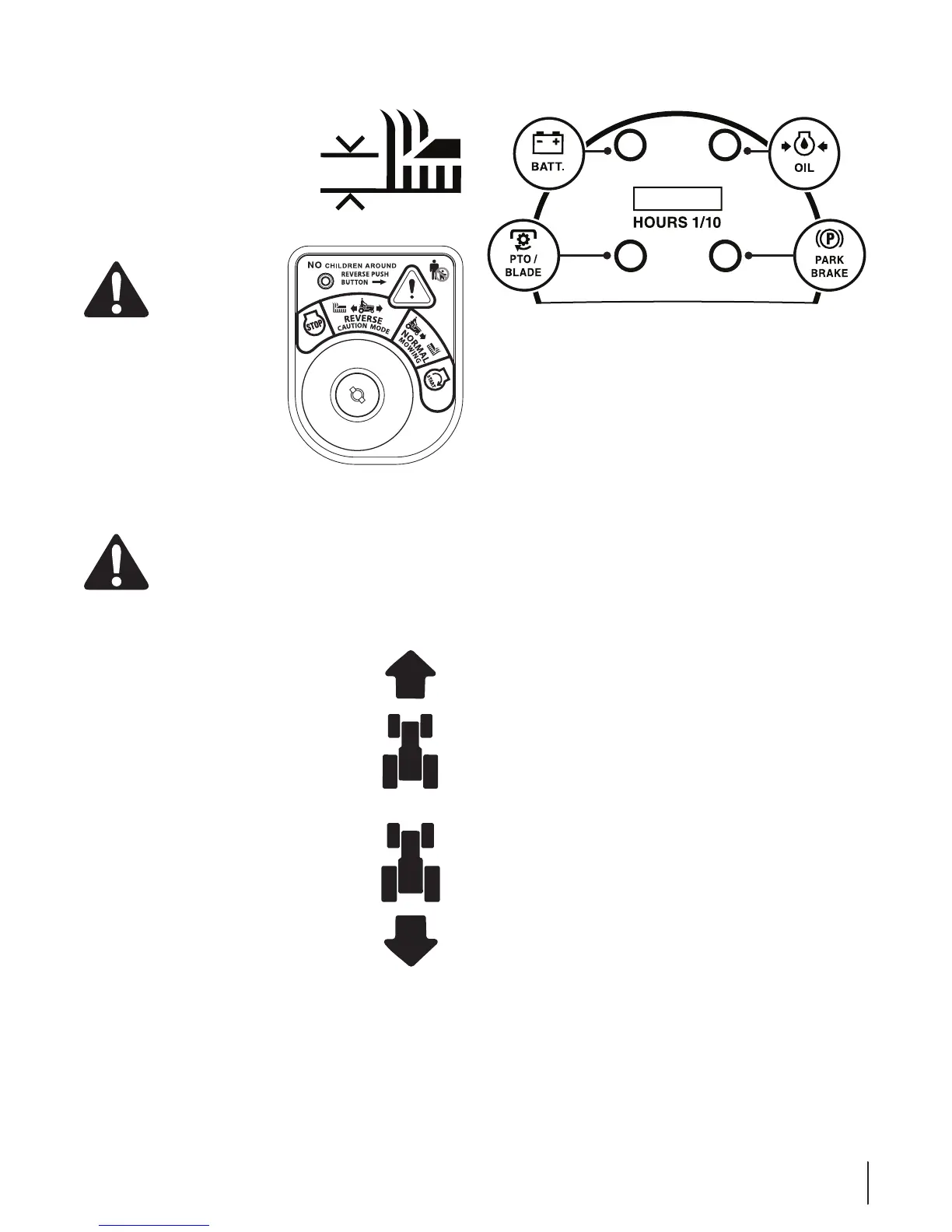

Ignition Switch Module
Never
leave a running
machine unattended.
Always disengage
engine and remove key to
prevent unintended starting.
To start the engine, insert the key
into the ignition switch and turn
clockwise to the START position.
Release the key into the
position once
the engine has fired.
To stop the engine, turn the ignition key counterclockwise to the
position.
CAUTION:
both Safety Interlock Switches and Starting The
detailed instructions regarding the Ignition Switch
Module and operating the tractor in REVERSE
.
Drive Pedal
The drive pedal is located on the right side
the drive pedal forward to cause the tractor
to travel forward. Ground speed is also
controlled with the drive pedal. The further
forward the pedal is pivoted, the faster the
tractor will travel. The pedal will return to its
Reverse Pedal
The reverse pedal is located on the right
side of the tractor along the running board.
Ground speed is also controlled with the
reverse pedal. The further downward the
pedal is pivoted, the faster the tractor will
travel. The pedal will return to its original
Cargo Net
The cargo net is located on the lower half of the dash and can be
used for storage.
Systems Indicator Monitor/Hour Meter LCD
seconds, after which it displays an hour glass and the hours
continually displays an hour glass and the hours of tractor
operation on its LCD.
NOTE:
whether the engine is started.
The Indicator Monitor will also remind the operator of
maintenance intervals for changing the engine oil. The LCD will
minutes, after every 50 hours of recorded operation elapse. The
this maintenance interval. Before the interval expires, change
the engine oil as instructed in the Maintenance & Adjustments
Brake
If the Brake light illuminates when attempting to start the
PTO (Blade Engage)
Oil (If Engine So Equipped)
cranking during start-up, but if it illuminates during operation,
while the engine is running, stop the tractor immediately and
Battery
It is normal for the Battery light to illuminate while the engine is
cranking during start-up, but if it illuminates during operation,
while the engine is running, the battery is in need of a charge
amperage. Charge the battery as instructed in the Service
section of this manual or have the charging system checked by
your Cub Cadet dealer.
13se c t i O n 4 — cO n t r O l s a n d fe a t u r e s
