22
Ref.
No.
Part No. Description
1 712-3025 Hex Jam Nut, 5/16-24
2 736-0425 Bell Wash. .325 x .930 x .045
3 756-0656 Pulley
4 736-3084 Fl. Wash. .510 x 1.120 x .060
5 712-0896 Hex Jam Nut , 1/4-28
6 782-7598 Belt Keeper
7 741-0600 Bearing
8 750-1050 Flange Spacer
9 682-0027A Idler Bracket Assembly
10 710-0299 Hex Cap Scr. 1/4-28 x 1.00 Gr. 5
11 732-0849A Extension Spring
12 741-0682A Bearing Sleeve
13 736-0570 Fl. Wash. .885 x 1.145 x.030
14 721-0329 Oil Seal
15 618-0253 Upper Housing Assembly
16 736-0616 Thrust Wash. .504 x .700 x .030
17 717-1487 Pinion Shaft, 10 T.
18 736-0314 Thr. Wash. 3/8 x .70 x .030
19 736-0569 Thr. Wash. .388 x .625 x .062
20 618-0252 Lower Housing Assembly
21 710-0642 Hex Scr. 1/2-20 x .75
22 782-7601A Cable Bracket
23 741-0674 Bearing
24 611-0066 Shaft Assembly
25 721-0325 Plug
26 717-1469 Gear 34 T.
27 711-1168 Output Shaft, 6 T.
28 741-0672 Flange Bearing
29 721-0329 Oil Seal
30 782-7595 Pivot Bracket
31 741-0324 Flange Bearing
32 736-0369 Flat Washer
33 741-0690 Bearing

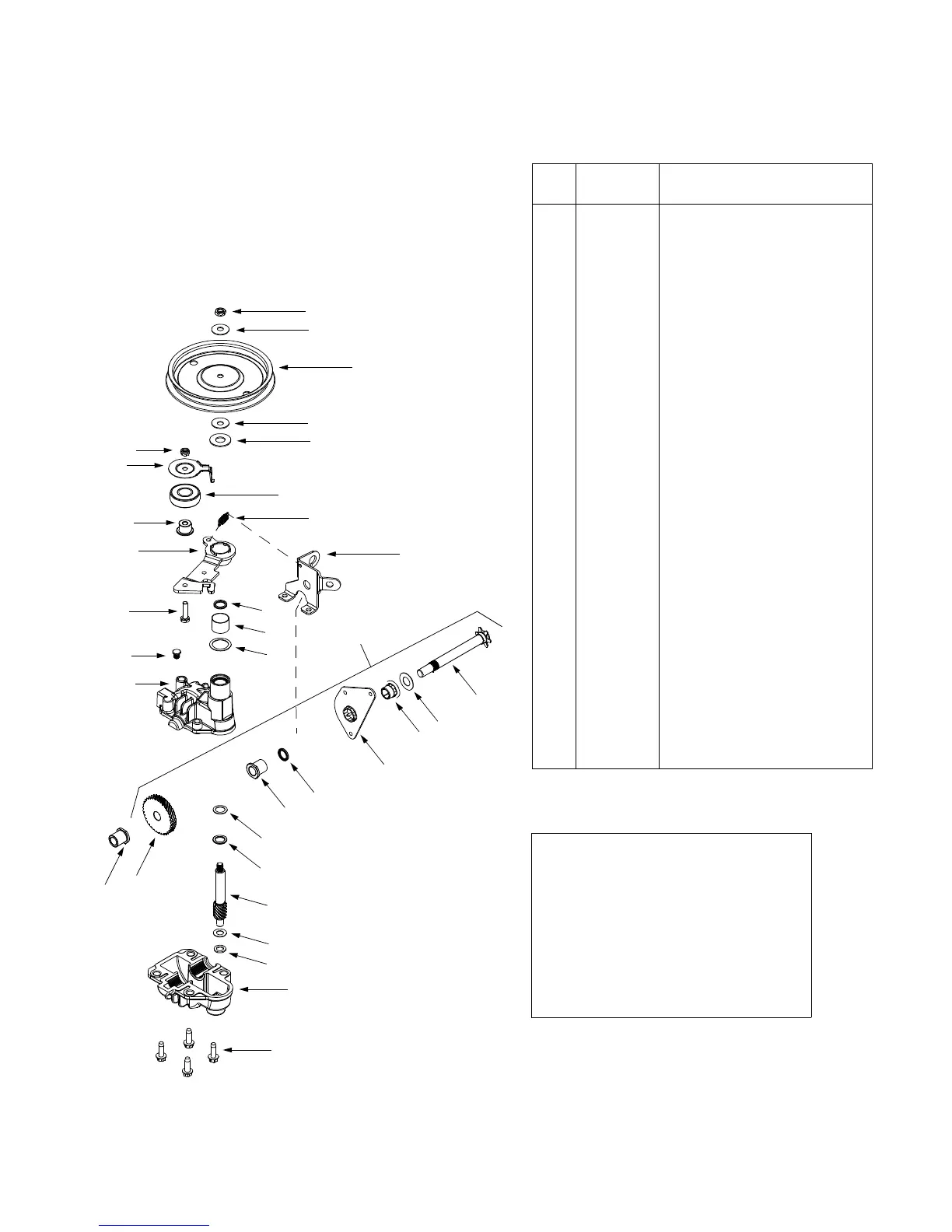

Transmission Assembly
1
2
3
2
4
5
6
7
11
8
9
22
14
12
13
10
25
15
24
27
32
31
30
29
28
26
23
33
16
17
18
19
20
21
IMPORTANT: For a proper working machine, use
Factory Approved Parts.
V-BELTS are specially designed to engage and
disengage safely. A substitute (non OEM) V-Belt can be
dangerous by not disengaging completely.
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Cub Yellow,
the part number to order would be 700-
xxxx-0716.
Cub Yellow: 0716
Powder Black: 0637
