8

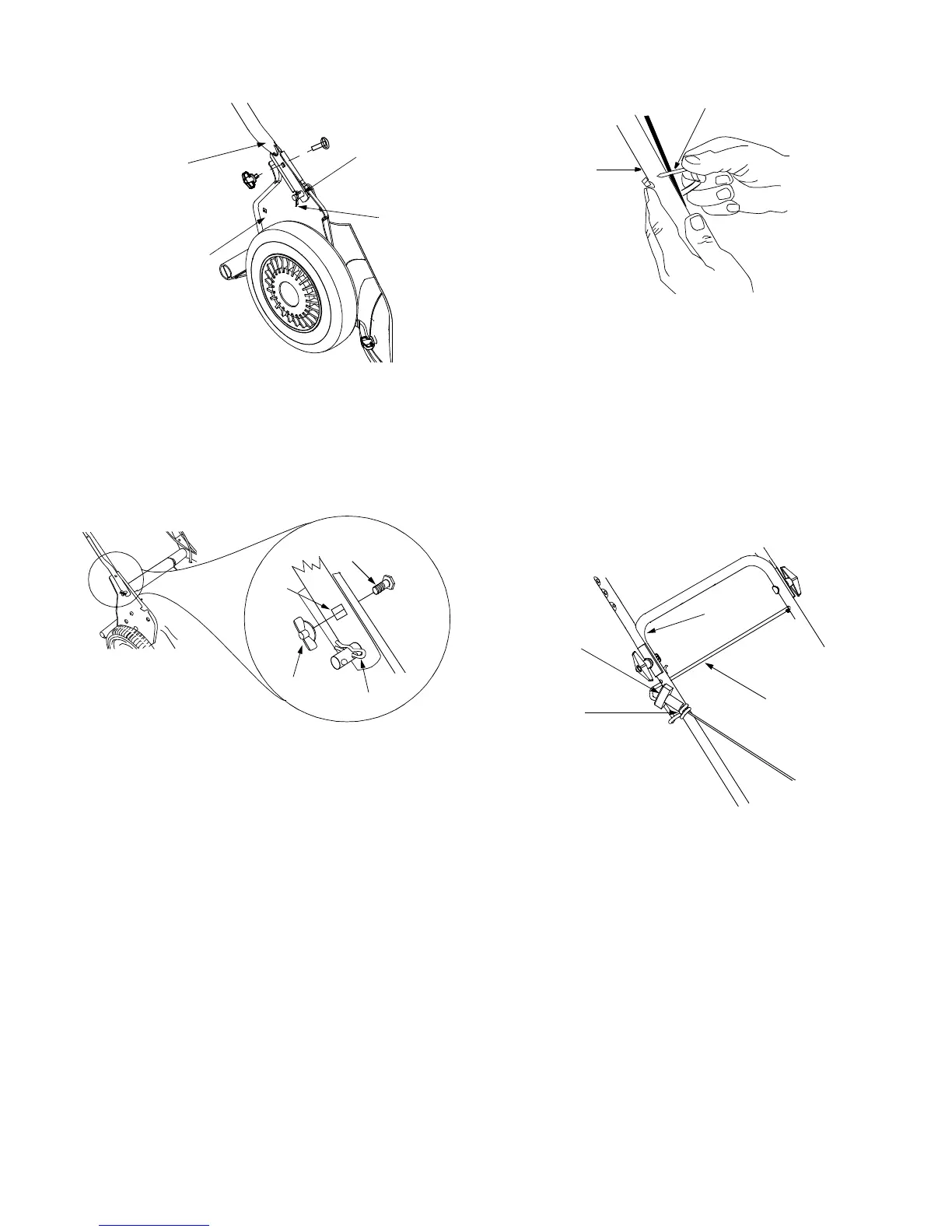

Figure 5
• After you have moved the hairpin clips, place one
carriage bolt (included in the hardware pack) in the
upper hole of the right handle mounting bracket
from the inside outward. See Figure 6. Secure with
one plastic wing nut. Repeat process on the left.
Figure 6
• Attach control cables to handle by inserting post of
cable ties into the holes on the lower handle. The
holes may be on either side of the handle. Pull
cable ties tight and cut off the extra. See Figure 7.
Figure 7
NOTE: Make sure the drive cable is routed around the
outside and above the lower handle so as not to
interfere with the grass bag attachment.
• The rope guide, which is connected to the support
rod, is located on the right side of the lower handle.
See Figure 8.
• With the spark plug wire disconnected and
grounded, hold the blade control handle against the
upper handle, and pull the starter rope out of the
engine. Release the blade control handle. Slip the
starter rope into the rope guide. See Figure 8.
Figure 8
Handle Mounting
Bracket
Lower
Handle
Hairpin
Clip
Inner Hole
Wing Nut
Carriage
Upper
Hole
Hairpin Clip
Bolt
Cable Tie
Lower
Handle
Starter
Rope
Rope
Guide
Lower
Handle
Support
Rod
