Assembly & Set-Up
3
11
3. The two hydrostatic transmissions are equipped with a
bypass valve that will allow you to manually move the
tractor short distances.
4. Engage the transmission bypass valves on each side of the
tractor by moving both levers to the left. The transmission
bypass valves (one for each the RH and LH transmission) are
located under the tractor on the front of each transmission
inside the rear wheels. See Fig. 3-2.

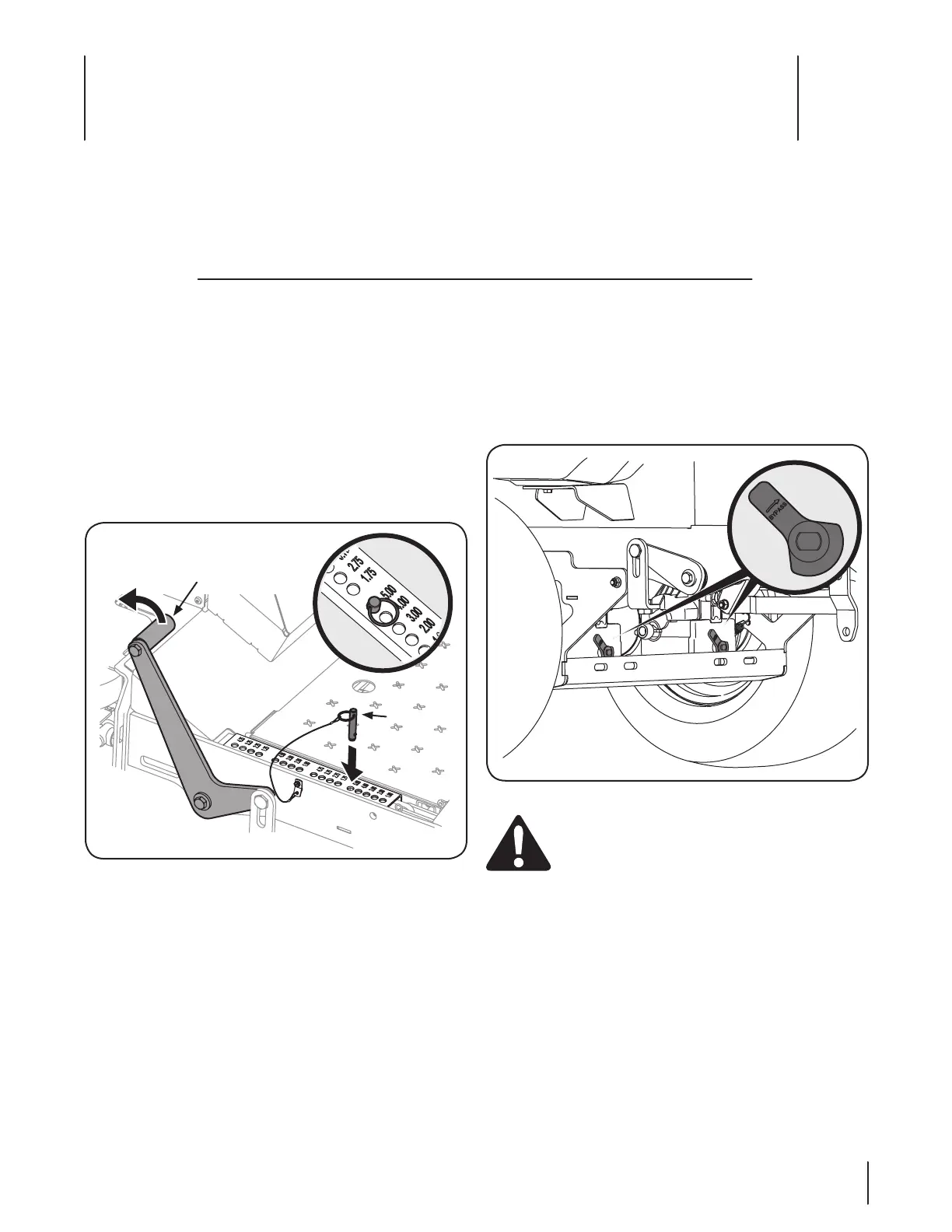

Figure 3-2
WARNING! Do not tow the tractor, even with the
bypass valves engaged. Serious transmission
damage will result from doing so.
5. Then carefully roll the tractor off the shipping pallet.
6. Rotate the levers to the right of the tractor to disengage
the transmission bypass valves.
7. Remove the deck wash system nozzle adapter from the
manual bag and store for future use. Cut the wire tie
holding the chute deflector up and discard any packing
material.
Tractor Preparation
NOTE: All references in this manual to the left or right side and
front or back of the tractor are from the operating position only.
Exceptions, if any, will be specified.
TOOLS NEEDED: Safety glasses, leather gloves, wire cutters.
1. Remove the upper crating material from the shipping
pallet, and cut any bands or tie straps securing the tractor
to the pallet.
2. Use the deck lift pedal to raise the deck to its highest
position and secure in place with the clevis pin attached to
the tractor. See Fig. 3-1.
Deck Lift Pedal
Clevis Pin
Figure 3-1
Contents of Crate
• One Zero-Turn Tractor • One ROPS Assembly • One Deck Wash Hose Coupler
• One Zero-Turn Tractor Operator’s
Manual
• One Engine Operator’s Manual
