Cub Cadet Time Saver i1042 - Controls and Features

Controlsand Features
4
f
B
\
C
E
D
P
F
H
J

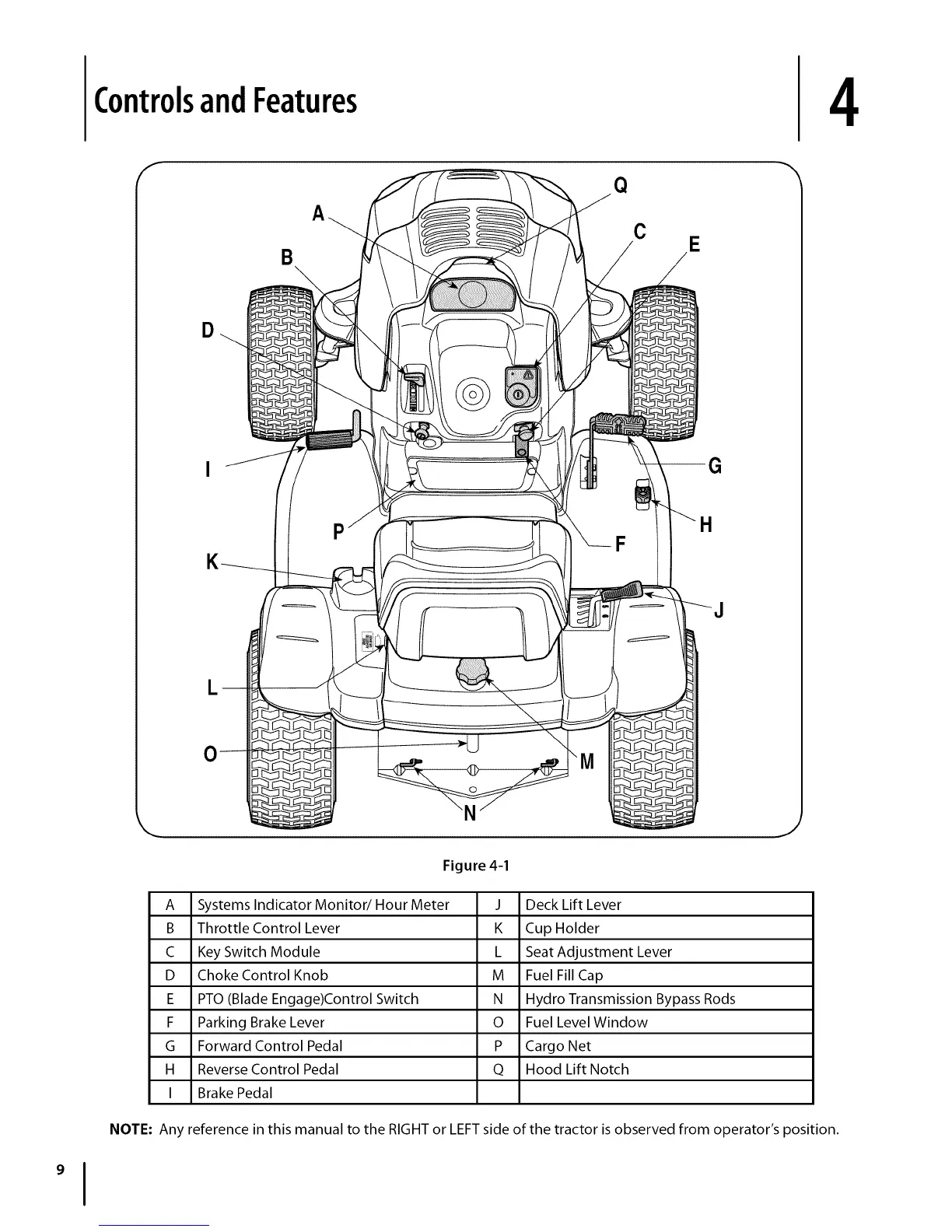

Figure 4-1
A Systems Indicator Monitor/Hour Meter
B Throttle Control Lever
C Key Switch Module
D Choke Control Knob
E PTO (Blade Engage)Control Switch
F Parking Brake Lever
G Forward Control Pedal
H Reverse Control Pedal
I Brake Pedal
J Deck Lift Lever
K Cup Holder
L Seat Adjustment Lever
M Fuel Fill Cap
N Hydro Transmission Bypass Rods
O Fuel Level Window
P Cargo Net
Q Hood Lift Notch
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.
