Cub Cadet XT Series - Assemble Remaining Bagger; Snap Upper Chute Support; Slide Left Side into Support; Align Cover Tabs and Insert Hinge Pin

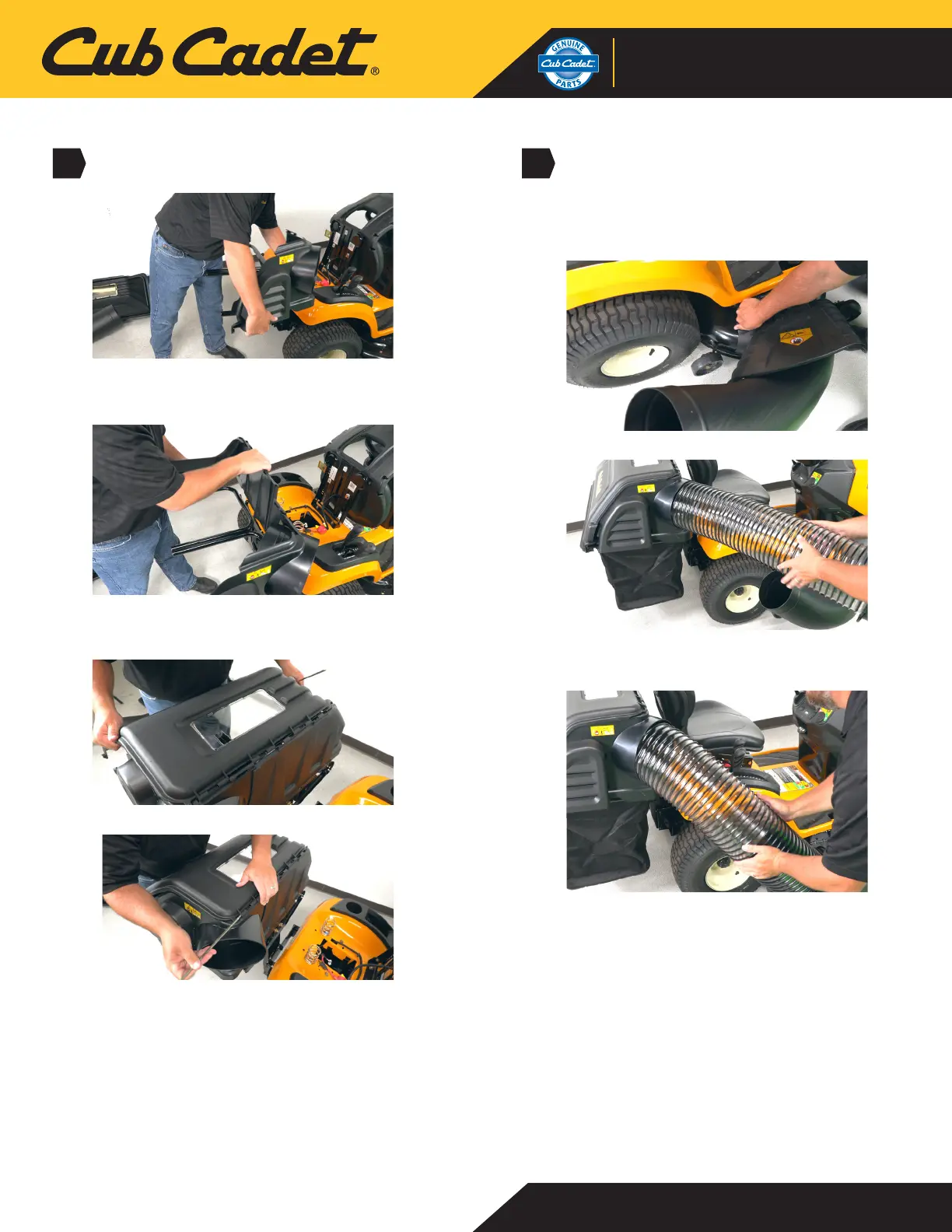

ASSEMBLE REMAINING BAGGER
a. Snap the upper chute support into place
b. Slide the left side into the upper chute support
using the tabs
c. Align the cover tabs with the chute support, slide
hinge pin in place
d. Add the bags
INSTALLING THE CHUTE
a. Install the boot rod mount using the 7/16” nuts
(2 wrenches are used)
b. Slide the boot rod into the deck, secure the boot with
a wing knob
c. Slide the chute into the opening, turn counterclock-
wise until secure
XT™ SERIES BAGGER
ASSEMBLY GUIDE
5 6
