Cub Cadet Yanmar Lx450 User Manual

Lx450Lx Series
10
Copyright 2011 Cub Cadet Yanmar LLC

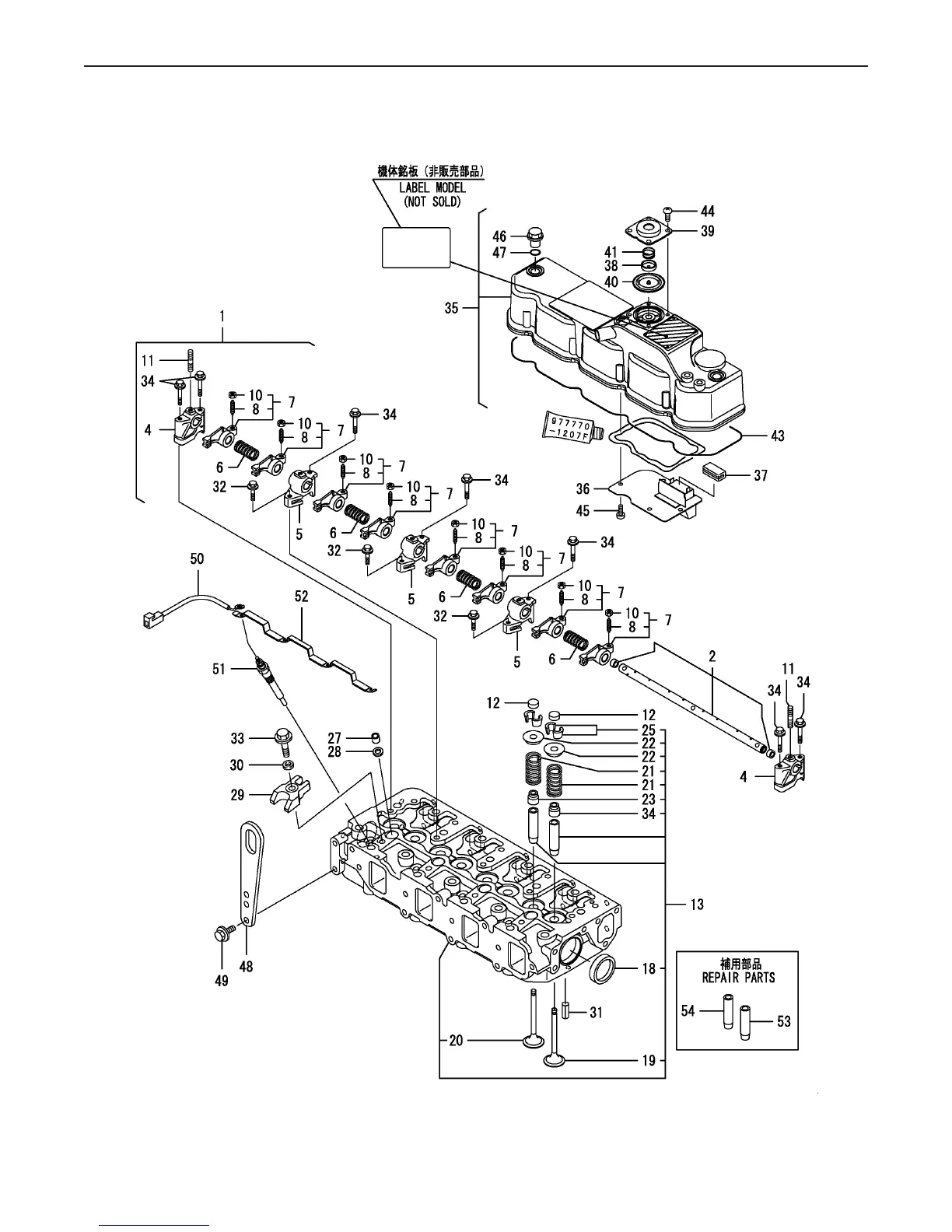

Fig 4. Cylinder Head & Bonnet
Ref.
Part Number Description Qty
1 CY-129601-11241 SHAFT ASSY, ROCKER 1
2 CY-129601-11251 SHAFT, ROCKER ARM 1
4 CY-119802-11260 SUPPORT, ARM A 2
5 CY-119802-11270 SUPPORT, ARM B 3
6 CY-129150-11280 SPRING, SHAFT 4
7 CY-129004-11650 ARM KIT, ROCKER 8
8 CY-129150-11230 SCREW, VALVE ADJUST 8
10 CY-129150 -11750 NUT, M8 8
11 CY-26226-080182 STUD M 8X 18 PLATED 3
12 CY-129150 -11370 CAP, VALVE 8
13 CY-129604-11700 HEAD ASSY, CYLINDER 1
18 CY-27241-400000 PLUG 40 2
19 C Y-12 9 0 05 -1110 0 VALVE, INTAKE 4
20 C Y-12 910 0 -11112 VALVE, EXHAUST 4
21 C Y-12 97 95 -1112 0 SPRING, VALVE 8
22 C Y-12 97 95 -1118 0 RETAINER, SPRING 8
23 CY-121400-11340 SEAL, VALVE STEM 4
24 CY-124460-11340 SEAL, VALVE STEM 4
25 CY-27310-080001 COTTER, 8 8
27 CY-119802-11870 PROTECTOR, NOZZLE 4
28 CY-119625-11880 SEAT, NOZZLE 4
29 CY-129004-11900 RETAINER, NOZZLE 4
30 CY-120270-54410 WASHER, INJECTOR 4
Fig.4. CYLINDER HEAD & BONNET
0CNP5-G38200
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
(1)Repair part.
0CNP5-G38200
4. CYLINDER HEAD & BONNET
(F)=
(E)=
(D)=
(C)=
(B)=4TNV88-BLRG1
(A)=4TNV88-ULRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
SHAFT ASSY, ROCKER129601-1124111 11
SHAFT, ROCKER ARM129601-1125122 11
SUPPORT, ARM A119802-1126024 22
SUPPORT, ARM B119802-1127025 33
SPRING, SHAFT129150-1128026 44
A
RM KIT, ROCKER129004-1165027 88
SCREW, VALVE ADJUST129150-1123038 88
NUT, M8129150-11750310 88
STUD M 8X 18 PLATED26226-080182211 33
CAP, VALVE129150-11370112 88
HEAD ASSY, CYLINDER129604-11700113 11
PLUG 4027241-400000218 22
VALVE, INTAKE129005-11100219 44
VALVE, EXHAUST129100-11112220 44
SPRING, VALVE129795-11120221 88
RETAINER, SPRING129795-11180222 88
SEAL, VALVE STEM121400-11340223 44
SEAL, VALVE STEM124460-11340224 44
COTTER, 827310-080001225 88
PROTECTOR, NOZZLE119802-11870127 44
SEAT, NOZZLE119625-11880128 44
RETAINER, NOZZLE129004-11900129 44
WASHER, INJECTOR120270-54410130 44
SPRING PIN 6X1222351-060012131 22
BOLT M 8X 25 PLATED26106-080252132 33
BOLT M 8X 35 PLATED26106-080352133 44
BOLT M 8X 50 PLATED26106-080502134 77
BONNET CMP129652-11350135 11
PLATE, BAFFLE129004-03010236 11
BAFFLE, BREATHER129150-03070237 11
PLATE, CENTER119802-03110238 11
COVER, DIAPHRAGM119802-03121239 11
DIAPHRAGM119802-03130240 11
SPRING, DIAPHRAGM119802-03141241 11
GASKET, BONNET129601-11310243 11
SCREW, M5X1022857-500100244 44
SCREW, M5X1022857-500100245 44
KNOB124160-11360146 33
O-RING 1A P-12.024311-000120147 33
LIFTER, ENGINE129900-07900148 11
BOLT M 8X 16 PLATED26106-080162149 22
HARNESS, GLOW PLUG119803-77830150 11
PLUG, GLOW129008-77800151 44
CONNECTOR, GLOW PLUG129604-77821152 11
1GUIDE, VALVE120130-11860153 44
1GUIDE, EXHAUST VALVE129150-11810154 44
(C)Copy Rights YANMAR CO.,LTD.
