Cub Cadet Yanmar Lx450 - Rear Axle Shaft Assembly

Lx450Lx Series
124
Copyright 2011 Cub Cadet Yanmar LLC

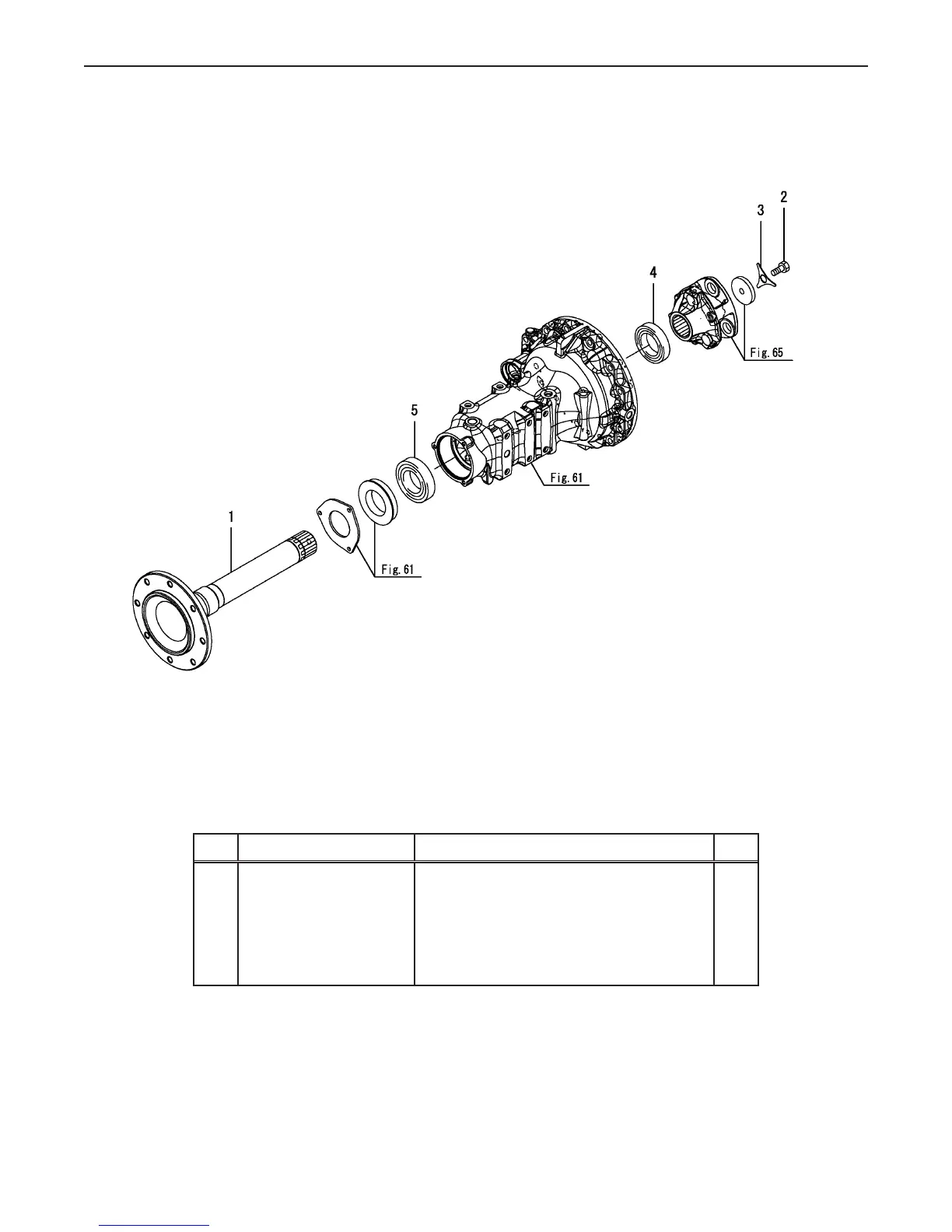

Fig 66. Rear Axle Shaft
Ref.
Part Number Description Qty
1 CY-1A8275-34110 SHAFT, REAR AXLE 2
2 CY-194640-34140 BOLT M12X30 2
3 CY-198212-34150 WASHER,REAR AXLE 2
4 CY-24101-060114 BALL BEARING 2
5 CY-24101-062114 BALL BEARING 2
Fig.66. REAR AXLE SHAFT
0CNP5-G37900
0CNP5-G37900
66. REAR AXLE SHAFT
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
SHAFT, REAR AXLE1A8275-3411011 222
BOLT M12X30194640-3414012 222
WASHER,REAR AXLE198212-3415013 222
BALL BEARING24101-06011414 222
BALL BEARING24101-06211415 222
(C)Copy Rights YANMAR CO.,LTD.
