Cub Cadet Yanmar Lx450 - Drawbar Hitch Assembly

Lx450Lx Series
Ref.
Part Number Description Qty
1 CY-198240-12650 BOLT M14X 28 4
2 CY-195230-17260 PIN 22, SNAP 1
3 CY-1A8275-75110 HITCH,DRAWBAR 1
4 CY-1A8275-75430 PIN,HITCH 1
5 CY-1A8275-75530 BRACKET,DRAWBAR 1
6 CY-26106-120252 BOLT M12X 25 PLATED 4
Copyright 2011 Cub Cadet Yanmar LLC
211

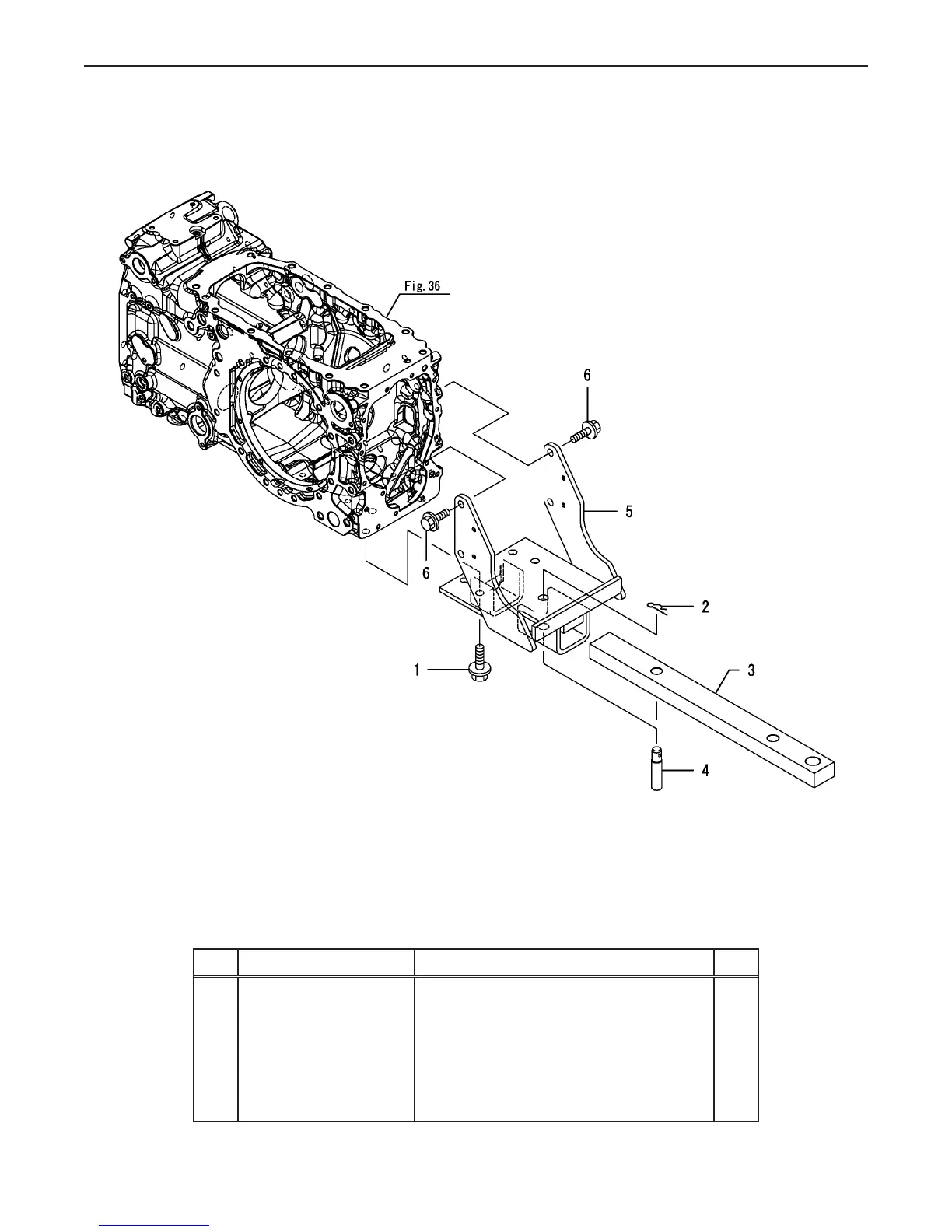

Fig 128. Drawbar Hitch
Fig.128. DRAWBAR HITCH
0CNP5-G37900
0CNP5-G37900
128. DRAWBAR HITCH
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
BOLT M14X 28198240-1265011 444
PIN 22, SNAP195230-1726012 111
HITCH,DRAWBAR1A8275-7511013 111
PIN,HITCH1A8275-7543014 111
BRACKET,DRAWBAR1A8275-7553015 111
BOLT M12X 25 PLATED26106-12025216 444
(C)Copy Rights YANMAR CO.,LTD.
