Cub Cadet Yanmar Lx450 - Rear Remote Kit Components

Lx450Lx Series
222
Copyright 2011 Cub Cadet Yanmar LLC

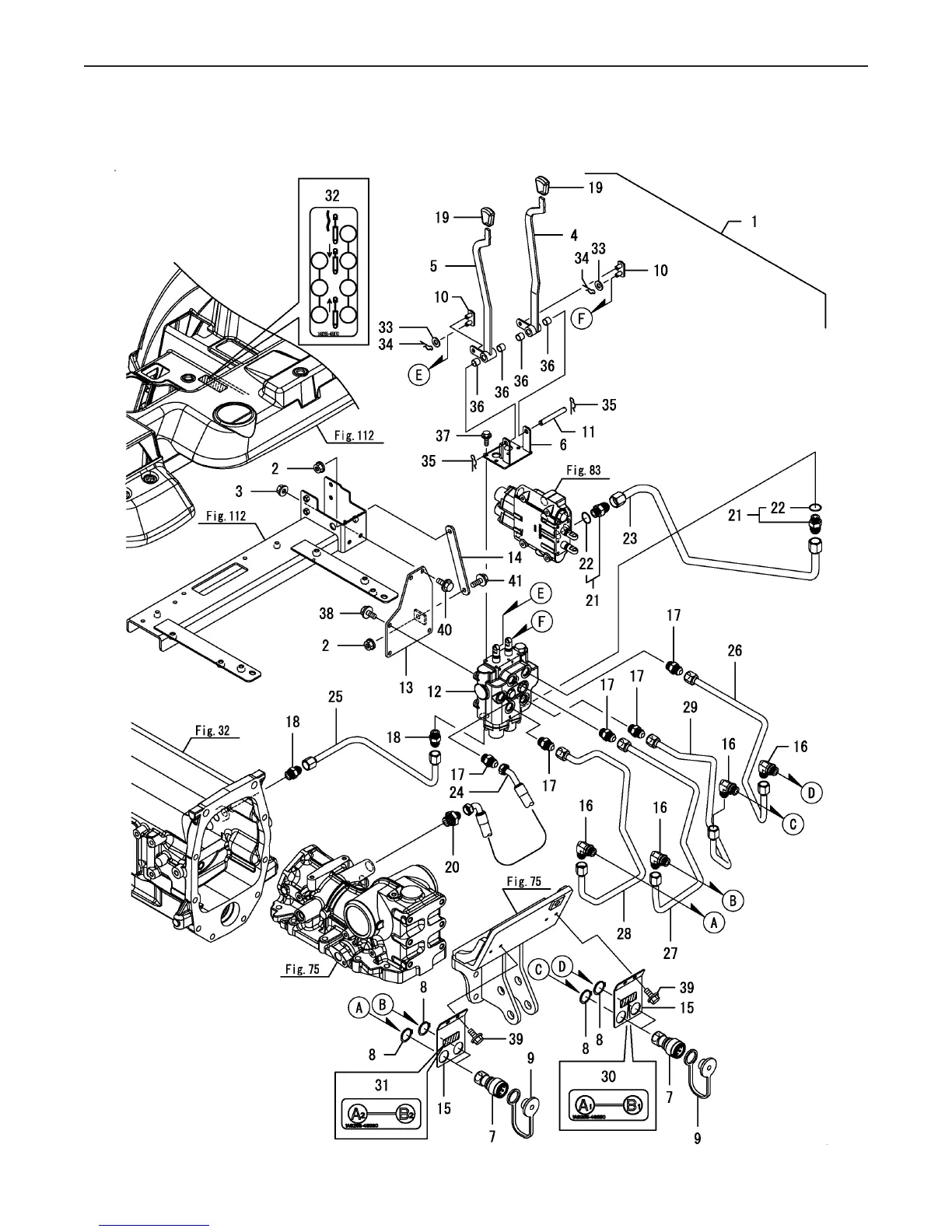

Fig 138. Rear Remote Kit
Fig.138. REAR REMOTE KIT
0CNP5-G37900
0CNP5-G37900
138. REAR REMOTE KIT
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
REMOTE KIT, REAR1A8265-4600011 111
NUT W/WASHER 8194990-2214022 222
NUT W/WASHER 8194990-2214023 222
LEVER ASSY 11A8265-4611024 111
LEVER ASSY 21A8265-4616025 111
STAY ASSY, LEVER1A8265-4620026 111
COUPLER,QUICK 1/2F1A8265-4625027 444
SNAP RING198240-4626028 444
DUST PLUG1A8265-4627029 444
LINK ASSY1A8265-46350210 222
PIN, LEVER1A8265-46390211 111
SCV ASSY,1A8250-46600212 111
STAY ASSY, VALVE1A8265-46700213 111
STAY A1A8265-46750214 111
STAY, COUPLER1A8265-46840215 222
ELBOW 8-81A8160-46910216 444
CONNECTOR1A8160-46960217 555
CONNECTOR1A8160-46960218 222
KNOB194273-47910219 222
CONNECTOR UNF8-G1/21A8265-48290220 111
FITTING/HYD, 3/4-7/81A8250-48350221 222
O-RING 8-1194464-45930322 111
HP PIPE(SCV-P1A8265-48460223 111
HP HOSE(C1A8265-48480224 111
HP PIPE(SCV-T1A8265-48500225 111
PIPE(SCV B11A8265-48770226 111
PIPE(SCV B21A8265-48790227 111
PIPE(SCV A21A8265-48810228 111
PIPE(SCV A11A8265-48830229 111
LABEL, SCV PORT 11A8265-48950230 111
LABEL, SCV PORT 21A8265-48960231 111
LABEL,R REMOTE LEVE1A8265-48970232 111
WASHER 8, POLISHED22137-080000233 222
SNAP PIN (JASO 8)22372-080000234 222
SNAP PIN 1022372-100000235 222
BUSH 10X10,DRY24550-010100236 444
BOLT M 6X 16 PLATED26106-060162237 444
BOLT M 8X 12 PLATED26106-080122238 333
BOLT M 8X 16 PLATED26106-080162239 444
BOLT M 8X 20 PLATED26106-080202240 222
BOLT M 8X 20 PLATED26106-080202241 222
(C)Copy Rights YANMAR CO.,LTD.
Ref.
Part Number Description Qty
1 CY-1A8265-46000 REMOTE KIT, REAR 1
2 CY-194990-22140 NUT W/WASHER 8 2
3 CY-194990-22140 NUT W/WASHER 8 2
4 CY-1A8265-46110 LEVER ASSY 1 1
5 CY-1A8265-46160 LEVER ASSY 2 1
6 CY-1A8265-46200 STAY ASSY, LEVER 1
7 CY-1A8265-46250 COUPLER,QUICK 1/2F 4
8 CY-198240-46260 SNAP RING 4
9 CY-1A8265-46270 DUST PLUG 4
10 CY-1A8265-46350 LINK ASSY 2
11 CY-1A8265-46390 PIN, LEVER 1
12 CY-1A8250-46600 SCV ASSY, 1
13 CY-1A8265-46700 STAY ASSY, VALVE 1
14 CY-1A8265- 46750 STAY A 1
15 CY-1A8265-46840 STAY, COUPLER 2
16 CY-1A8160-46910 ELBOW 8-8 4
17 CY-1A8160-46960 CONNECTOR 5
18 CY-1A8160-46960 CONNECTOR 2
19 CY-194273-47910 KNOB 2
20 CY-1A8265-48290 CONNECTOR UNF8-G1/2 1
21 CY-1A8250-48350 FITTING/HYD, 3/4-7/8 2
