Lx450Lx Series
48
Copyright 2011 Cub Cadet Yanmar LLC

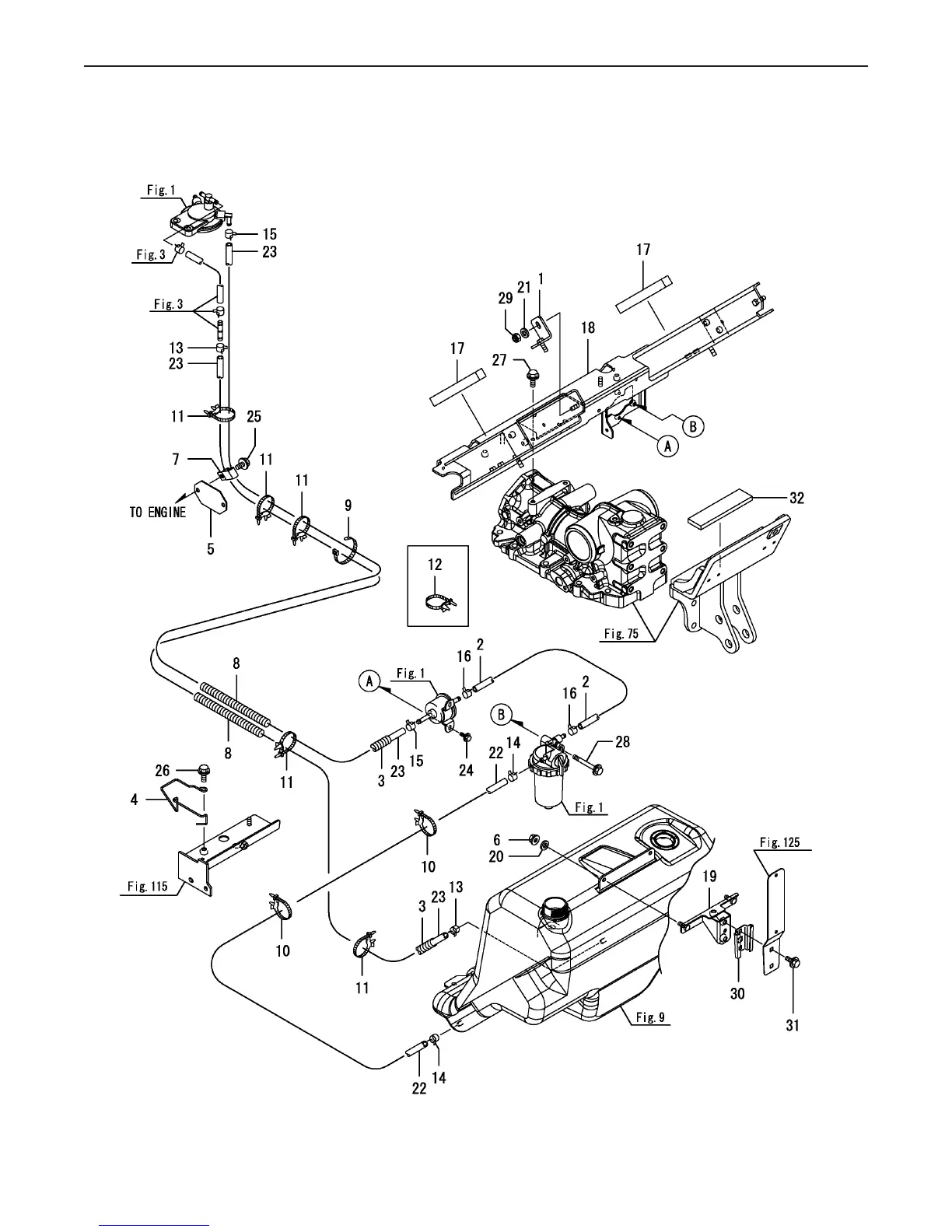

Fig 10. Tank Parts
Fig.10. TANK PARTS
0CNP5-G37900
0CNP5-G37900
10. TANK PARTS
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
A
NGLE ASS
Y
, TANK1A8250-0425011 222
HOSE, FUEL1A8250-0443012 111
TUBE, CORRUGATE 131A8250-0428013 222
CLAMP, HOSE1A8250-0487014 111
COVER, HOUSING1A8250-2118015 111
NUT W/WASHER 8194990-2214016 222
CLAMP, PIPE1A7130-4811017 111
TUBE, CORRUGATE 131A8250-0428018 222
BAND, REPEAT1A8300-5121019 111
BAND194680-51670110 222
BAND194680-51670111 555
BAND194680-51670112 111
CLIP, HOSE114270-59010113 222
CLIP, HOSE114270-59010114 222
CLIP, HOSE114270-59010115 222
CLIP, HOSE114270-59010116 222
SEAL,FENDER1A8250-63890117 222
BRACKET ASSY, TANK1A8250-63800118 111
BRACKET, SMV ASSY1A8250-65870119 111
WASHER 822157-080000120 222
WASHER 822157-080000121 222
HOSE 7.3* 55023980-730550122 111
HOSE, 7.3X170023980-731700123 222
BOLT M 6X 12 PLATED26106-060122124 222
BOLT M 8X 16 PLATED26106-080162125 222
BOLT M 8X 16 PLATED26106-080162126 111
BOLT M 8X 20 PLATED26106-080202127 222
BOLT M 8X 70 PLATED26106-080702128 111
U-NUT M 826347-080002129 222
HOLDER, SMV1A7882-85630130 111
BOLT M 8X 20 PLATED26106-080202131 222
CUSHION,TANK1A8250-04290132 111
