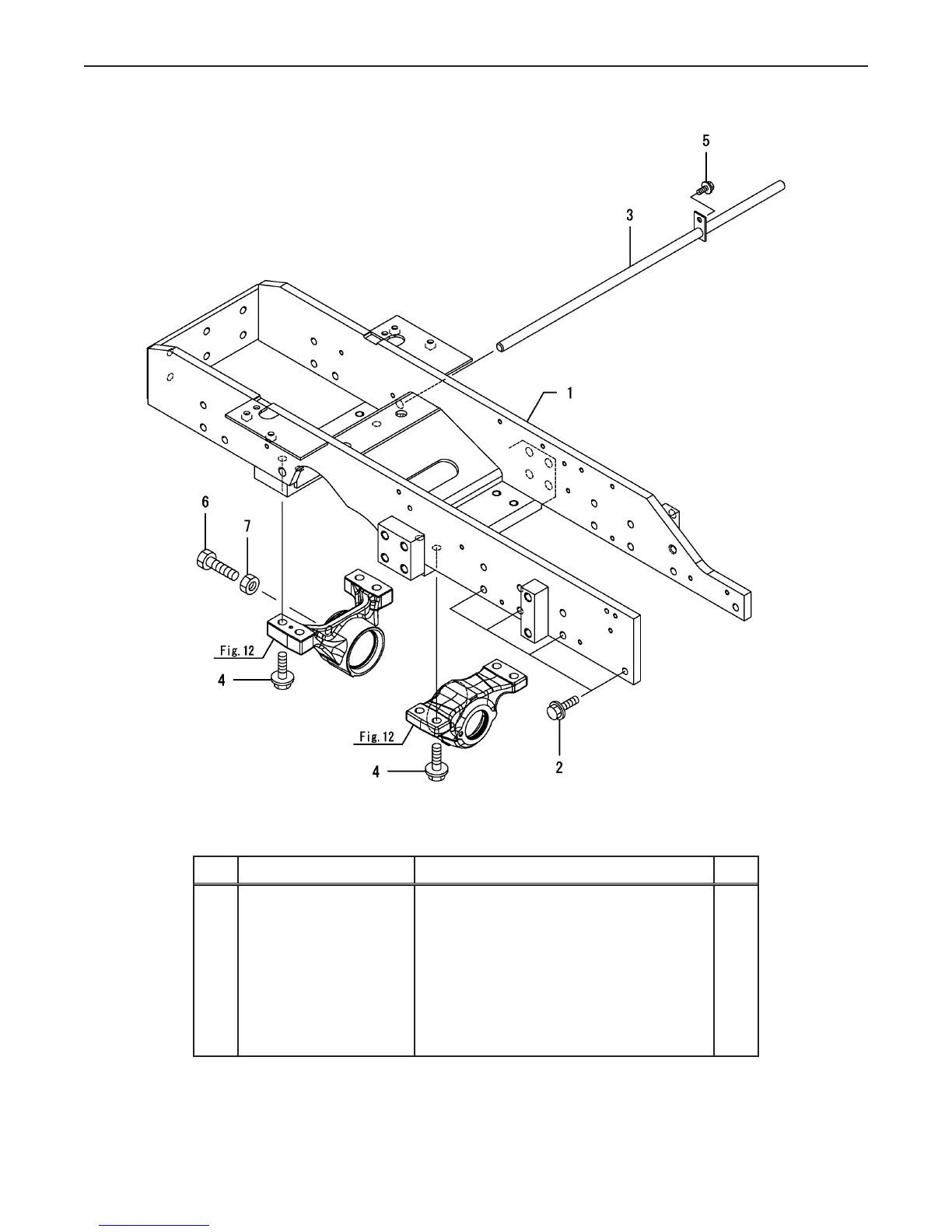

Fig 11. Front Axle Bracket
Ref.
Part Number Description Qty
1 C Y-1A 82 50 -1110 0 BRACKET ASSY, F AXLE 1
2 CY-1A8160-11520 BOLT, M12X34 14
3 CY-1A8275-17450 GUARD, PST CYLINDER 1
4 CY-1A6680-85980 BOLT 14*45 8
5 CY-26106-080162 BOLT M 8X 16 PLATED 1
6 CY-26116-160604 BOLT M16X 60 PLATED 1
7 CY-26716-160002 NUT M16 1
Fig.11. FRONT AXLE BRACKET
0CNP5-G37900
0CNP5-G37900
11. FRONT AXLE BRACKET
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
BRACKET ASSY, F AXLE1A8250-1110011 111
BOLT, M12X341A8160-1152012 141414
GUARD, PST CYLINDER1A8275-1745013 111
BOLT 14*451A6680-8598014 888
BOLT M 8X 16 PLATED26106-08016215 111
BOLT M16X 60 PLATED26116-16060416 111
NUT M1626716-16000217 111
(C)Copy Rights YANMAR CO.,LTD.
