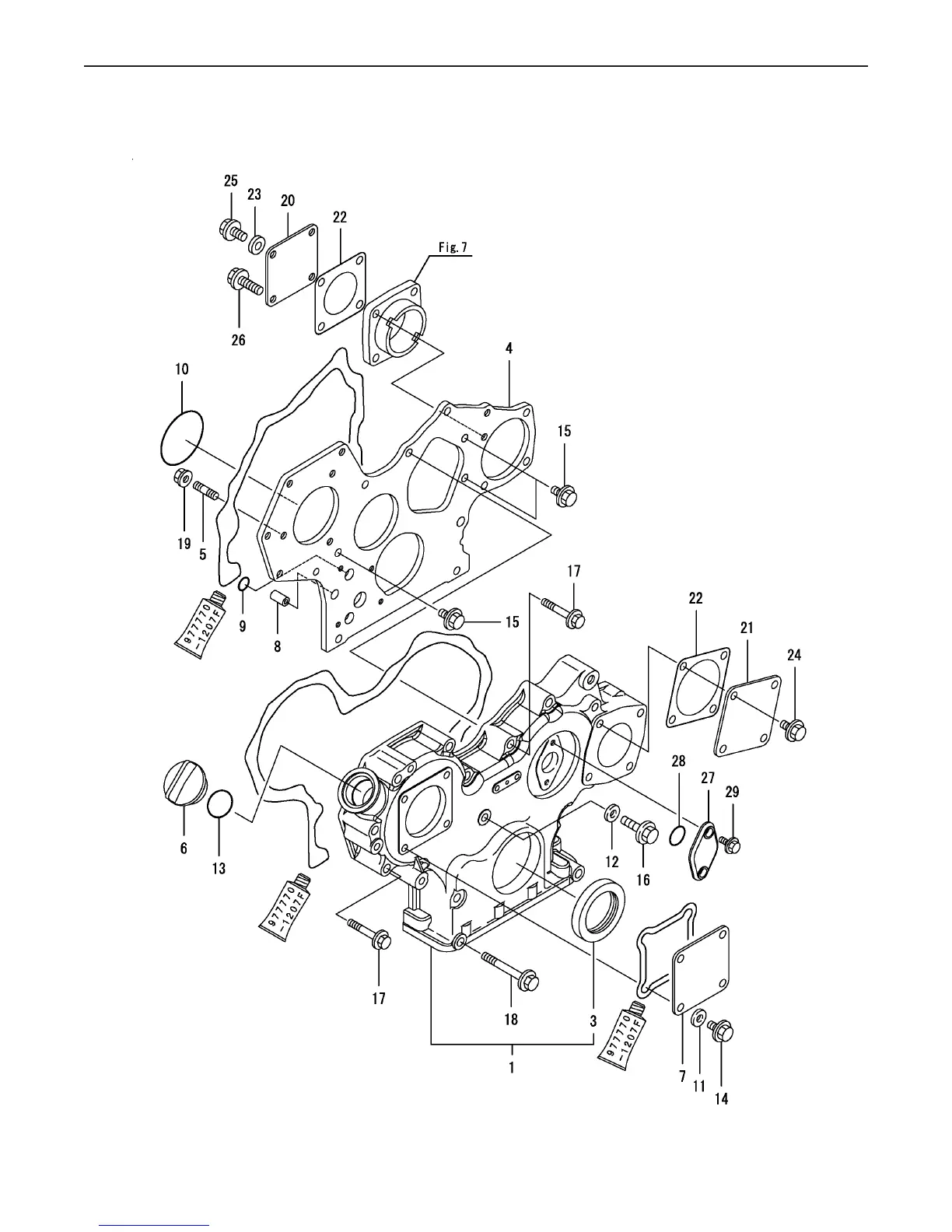

Fig 2. Gear Housing
Fig.2. GEAR HOUSING
0CNP5-G38200
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38200
2. GEAR HOUSING
(F)=
(E)=
(D)=
(C)=
(B)=4TNV88-BLRG1
(A)=4TNV88-ULRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
HOUSING ASSY, GEAR729008-0150011 11
SEAL, OIL119934-0180023 11
FLANGE, GEAR CASE129008-0152014 11
STUD, M8X25119802-0156115 33
COVER, FILLER124160-0175116 11
COVER, PUMP124240-0187117 11
PIPE, KNOCK129795-0195018 22
O-RING P16119609-3204019 22
O-RING, F.I.PUMP121850-51960110 11
SEAL WASHER 8S22190-080002111 44
SEAL WASHER 8S22190-080002112 11
O-RING 1A P-32.024311-000320113 11
BOLT M 8X 16 PLATED26106-080162114 44
BOLT M 8X 16 PLATED26106-080162115 33
BOLT M 8X 30 PLATED26106-080302116 11
BOLT M 8X 55 PLATED26106-080552117 1010
BOLT M 8X 85 PLATED26106-080852118 33
NUT, M826306-080002119 33
COVER, PUMP124240-01871120 11
COVER, PUMP124240-01871121 11
GASKET, PUMP124240-01883122 22
SEAL WASHER 8S22190-080002123 11
BOLT M 8X 16 PLATED26106-080162124 44
BOLT M 8X 20 PLATED26106-080202125 11
BOLT M 8X 30 PLATED26106-080302126 33
COVER, TACHOMETER121023-01551127 11
O-RING 1A S-24.024341-000240128 11
BOLT M 6X 16 PLATED26106-060162129 22
