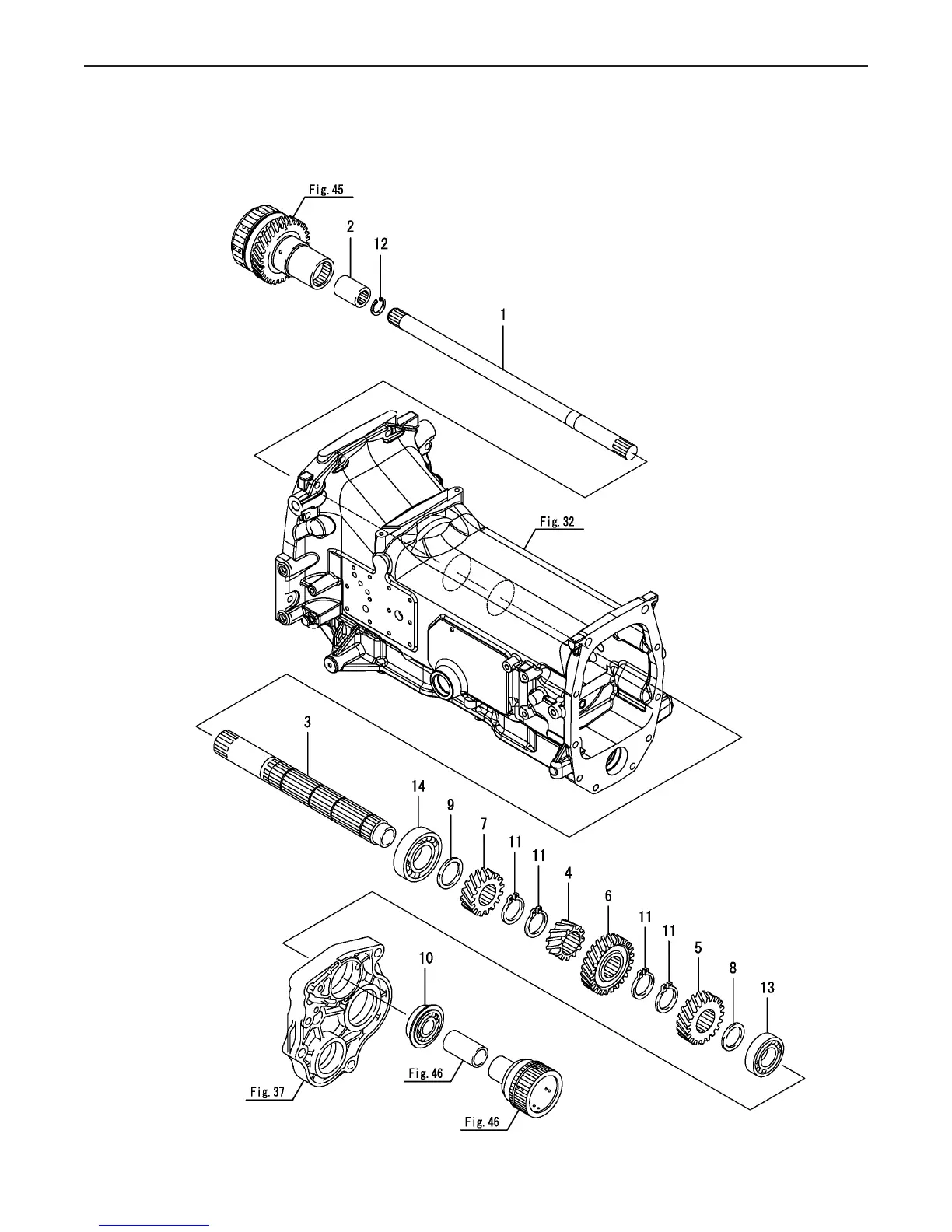

Fig.41. MAIN SHAFT
0CNP5-G37900
0CNP5-G37900
41. MAIN SHAFT
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
SHAFT, PTO DRIVE1A8275-2513011 111
COUPLING 13*16/32198212-2515012 111
SHAFT, MIN198212-2521013 111
GEAR 21198212-2522014 111
GEAR 31, MAIN198212-2524015 111
GEAR 36198535-2526016 111
GEAR 27, MAIN198212-2529017 111
SPACER 30X40X2194312-2547018 111
SPACER 35X45X2194250-2552019 111
BEARING 63/22NR198212-26090110 111
CIRCLIP 3422242-000340111 444
CIRCLIP 1922252-000190112 111
BALL BEARING24101-062064113 111
BALL BEARING24101-062074114 111
