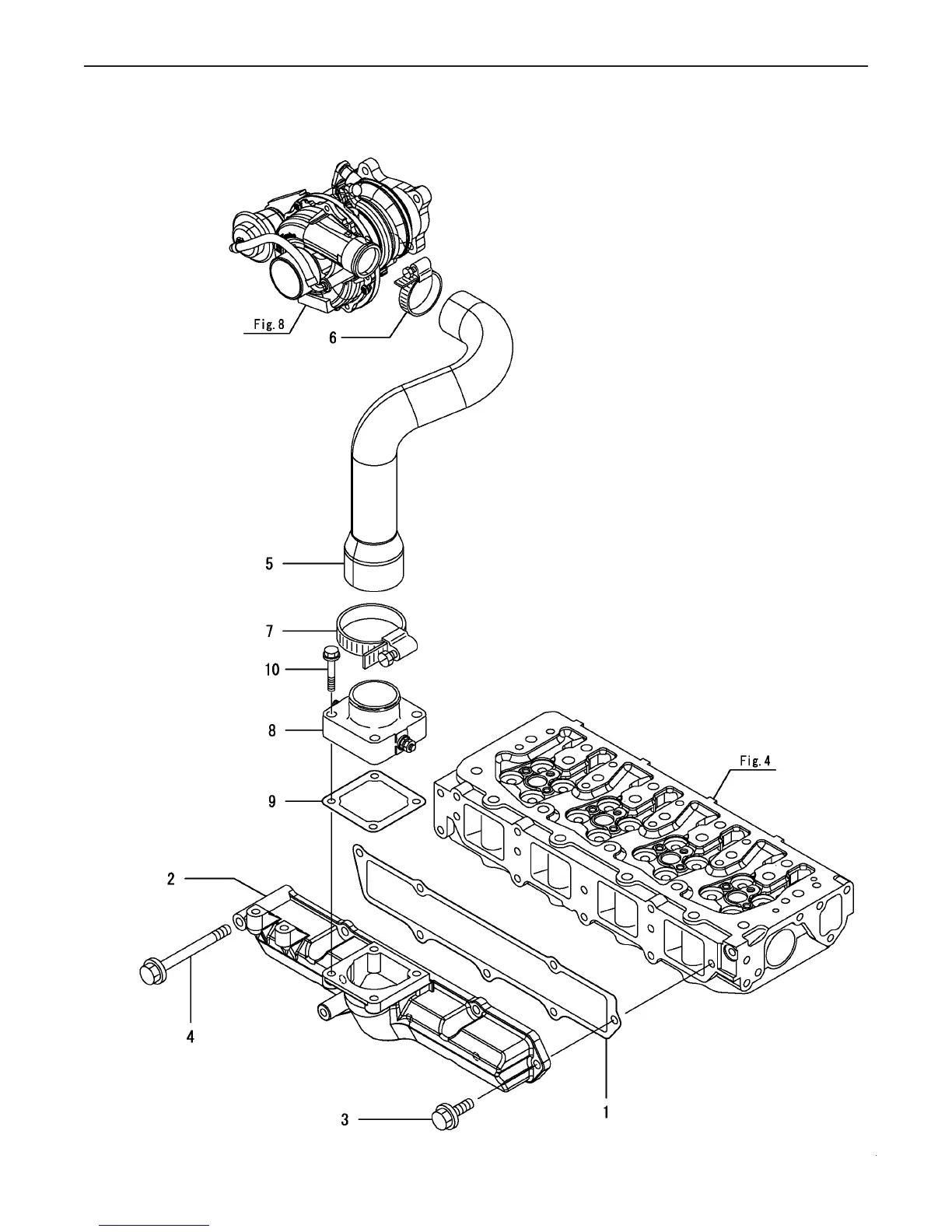

Fig 5. Suction Manifold
Fig.5. SUCTION MANIFOLD
0CNP5-G38300
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38300
5. SUCTION MANIFOLD
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=4TNV84T-BMRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
GASKET, MANIFOLD129508-1211011 1
MANIFOLD, AIR INTAKE129508-1212012 1
BOLT M 8X 20 PLATED26106-08020213 6
BOLT M 8X 80 PLATED26106-08080214 1
HOSE,INTAKE129558-1209015 1
CLAMP 4823000-04800016 1
CLAMP 6023000-06000017 1
HEATER, AIR129120-7750218 1
GASKET, AIR HEATER129150-7751119 1
BOLT M 8X 35 PLATED26106-080352110 4
