Cub Cadet Yanmar Lx490

Lx490Lx Series
Ref.
Part Number Description Qty
1 CY-194990-22140 NUT W/WASHER 8 2
2 CY-1A8240-60400 FRAME ASSY, CONNECT 1
3 CY-22137-100000 WASHER 10,POLISHED 1
4 CY-22372-100000 SNAP PIN 10 1
5 CY-26106-080162 BOLT M 8X 16 PLATED 2
Copyright 2011 Cub Cadet Yanmar LLC
189

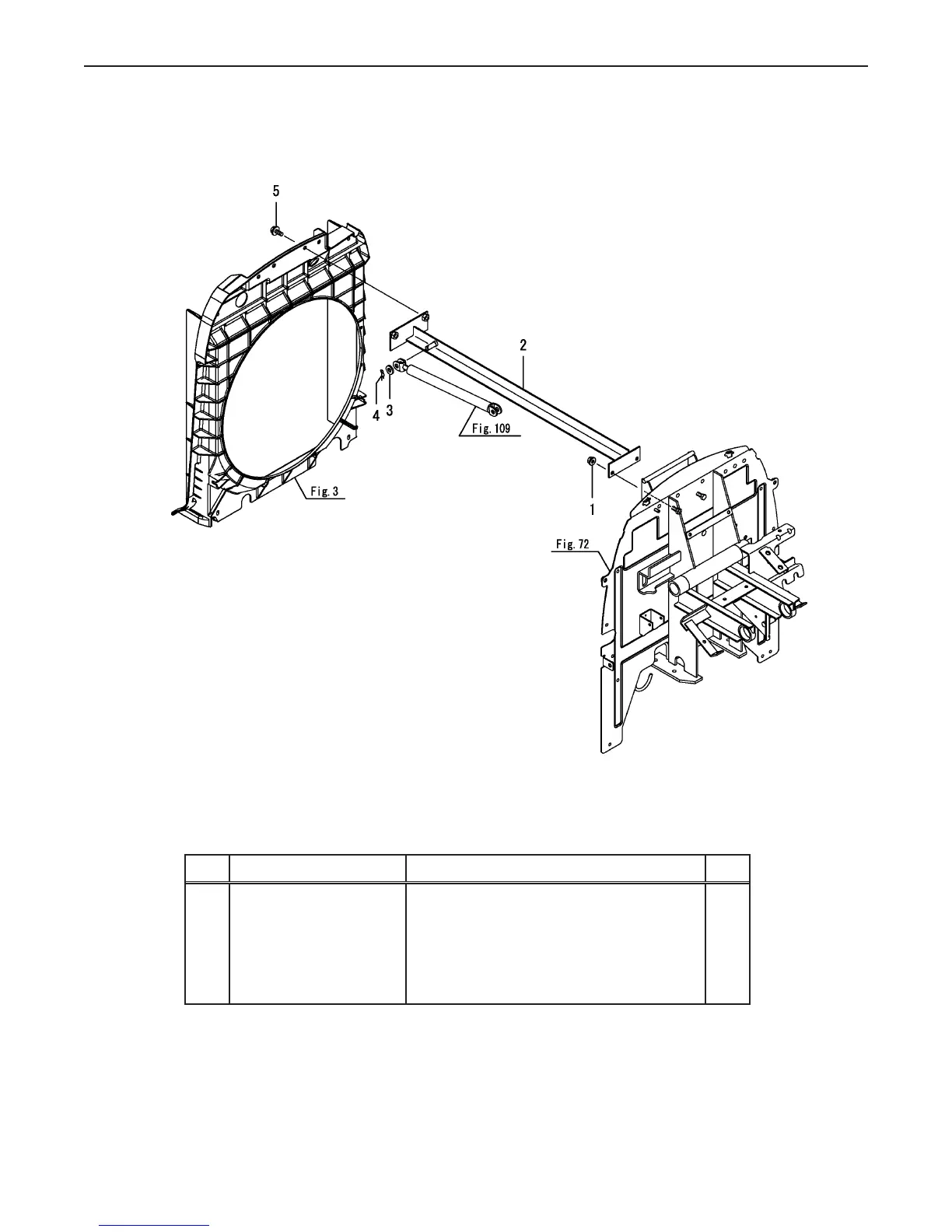

Fig 108. Hood Frame
Fig.108. HOOD FRAME
0CNP5-G37900
0CNP5-G37900
108. HOOD FRAME
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
NUT W/WASHER 8194990-2214011 222
FRAME ASSY, CONNECT1A8240-6040012 111
WASHER 10,POLISHED22137-10000013 111
SNAP PIN 1022372-10000014 111
BOLT M 8X 16 PLATED26106-08016215 222
(C)Copy Rights YANMAR CO.,LTD.
