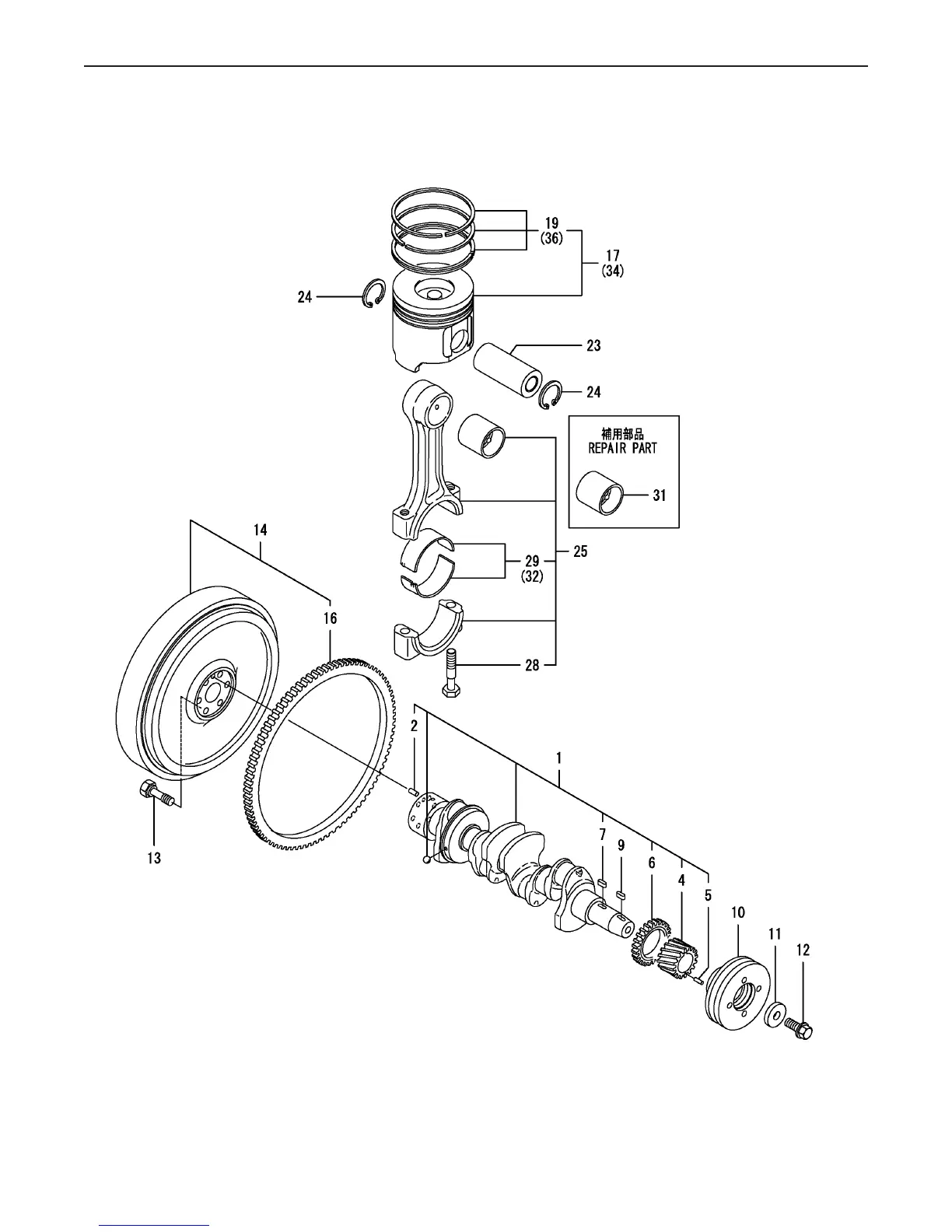

Fig 9. Crankshaft & Piston
Fig.9. CRANKSHAFT & PISTON
0CNP5-G38300
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
(1)Repair part.
(2)Under-sized(U.S.=0.25)part.
(3)Over-sized(O.S.=0.25)part.
0CNP5-G38300
9. CRANKSHAFT & PISTON
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=4TNV84T-BMRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
CRANKSHAFT ASSY129652-2101011 1
PIN, PARALLEL129100-0158022 1
GEAR, CRANKSHAFT119803-2120024 1
PIN121850-2129025 1
GEAR, BALANCER129400-2812126 1
KEY, 7X1422512-07014027 1
KEY, 7X1422512-07014019 1
V-PULLEY, CRANKSHAFT119852-21650110 1
WASHER129795-21661111 1
BOLT, V-PULLEY121850-21680112 1
BOLT, FLYWHEEL121111-21501113 6
FLYWHEEL ASSY129635-21590114 1
GEAR, RING124550-21600216 1
PISTON W/RING129508-22080117 4
RING SET, PISTON129004-22500219 4
PIN, PISTON(D26,L70)129202-22300123 4
CIRCLIP 2622252-000260124 8
ROD ASSY, CONNECTING729402-23100125 4
BOLT, CONNECTING ROD121550-23200228 8
METAL, CRANKPIN129150-23601229 4
1METAL, PISTON PIN129100-23910131 4
2METAL.PIN US=0.25129150-23611132 4
3PISTON W/RING .25OS129508-22900134 4
3RING SET, PISTON .25129004-22950236 4
