Cub Cadet Yanmar Lx490

Lx490Lx Series
Ref.
Part Number Description Qty
1 CY-1A8240-62360 MAT, FLOOR ROPS 1
2 CY-194697-62560 CAP, HOLE 12
Copyright 2011 Cub Cadet Yanmar LLC
203

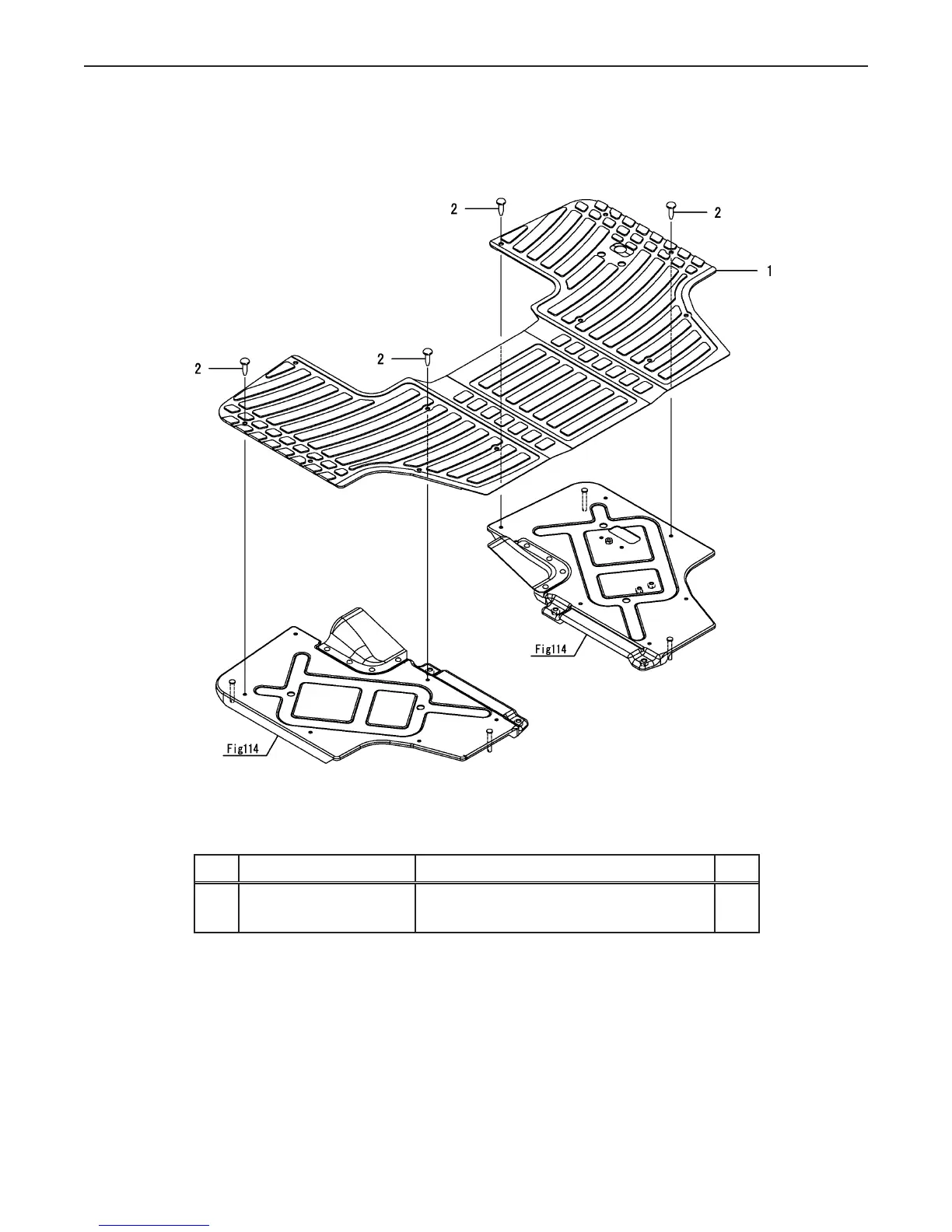

Fig 118. Floor Attachment
Fig.118. FLOOR ATTACHMENT
0CNP5-G37900
0CNP5-G37900
118. FLOOR ATTACHMENT
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
MAT, FLOOR ROPS1A8240-6236011 111
CAP, HOLE194697-6256012 121212
(C)Copy Rights YANMAR CO.,LTD.
