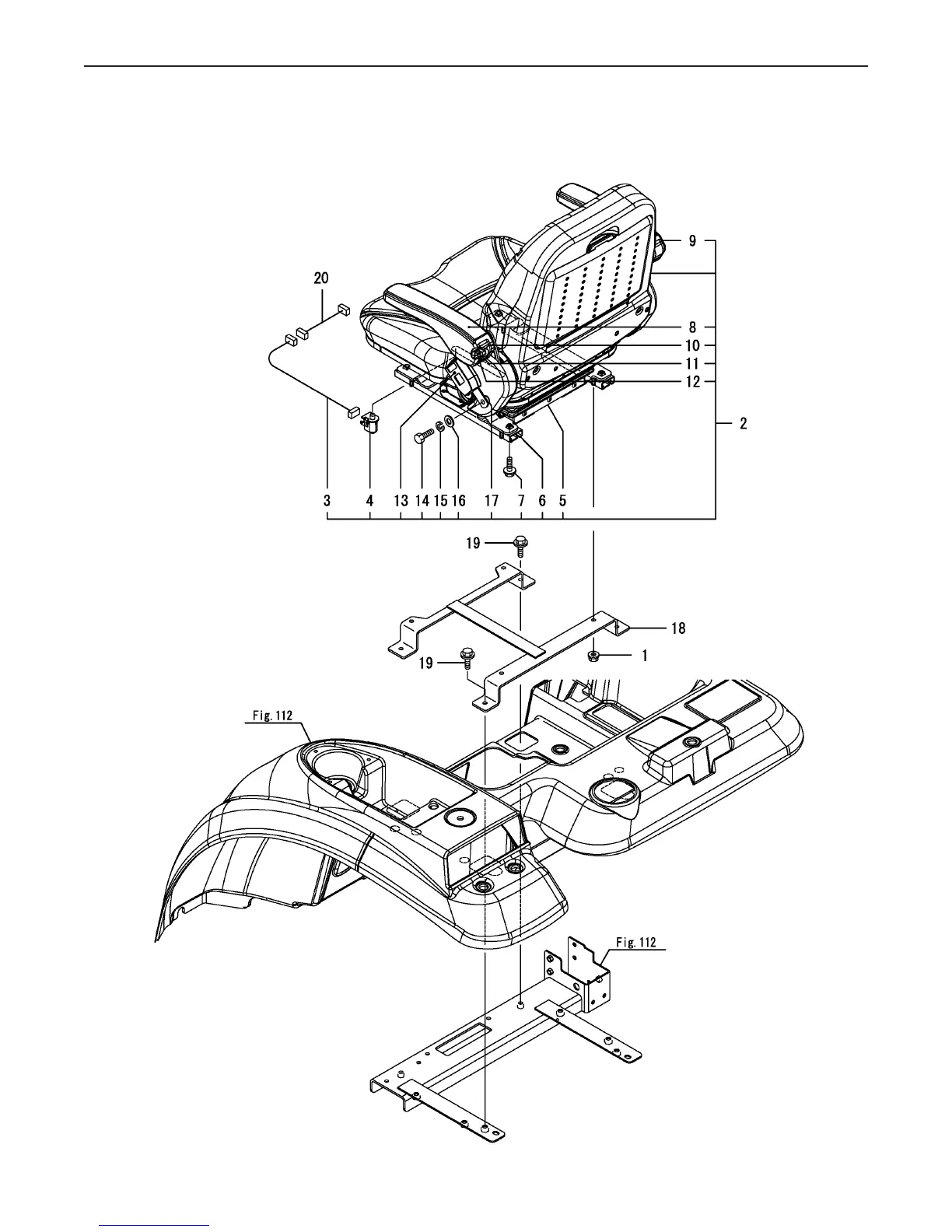

Fig.119. SEAT
0CNP5-G37900
0CNP5-G37900
119. SEAT
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
NUT W/WASHER 8194990-2214011 444
SEAT,ASSY1A8240-6311012 111
HARNESS, SEAT1A8275-5128023 111
SWITCH,SEAT,DELTA,AS1A8160-5231024 111
SUSPENSION, SEAT1A8240-6312025 111
SEAT RAIL L/R ASSY1A8250-6324026 111
FRANGE BOLT1A8250-6325027 444
RM REST BODY ASSY R1A8250-6331029 111
PLANE WASHER1A8250-63320210 222
HEXA HEAD CAP SCREWS1A8250-63330211 222
SPRING WASHER1A8250-63340212 222
SEATBELT ASSY, BELT1A8250-63520213 111
HEX BOLT1A8250-63530214 222
SPRING WASHER1A8250-63540215 333
PLAIN WASHER1A8250-63550216 111
BUSH1A8250-63560217 111
BRACKET ASSY, SEAT1A8240-63200118 111
BOLT M 8X 20 PLATED26106-080202119 444
LEAD, SEAT1A8250-63390120 111
(C)Copy Rights YANMAR CO.,LTD.
