Cub Cadet Yanmar Lx490

Lx490Lx Series
212
Copyright 2011 Cub Cadet Yanmar LLC

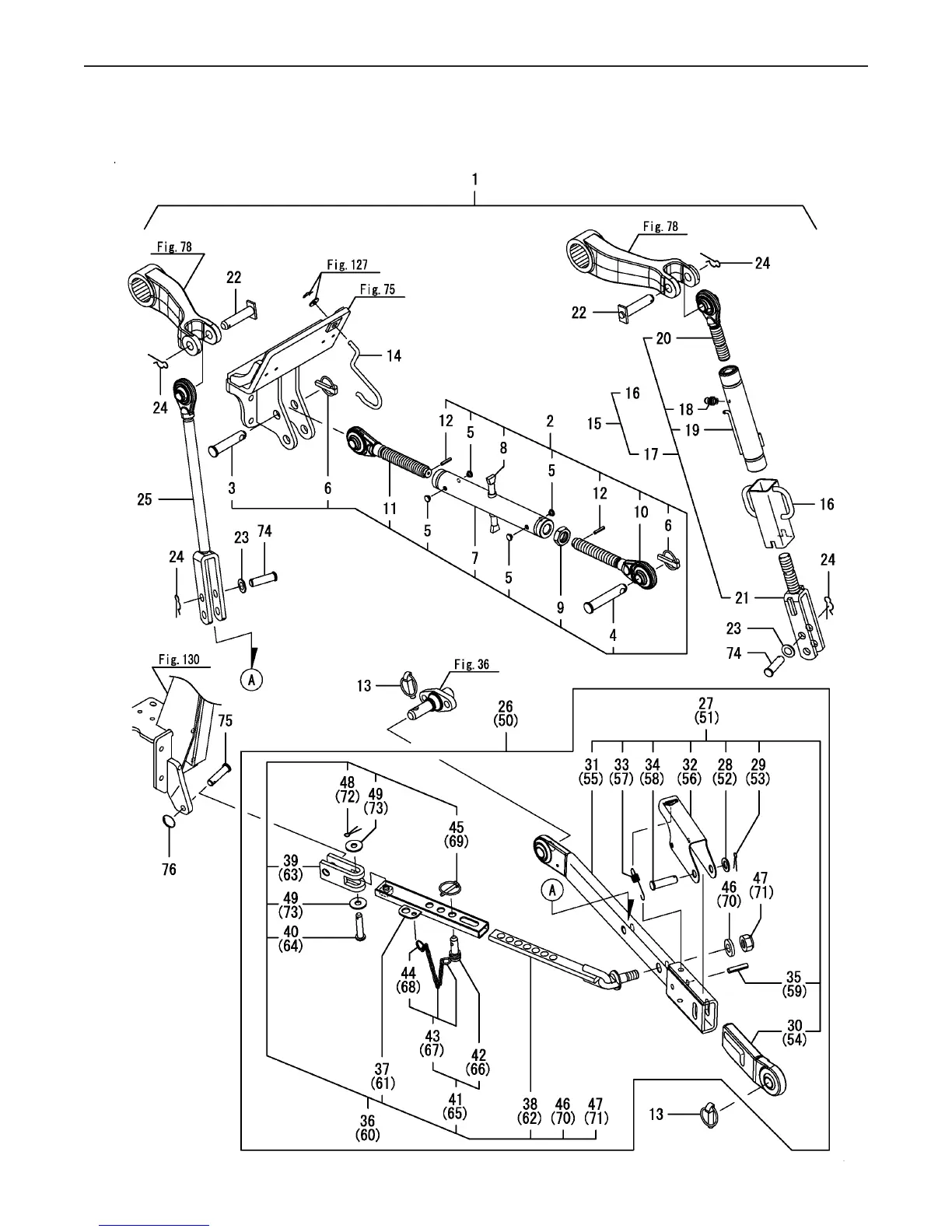

Fig 126. 3P Link Kit
Ref.
Part Number Description Qty
1 CY-1A8275-71000 3P LINK ASSY, 1
2 C Y-1A 827 5-7110 0 LINK ASSY, TOP 1
3 CY-1A7335-71230 PIN,TOP LINK 1
4 CY-1A7335-71240 PIN 1
5 CY-1A7335-71250 CAP 4
6 CY-1A7335-71410 LYNCH PIN ASSLY 2
7 CY-1A8275-71500 TURNBACKLE ASSY, 1
8 CY-1A8275-71540 ROD, 1
9 CY-1A7880-71580 NUT,M24 1
10 CY-1A8275-71600 EYEBOLT ASSY, RH 1
11 CY-1A8275-71700 EYEBOLT ASSY, LH 1
12 CY-1A7335-71760 PIN, 5.0 X25 2
13 CY-1A7335-71410 LYNCH PIN ASSLY 4
14 CY-1A8275-71550 SPRING, 1
15 CY-1A8275-72100 LINK ASSY, LIFT R.H. 1
16 CY-1A8275-72110 HANDLE CMP 1
17 CY-1A8275-72190 LINK ASY, LIFT R 1
18 CY-1A7450 -43680 FITTING, M6 1
19 CY-1A8275-72200 TURN BUCKLE CMP 1
20 CY-1A8275-72250 BOLT ASSY, EYE 1
21 CY-1A8275-72270 YOKE ASSY, LIFT R.H. 1
22 CY-1A8275-72150 PIN,LIFT ARM 2
23 CY-1A7500-72160 WASHER, 16 2
24 CY-1A8275-72180 SNAP PIN 13-19 4
25 CY-1A8275-72300 LIFT LINK L CMP 1
26 CY-1A8275-73030 LINK & CHAIN L ASY 1
27 CY-1A8275-73500 LINK ASSY, LOWER LH 1
28 CY-1A7500-72160 WASHER, 16 1
29 CY-1A7500-72180 PIN, 4.0X32 1
30 CY-1A8275-73510 LOWER MEMBER RL CMP 1
31 CY-1A8275-73600 LOWER MEMBER F ASSY 1
32 CY-1A8275-73700 LINK COVER 1
33 CY-1A8275-73710 SPRING 1
34 CY-1A8275-73720 PIN 1
35 CY-1A8275-73740 PIN 10X45 1
36 CY-1A8275-74200 STABILIZER ASSY 1
37 CY-1A8275-74260 TUBE CMP,OUTER 1
38 CY-1A8275-74340 PLATE CMP,INNER 1
Fig.126. 3P LINK KIT
0CNP5-G37900
0CNP5-G37900
126. 3P LINK KIT
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
3P LINK ASSY,1A8275-7100011 111
LINK ASSY, TOP1A8275-7110022 111
PIN,TOP LINK1A7335-7123033 111
PIN1A7335-7124034 111
CAP1A7335-7125035 444
LYNCH PIN ASSLY1A7335-7141036 222
TURNBACKLE ASSY,1A8275-7150037 111
ROD,1A8275-7154038 111
NUT,M241A7880-7158039 111
EYEBOLT ASSY, RH1A8275-71600310 111
EYEBOLT ASSY, LH1A8275-71700311 111
PIN, 5.0 X251A7335-71760312 222
LYNCH PIN ASSLY1A7335-71410213 444
SPRING,1A8275-71550214 111
LINK ASSY, LIFT R.H.1A8275-72100215 111
HANDLE CMP1A8275-72110316 111
LINK ASY, LIFT R1A8275-72190317 111
FITTING, M61A7450-43680418 111
TURN BUCKLE CMP1A8275-72200419 111
BOLT ASSY, EYE1A8275-72250420 111
YOKE ASSY, LIFT R.H.1A8275-72270421 111
PIN,LIFT ARM1A8275-72150222 222
WASHER, 161A7500-72160223 222
SNAP PIN 13-191A8275-72180224 444
LIFT LINK L CMP1A8275-72300225 111
LINK & CHAIN L ASY1A8275-73030226 111
LINK ASSY, LOWER LH1A8275-73500327 111
WASHER, 161A7500-72160428 111
PIN, 4.0X321A7500-72180429 111
LOWER MEMBER RL CMP1A8275-73510430 111
LOWER MEMBER F ASSY1A8275-73600431 111
LINK COVER1A8275-73700432 111
SPRING1A8275-73710433 111
PIN1A8275-73720434 111
PIN 10X451A8275-73740435 111
STABILIZER ASSY1A8275-74200336 111
TUBE CMP,OUTER1A8275-74260437 111
PLATE CMP,INNER1A8275-74340438 111
JOINT1A8275-74390439 111
PIN 12.8X551A8275-74410440 111
PIN CMP1A8275-74430441 111
PIN 15X271A8275-74440542 111
CHAIN ASSY1A8275-74450543 111
RING1A8275-74470644 111
LYNCH PIN ASSY1A8275-74490445 111
WASHER 201A8275-74520446 111
NUT 18,NYLON LOCK1A8275-74530447 111
PIN 4.0X321A8275-74540448 111
WASHER 131A8275-74550449 222
LINK & CHAIN R ASSY1A8275-73040250 111
LINK ASSY, LOWER RH1A8275-73550351 111
++ CONTINUE ++
