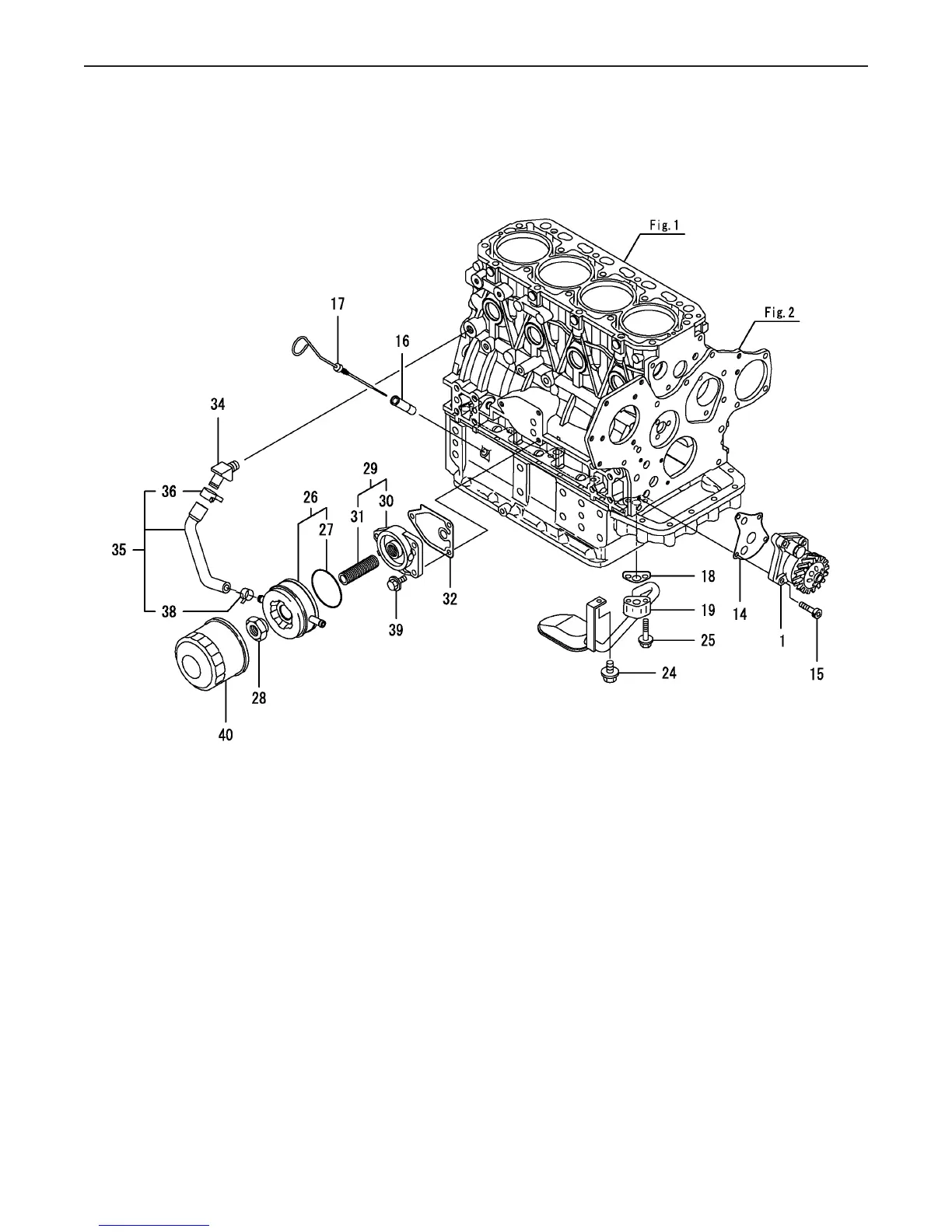

Fig.11. LUB. OIL SYSTEM
0CNP5-G38300
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
(1)Repair part.
0CNP5-G38300
11. LUB. OIL SYSTEM
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=4TNV84T-BMRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
PUMP ASSY, LUB.OIL129418-3200011 1
GASKET, PUMP129150-32020114 1
BOLT, M6X2526450-060252115 4
GUIDE, DIPSTICK121520-34810116 1
DIPSTICK, LUB.OIL129558-34820117 1
GASKET, PIPE129150-35042118 1
PIPE ASSY, OIL INLET129550-35090119 1
BOLT M 8X 12 PLATED26106-080122124 1
BOLT M 8X 35 PLATED26106-080352125 2
COOLER ASSY, LUB.OIL129508-33010126 1
O-RING129508-33050227 1
NUT, OIL COOLER129417-33110128 1
BRACKET ASSY, FILTER129006-35100129 1
BRACKET, FILTER119802-35110230 1
STUD, L=67129417-35150231 1
GASKET, BRACKET129150-35111132 1
JOINT, PT1/4129648-44400134 1
PIPE, COOLER INLET129645-49030135 1
CLIP, HOSE 18.5171008-03990236 1
CLAMP23080-015000238 1
BOLT M 8X 20 PLATED26106-080202139 3
1FILTER 80X80L129150-35153140 1
