Cub Cadet Yanmar Lx490

Lx490Lx Series
Notes
38
Copyright 2011 Cub Cadet Yanmar LLC

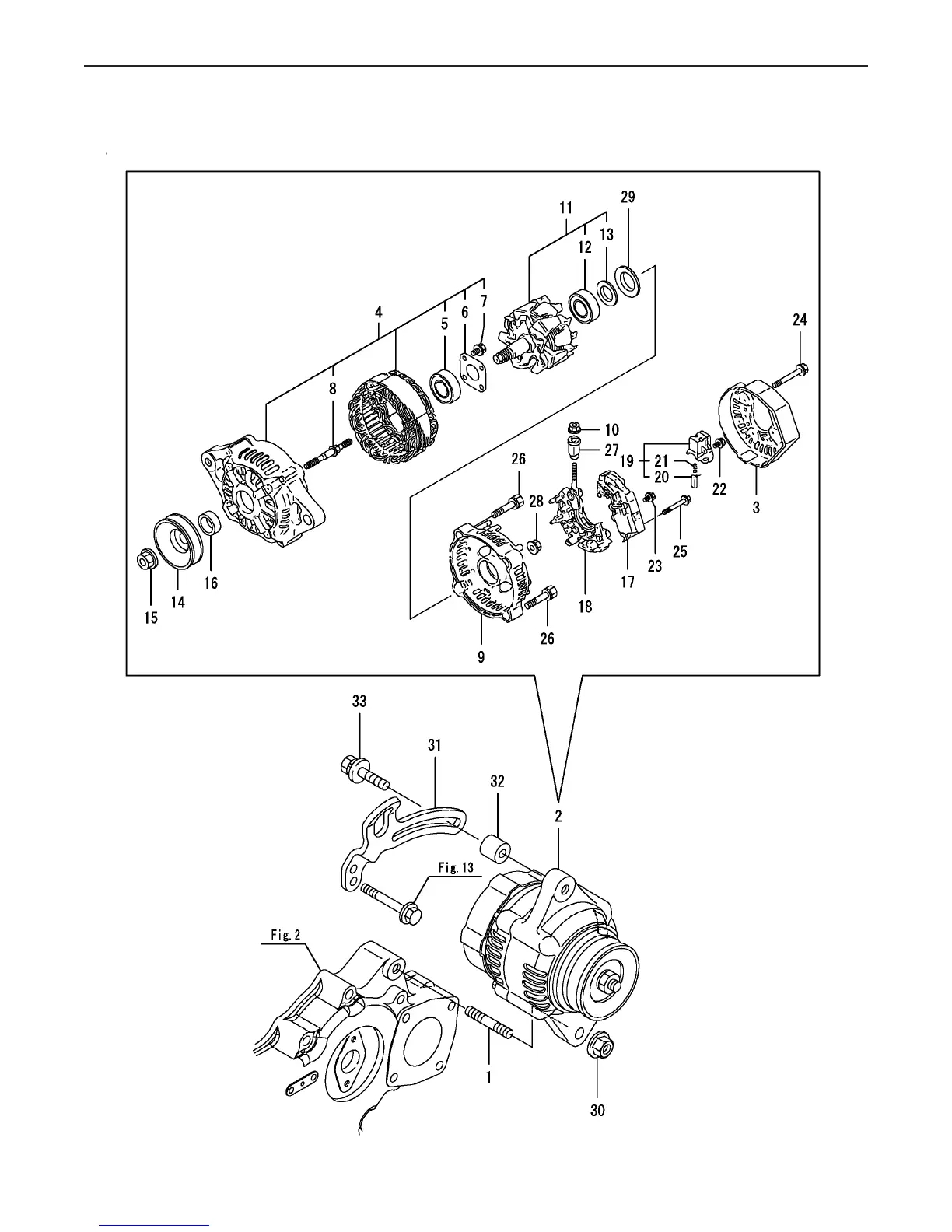

Fig 18. Generator
Fig.18. GENERATOR
0CNP5-G38300
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38300
18. GENERATOR
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=4TNV84T-BMRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
STUD129795-0190011 1
GENERATOR, 12V-40A119751-7720012 1
COVERX021551244023 1
FLAME ASSY, DRIVEX121400143024 1
BALL BEARING119620-7920035 1
PLATE, RETAINER119620-7921036 1
SCREW119620-7922037 4
STUD119620-7923038 2
FLAME ASSY, REARX121501105029 1
NUTX9490561001210 1
ROTOR ASSY119620-77380211 1
BALL BEARING119620-79240312 1
COVER, BEARING119620-79250313 1
PULLEY119620-77461214 1
NUT119620-77471215 1
COLLAR119620-77490216 1
REGULATOR ASSY129423-77710217 1
HOLDER119620-79260218 1
HOLDER, BRUSH129052-79270219 1
BRUSH ASSY119620-77480320 2
SPRING119620-79280321 2
SCREW119620-79290222 6
SCREW119620-79300223 1
BOLT119620-79310224 3
SCREW119620-79320225 2
BOLT119620-79330226 2
BUSH, INSULATION119620-79340227 1
NUT119620-79350228 2
WASHER, THRUST119620-79360229 1
NUT, M1026306-100002130 1
A
DJUSTER, BELT129107-77330131 1
SPACER124732-77340132 1
BOLT, ADJUSTER129972-77341133 1
(C)Copy Rights YANMAR CO.,LTD.
