Fig 4. Engine Accessories Lx490

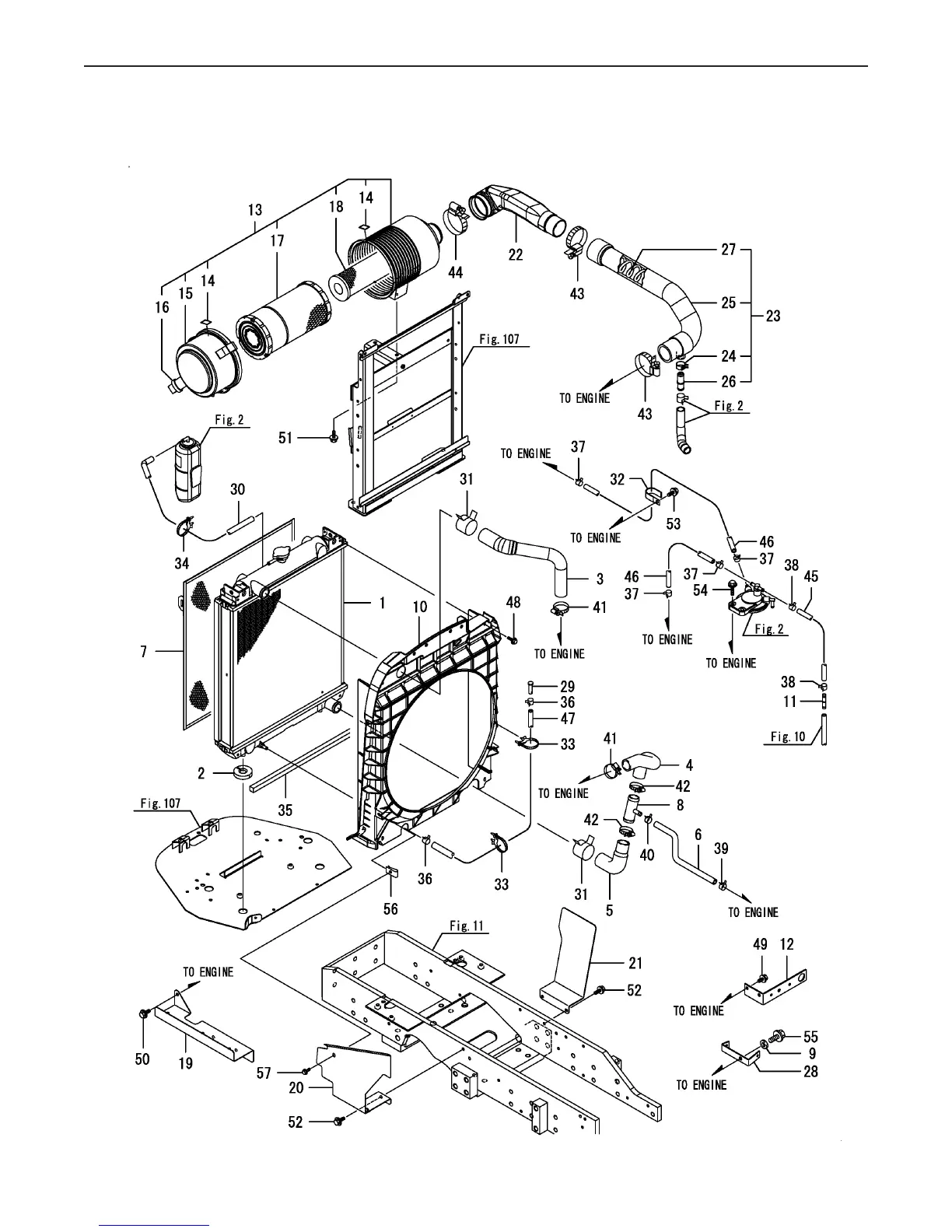

Fig.4. ENGINE ACCESSORIES
0CNP5-G37900
0CNP5-G37900
4. ENGINE ACCESSORIES
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
RADIATOR ASSY1A7140-0060011 1
RUBBER,RADIATOR1A7180-0105012 2
TUBE,COOLING WATER A1A8250-0121013 1
PIPE, COOLING WATER1A7300-0122014 1
PIPE, COOLING WATER1A7300-0123015 1
CW-T, LO COOLER OUT1A8260-0124116 1
SCREEN, RADIATOR1A8250-0125017 1
JOINT, WATER COOLING1A8260-0126018 1
SPACER 20194150-0127019 1
SHROUD M ASSY, FAN1A8250-01500110 1
JOINT198280-04470111 1
CLAMP, FUEL HOSE1A8240-04620112 1
CLEANER ASSY, 6IN D1A8260-05100113 1
LABEL, MARK129418-12530214 2
COVER ASSY129900-12530215 1
VALVE, UNLOADER119808-12540216 1
ELEMENT129062-12560217 1
ELEMENT, INNER119005-12571218 1
PLATE,SHUTTER,84T1A8275-05530119 1
COVER, BELT L1A8240-05810120 1
COVER, BELT R1A8240-05820121 1
PIPE A,INTAKE1A7180-06201122 1
HOSE ASSY, INTAKE B1A8260-06210123 1
CLAMP 22129410-03990224 1
HOSE, INTAKE B1A8260-06220225 1
JOINT, BREATHER1A8260-06230226 1
SPRING,1A8260-06240227 1
BRACKET, CLAMP1A8240-15460128 1
PIN 8X24198220-37900129 1
PIPE, C. WATER121750-49150130 1
CLIP 37, HOSE175022-49750131 2
CLAMP, WIRE HARNESS194440-51620132 1
BAND194680-51670133 2
BAND194680-51670134 1
URETHANE,SIDE LAMP1A7601-53920135 1
CLIP, HOSE114270-59010136 2
CLIP, HOSE114270-59010137 4
CLIP, HOSE114270-59010138 2
CLAMP 1923000-019000139 1
CLAMP 1923000-019000140 1
CLAMP 3523000-035000141 2
CLAMP 3523000-035000142 2
CLAMP 7023000-070000143 2
CLAMP 8023000-080000144 1
HOSE 7.3X200,BRAIDED23980-730200145 1
FUEL PIPE 7.3X40023980-730400146 2
FUEL PIPE 7.3X60023980-730600147 1
BOLT M 6X 20 PLATED26106-060202148 4
BOLT M 8X 12 PLATED26106-080122149 2
BOLT M 8X 12 PLATED26106-080122150 3
BOLT M 8X 16 PLATED26106-080162151 2
++ CONTINUE ++
(C)Copy Rights YANMAR CO.,LTD.
Ref.
Part Number Description Qty
1 CY-1A7140-00600 RADIATOR ASSY 1
2 CY-1A7180-01050 RUBBER,RADIATOR 2
3 CY-1A8250-01210 TUBE,COOLING WATER A 1
4 CY-1A7300-01220 PIPE, COOLING WATER 1
5 CY-1A7300-01230 PIPE, COOLING WATER 1
6 CY-1A8260-01241 CW-T, LO COOLER OUT 1
7 CY-1A8250-01250 SCREEN, RADIATOR 1
8 CY-1A8260-01260 JOINT, WATER COOLING 1
9 CY-194150-01270 SPACER 20 1
10 CY-1A8250-01500 SHROUD M ASSY, FAN 1
11 CY-198280-04470 JOINT 1
12 CY-1A8240-04620 CLAMP, FUEL HOSE 1
13 CY-1A8260-05100 CLEANER ASSY, 6IN D 1
14 CY-129418 -12530 LABEL, MARK 2
15 CY-129900 -12530 COVER ASSY 1
16 CY-119808-12540 VALVE, UNLOADER 1
17 CY-129062-12560 ELEMENT 1
18 CY-119005-12571 ELEMENT, INNER 1
19 CY-1A8275- 05530 PLATE,SHUTTER,84T 1
20 CY-1A8240-05810 COVER, BELT L 1
21 CY-1A8240-05820 COVER, BELT R 1
22 CY-1A7180 - 06201 PIPE A,INTAKE 1
23 CY-1A8260-06210 HOSE ASSY, INTAKE B 1
24 CY-129410-03990 CLAMP 22 1
25 CY-1A8260-06220 HOSE, INTAKE B 1
26 CY-1A8260-06230 JOINT, BREATHER 1
27 CY-1A8260-06240 SPRING, 1
28 CY-1A8240-15460 BRACKET, CLAMP 1
29 CY-198220-37900 PIN 8X24 1
