Cub Cadet Yanmar Lx490

Lx490Lx Series
8
Copyright 2011 Cub Cadet Yanmar LLC

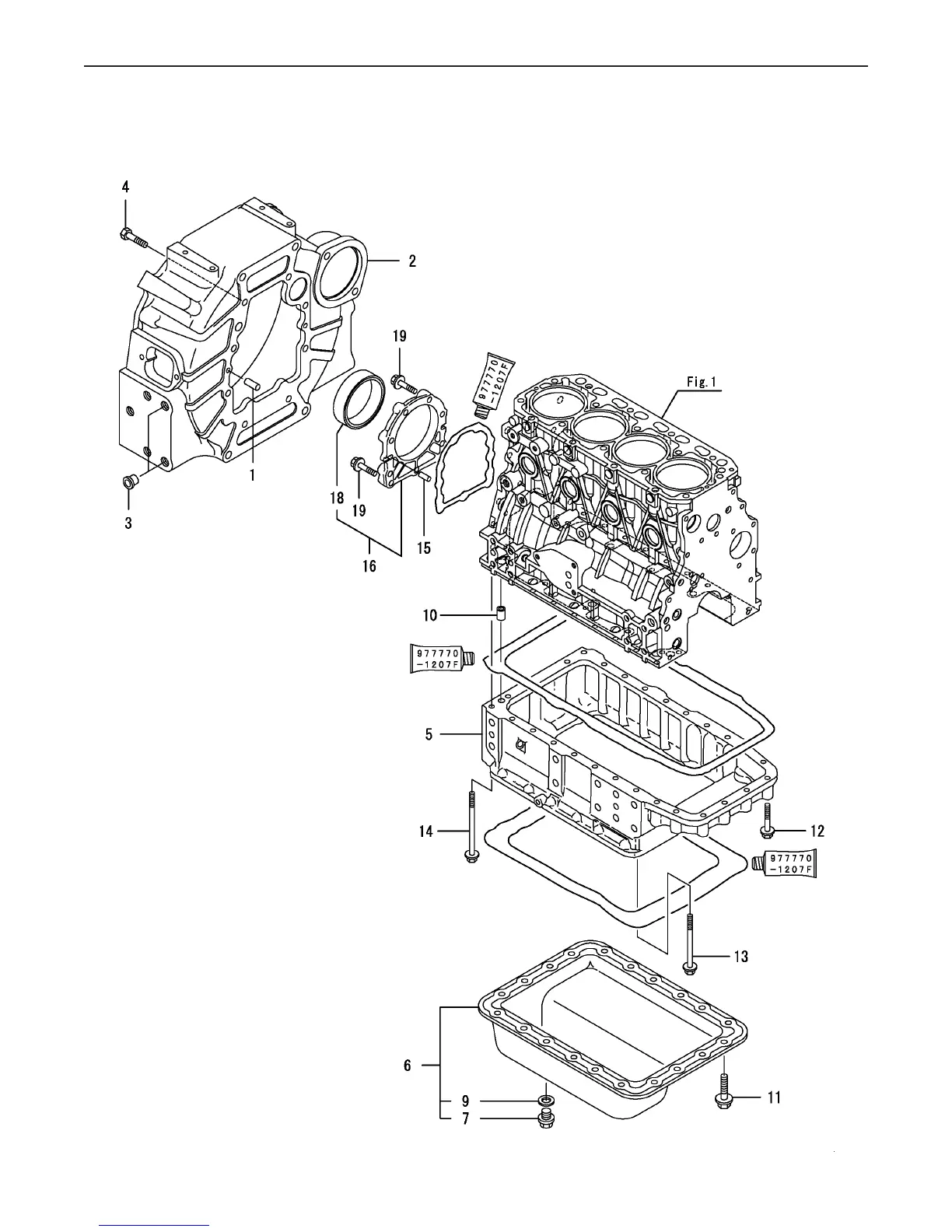

Fig 3. Flywheel Housing & Oil Sump
Fig.3. FLYWHEEL HOUSING & OIL SUMP
0CNP5-G38300
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38300
3. FLYWHEEL HOUSING & OIL SUMP
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=4TNV84T-BMRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
PIN, PARALLEL129100-0158011 2
HOUSING, FLYWHEEL129558-0162012 1
PLUG 15194450-1119013 6
BOLT M10X2526206-10025214 8
SUMP, LUB.OIL129550-0170215 1
COVER ASSY, OIL SUMP729429-0172116 1
PLUG, M16105425-0169027 1
WASHER, 1622190-16000229 1
PIPE, KNOCK129555-01750110 1
BOLT M 8X 12 PLATED26106-080122111 20
BOLT M 8X 50 PLATED26106-080502112 8
BOLT M 8X100 PLATED26106-081002113 14
BOLT M 8X120 PLATED26106-081202114 4
PIN, PARALLEL129100-01580115 2
CASE ASSY, OIL SEAL729402-01650116 1
SEAL, OIL129120-01780218 1
BOLT, M8X30129486-01670119 9
(C)Copy Rights YANMAR CO.,LTD.
