Cub Cadet Z-Force S 48 User Manual

29se c t i O n 7 — se r v i c e
Changing the Spindle Assembly
Remove the deck from beneath the tractor, (refer to Deck 
Removal on page 25).
Remove the hex washer screws securing the belt covers 2.
to the deck and remove the belt from the spindle pulleys.


2.
Use a  ⁄
assembly when loosening the hex nut securing the blade.
A block of wood may be placed between the deck housing
and the cutting edge of the blade to help in breaking loose

NOTE: Take note of the order that the parts composing the
assembly are placed.
Using a wrench or socket ratchet remove four hex washer 4.

Reverse the process to install the spindle assembly.5.
Changing the Transmission Drive Belt


Cub Cadet dealer to have the transmission drive belt replaced.
Hex
Washer
Screw
Spacer
Pulley
Hex Screw
Spacer
Spindle Assembly
Spacer
Blade
Flange Lock Nut

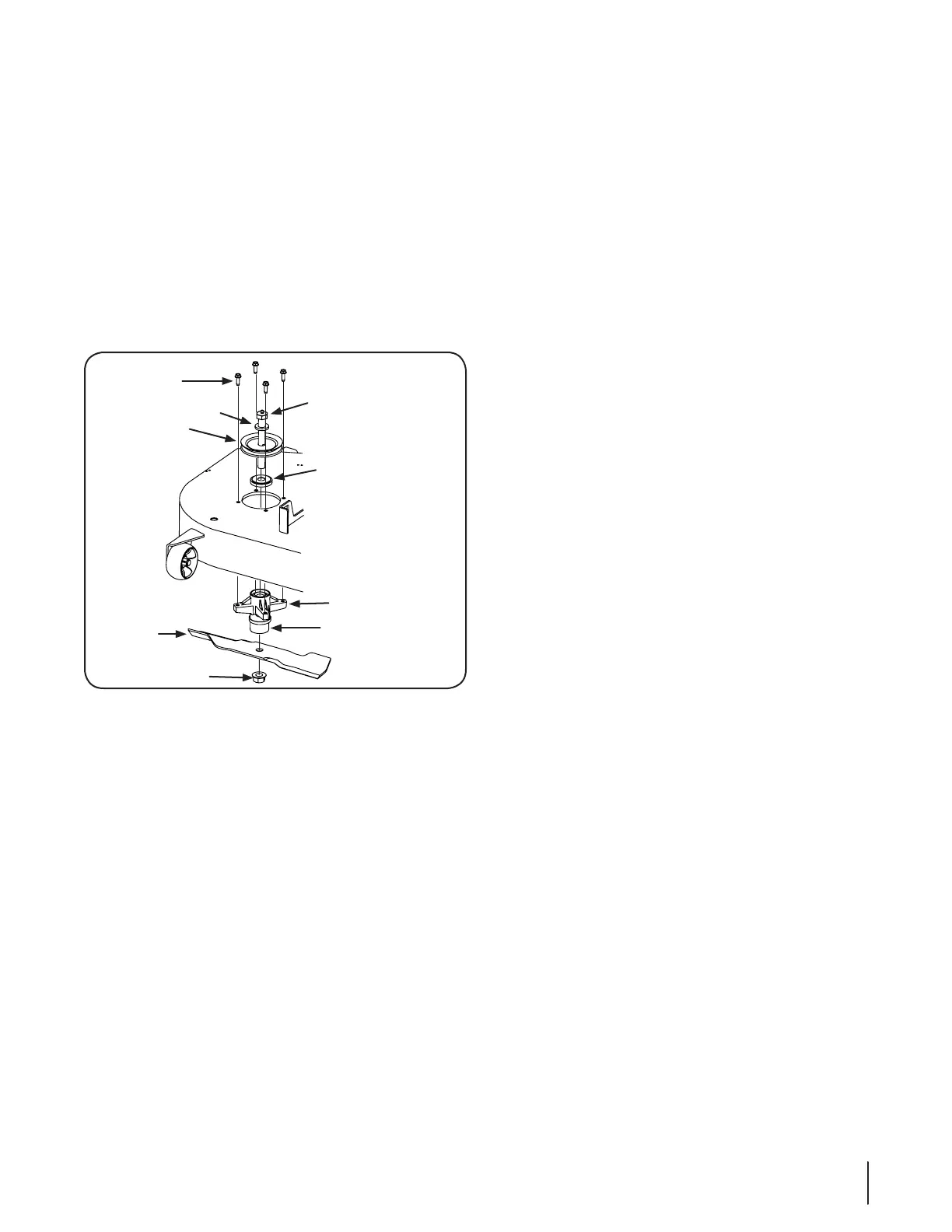

Figure 7-12

Cub Cadet Z-Force S 48 Specifications

General

Engine Brand	Kohler
Engine Power	24 hp
Cutting Width	48 inches
Fuel Capacity	3.5 gallons
Transmission	Hydro-Gear ZT-2800
Transmission Type	Hydrostatic
Deck Material	Steel
Deck Construction	Fabricated
Deck Material Gauge	10-gauge
Number of Blades	3
Type	Zero-Turn
Cutting Height	1.5 - 4 inches
Warranty	3-year limited
