Cube SUPER HPC User Manual

| 11
SUPER HPC /HPC/GTC
10 |

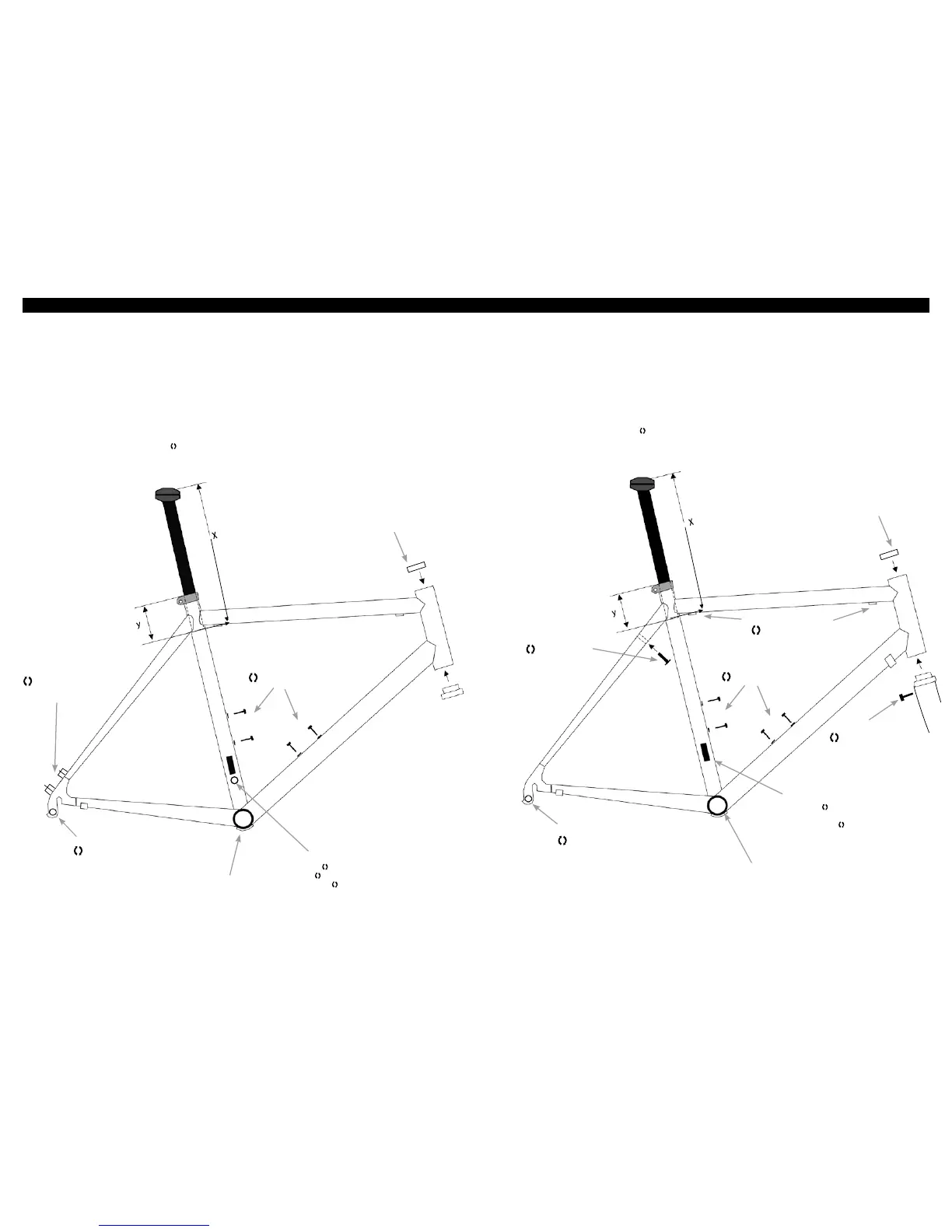

9.0 Assembly Instructions
9.1 The MTB bike frame
9.2 The racing bike frame
Seat post assembly
Consider max. allowed seat post length (x)
including min. insert length (y):
120 mm (y) at 400 mm (x)
120 mm (y) for adjustable seat post (e.g.
RockShox Reverb) with max. 420mm (x)
110 mm (y) at 380 mm (x)
100 mm (y) at 350 mm (x)
Seat post assembly
Consider max. allowed seat post length
(x) including min. insert length (y):
100 mm (y) at 350 mm (x)
80 mm (y) at 300 mm (x)
Brake mount screw(s)
Max. 8 Nm
Rear derailleur mount screw
Max. 8 Nm
Rear derailleur mount screw
Max. 8 Nm
Brake mount screw
Max. 8 Nm
Bottle cage assembly screws
Only M5 screws are allowed.
Max. 3Nm
Bottle cage assembly screws
Only M5 screws are allowed.
Max. 3 Nm
For seat post assembly apply carbon assembly paste
(e.g. from Dynamix, Syntace, …) to seat post and to the
inside of seat tube. It is not allowed to use standard
grease!
Consider torque on seat clamp and seat post!
Max. 6 Nm
Apply torque gradually!
Cable stop screws
Max. 1,5 Nm
Front derailleur mount screw
Band type Max. 4Nm / Min. 3 Nm (apply gradually)
E-direct Max. 7Nm / Min. 5 Nm (apply gradually)
Direct Mount Max. 7Nm / Min. 5 Nm (apply gradually)
Bottom bracket
Use only suitable „Presst“ bea-
rings. Special tools for assembly
and disassembly of “Presst”
bearings are necessary. Grease
is only allowed on frames with
alloy tube.
Front derailleur mount screw
Band type Max. 4 Nm / Min. 3 Nm
(apply gradually)
Brazed-on type Max. 4 Nm / Min. 3 Nm
(apply gradually)
Brake mount screw
Max. 8 Nm
Head set assembly (integrated
/ semiintegrated) Special tools
for assembly and disassembly
of head set or head set cups are
necessary. Usage of grease is not
allowed!
Head set assembly (integrated
/ semiintegrated) Special tools
for assembly and disassembly
of head set or head set cups are
necessary. Usage of grease is not
allowed!
For seat post assembly apply carbon assembly paste
(e.g. from Dynamix, Syntace, …) to seat post and to the
inside of seat tube. It is not allowed to use standard
grease!
Consider torque on seat clamp and seat post!
Max. 6 Nm
Apply torque gradually!
Bottom bracket
Use only suitable „Presst“ bea-
rings. Special tools for assembly
and disassembly of “Presst”
bearings are necessary. Grease
is only allowed on frames with
alloy tube.
