STEP 5
-----------------------------------------------------------------------------------
STEP 4
-----------------------------------------------------------------------------------

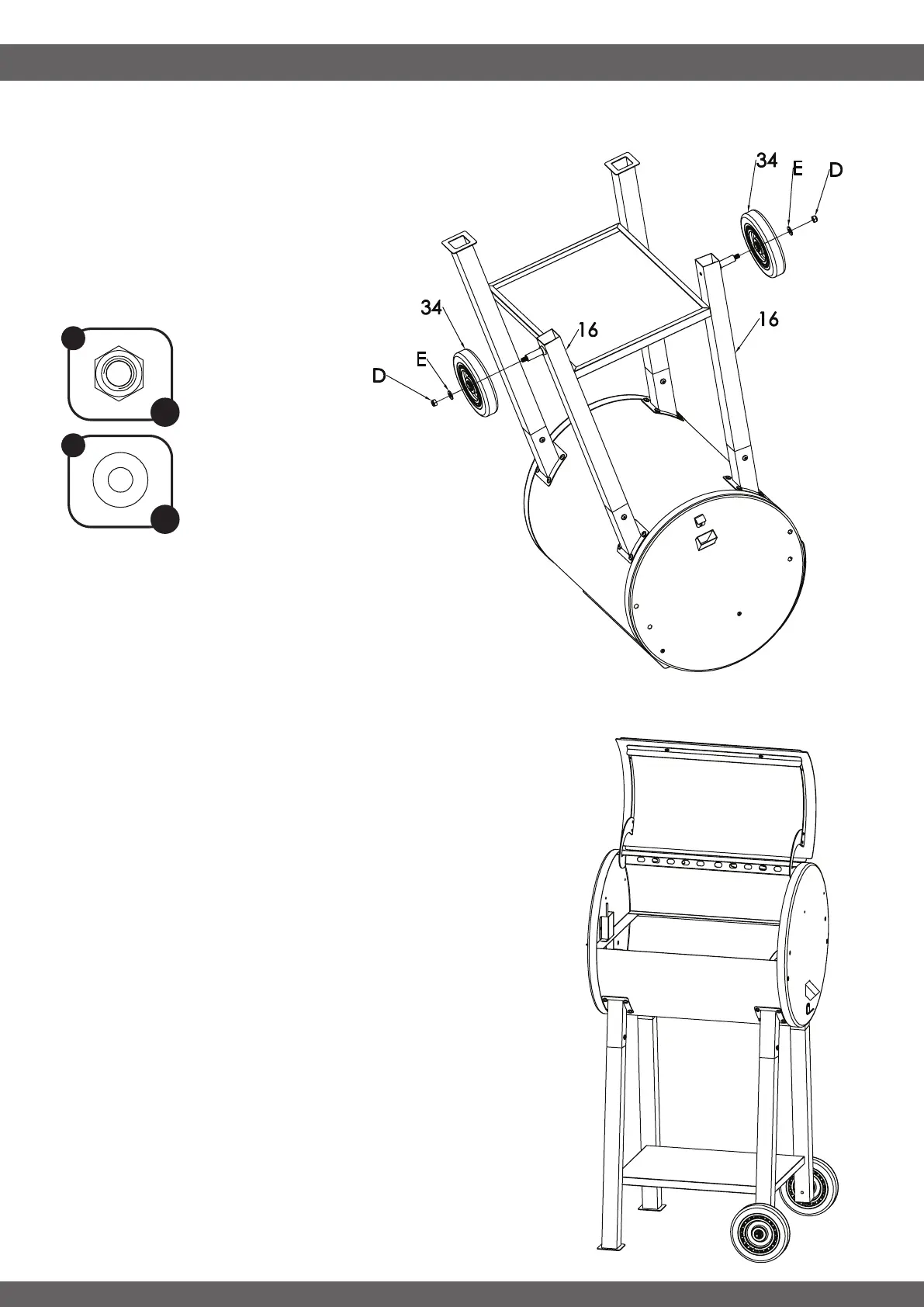

• Attach the Wheel (34) to the Leg (16)
by inserting the Wheel through the
Wheel Pin. Place the Wheel Washer
(E) on the opposite side and secure
it with the Nut (D), as shown in the
picture.
• Repeat installation for the other
Wheel (34) and Support Leg (16).
• Ensure all screws from the previous steps are tight, then
turn the grill over to stand on the wheels.
NOTE: It is recommended to perform this step with two
people.
ASSEMBLY INSTRUCTIONS
10
E
D
x2
x2
