Cuisinart CPG-465 - Step 12: Re-securing Hot Rod; Step 13: Attaching the Fire Box

ASSEMBLY INSTRUCTIONS
14

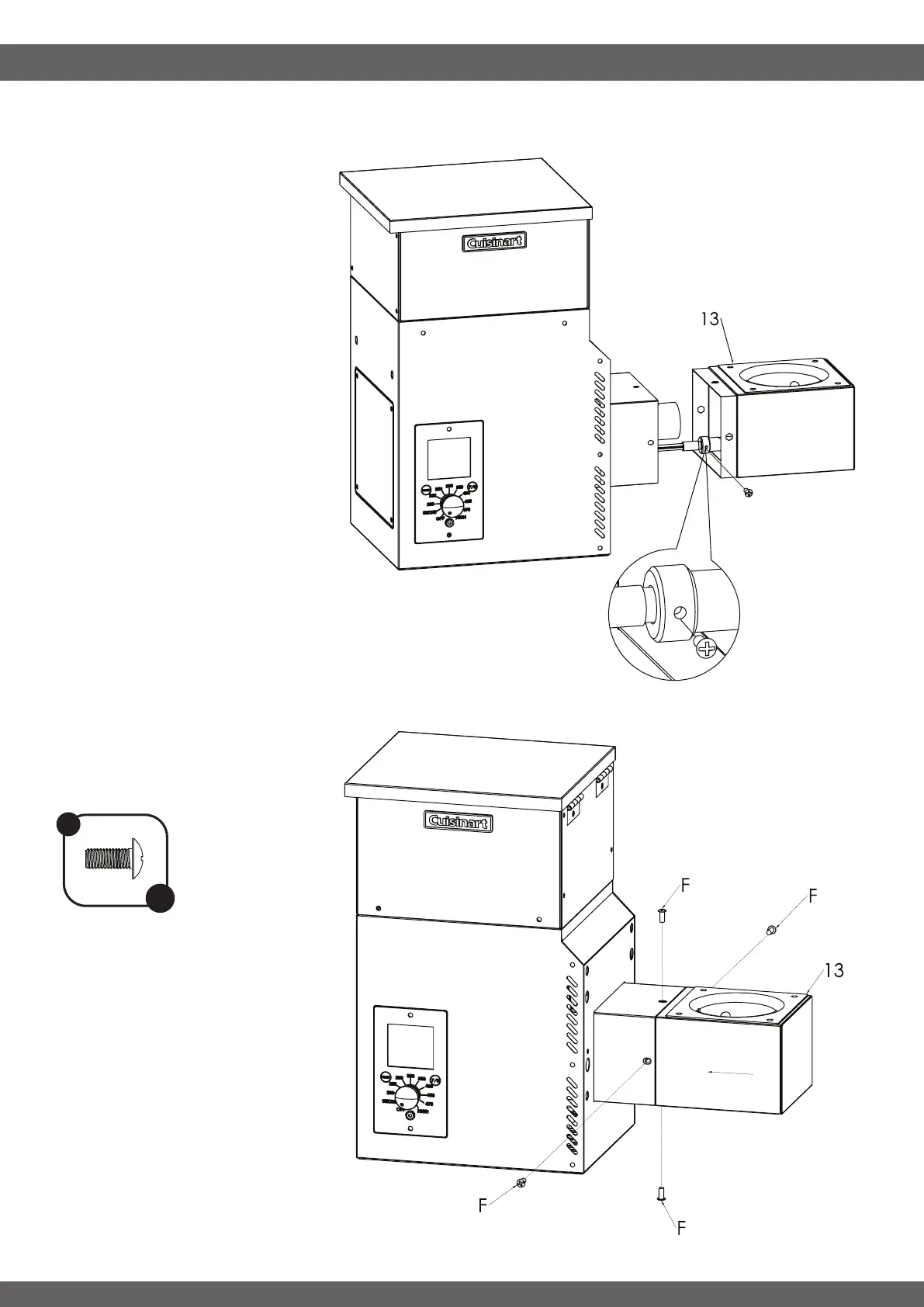

STEP 13
-----------------------------------------------------------------------------------
STEP 12
-----------------------------------------------------------------------------------
• Attach the Fire Box (13) to
the hopper unit using four
Screws (F).
• With the hot rod in place,
re-install the screw
removed in Step 11 to
secure the hot rod.
F
x4
