Cuisinart CPG-465 - Step 10: Attaching the Hopper Lid; Step 11: Inserting the Hot Rod into the Fire Box

13
ASSEMBLY INSTRUCTIONS
F
x2
G
x 2

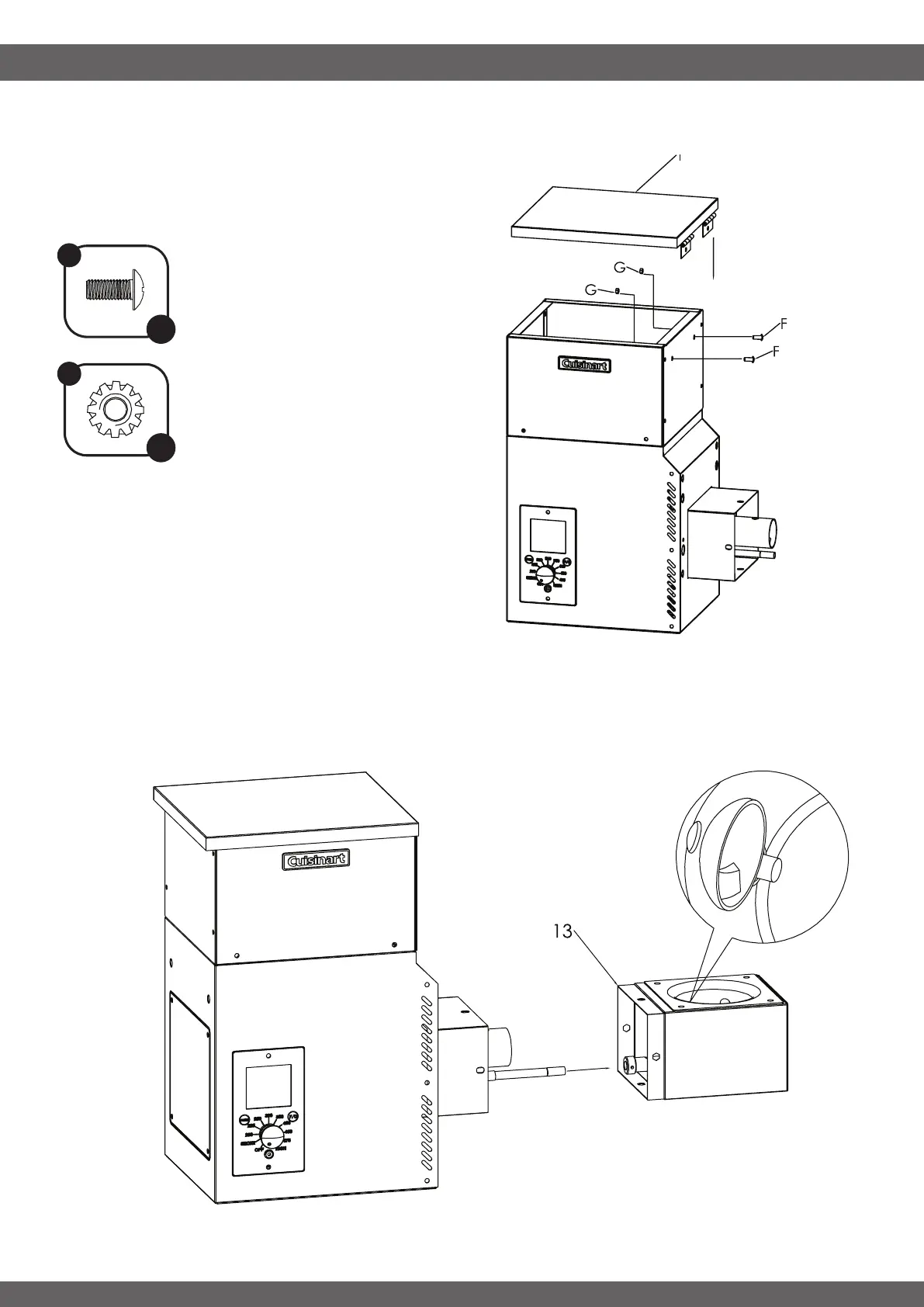

STEP 10
-----------------------------------------------------------------------------------
• Attach the Hopper Lid (1) to the hopper by
securing it with two Screws (F) and two Lock
Nuts (G).
STEP 11
-----------------------------------------------------------------------------------
• Unscrew the pre-installed screw located on the hot rod sleeve attached to the Fire Box (13).
• Insert the hot rod into the fire box until you see 1/4” of the hot rod extended inside the fire pot. See
detail view for what it should look like.
