Cuisinart CPG-465 - Step 24: Attaching Side Shelf Brackets

ASSEMBLY INSTRUCTIONS
20
STEP 25
-----------------------------------------------------------------------------------
• Attach Towel Holder (33) using two Screws (A).
• Attach the Bottle Opener (29) using the 2 stainless
steel screws that are packaged with it.
A
x 2

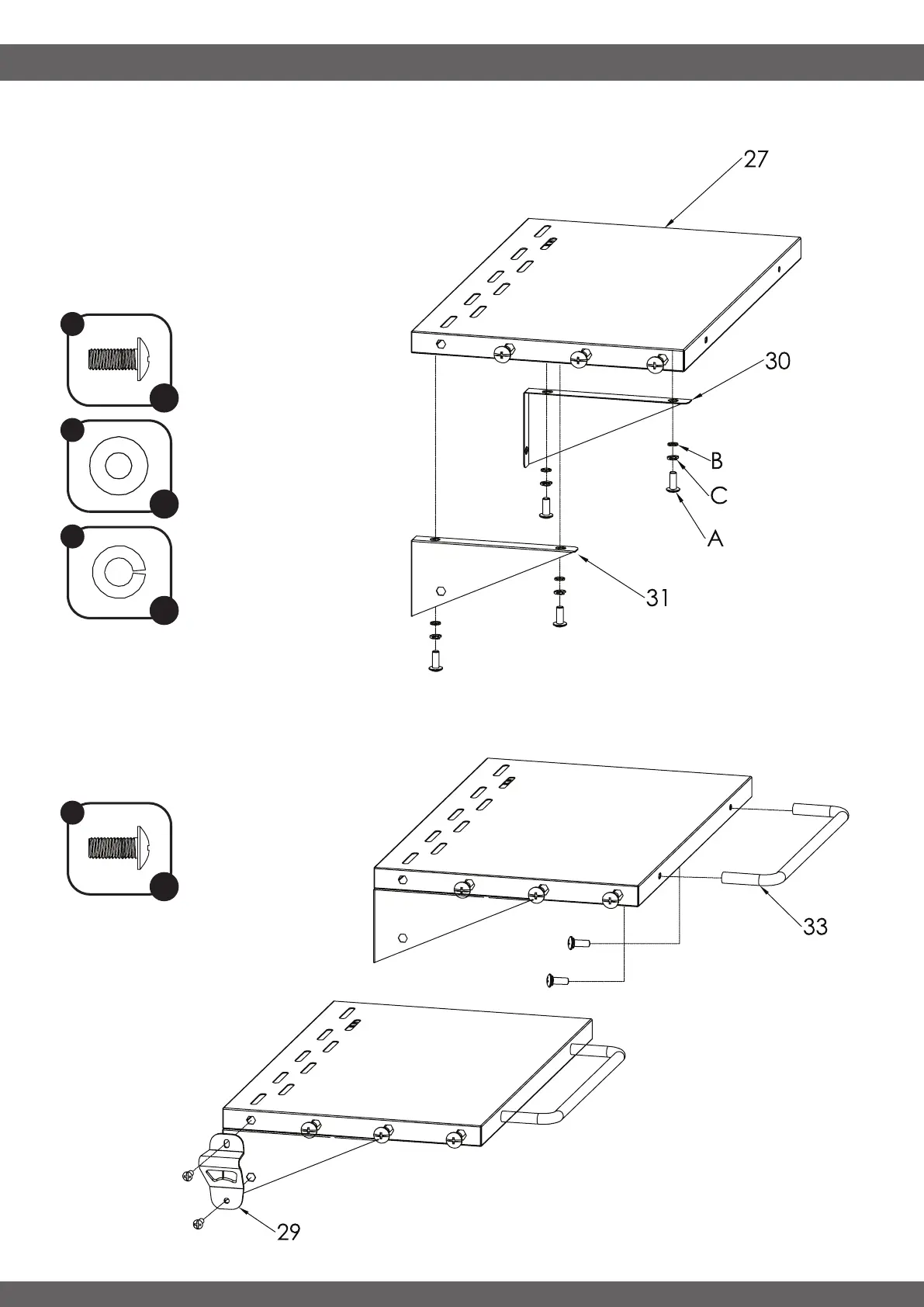

STEP 24
-----------------------------------------------------------------------------------
• Attach the Side Shelf Bracket Left (31)
and Side Shelf Bracket Right (30) to the
bottom of the Side Shelf using Screws
(A), Washers (B) and Lock Washers (C) as
shown in the image.
A
B
C
x 4
x 4
x 4
