ASSEMBLY INSTRUCTIONS
19
STEP 22
-----------------------------------------------------------------------------------
STEP 23
-----------------------------------------------------------------------------------

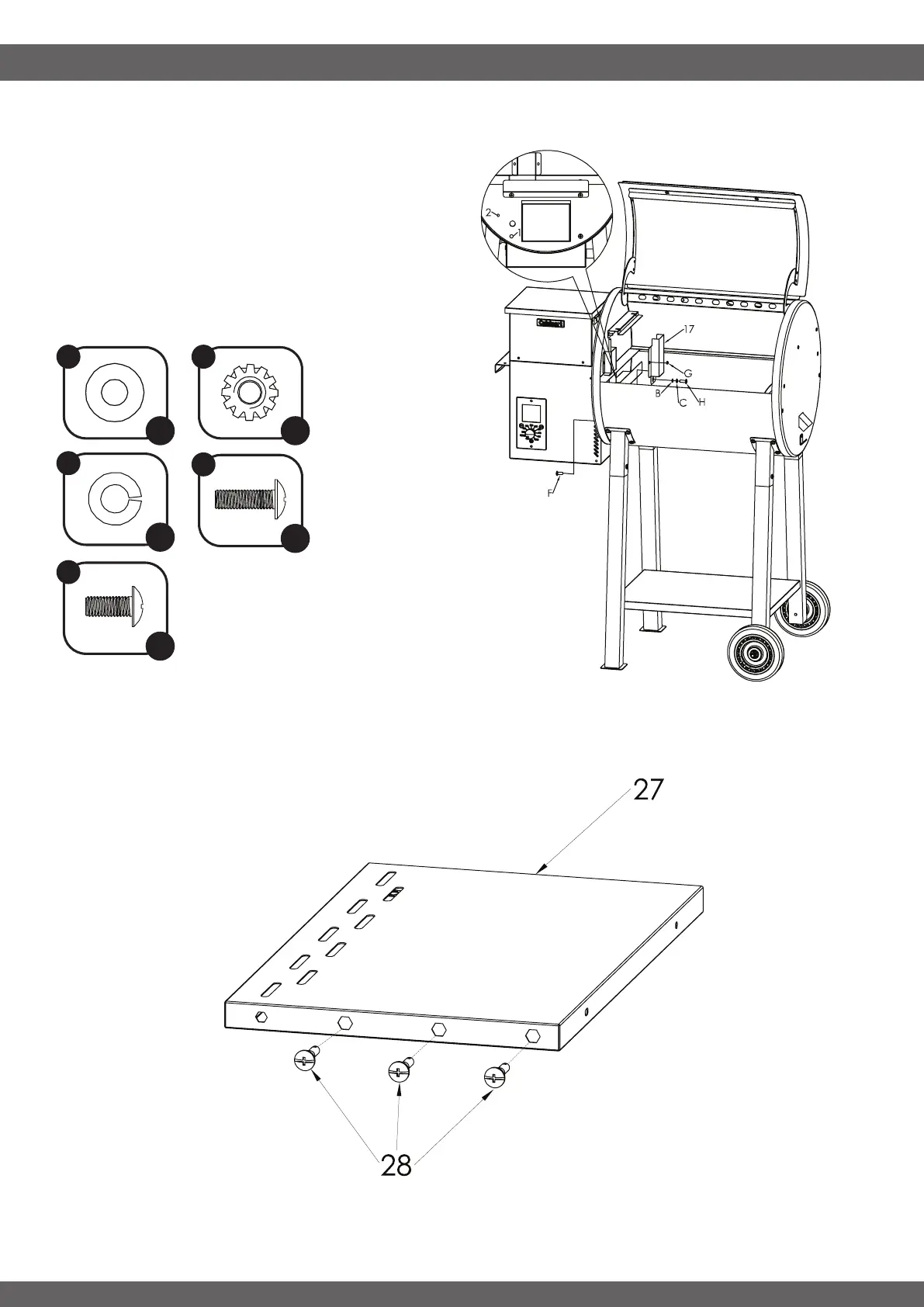

• Install the Wire Guard (17) by first using
Screw (H), Lock washer (C) and Washer (B)
through hole 1 illustrated in the detail view.
• Fully secure the Wire Guard using Screw
(F) and Lock Nut (G) through hole 2. The
screw is inserted from the outside and the
nut secures it on the inside of the cook
chamber.
• Attach the three Tool Hooks (28) to the
Side Shelf (27).
B
C
F
x1
x1
x1
G
x 1
H
x 1
