ASSEMBLY INSTRUCTIONS
14

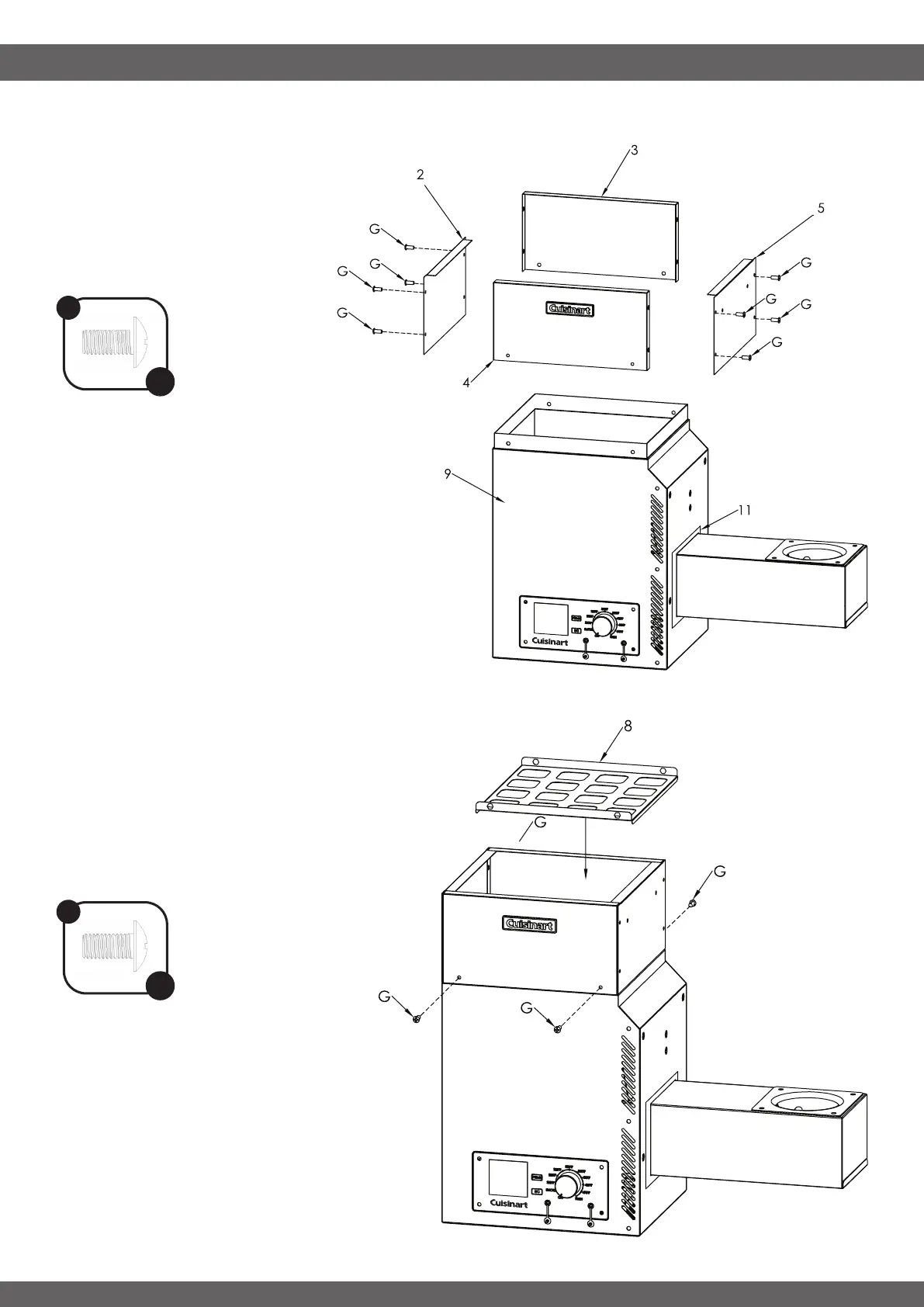

STEP 13 - HOPPER
-----------------------------------------------------------------------------------
STEP 14 - HOPPER
-----------------------------------------------------------------------------------
• Assemble the top section of
the hopper as shown. Note
the positions of Panels (2),
(3), (4), and (5). Secure the
panels to each other using
8 Screws (G).
• Insert the Hopper Grate (8) into the
hopper ensuring the four threaded
holes line up with the holes on the
front and back of the hopper.
• Secure the upper hopper assembly
to the Hopper Body (9) with four
Screws(G) by threading them into
the Hopper Grate (8).
G
x 8
G
x4
