Page 18 40 Series Granulators
Loosen the fastener in the front of the cutting chamber.
Note that this fastener does not need to be completely
removed from the upper cutting chamber as it is designed to
be captive for convenience. Before attempting to open the
front doors, ensure that the safety interlock has been
released (see page 30).
NOTE: DO NOT USE ANY OTHER MEANS TO CRANK
OPEN THE MACHINE THAN THE HAND CRANK
PROVIDED. Using other methods of turning the jack
could result in damage to the unit.
Rotate the hand crank clockwise (towards the rear of the
machine) to open the cutting chamber approximately 90
o
(For more information on opening the cutting chamber refer
to Section 4).

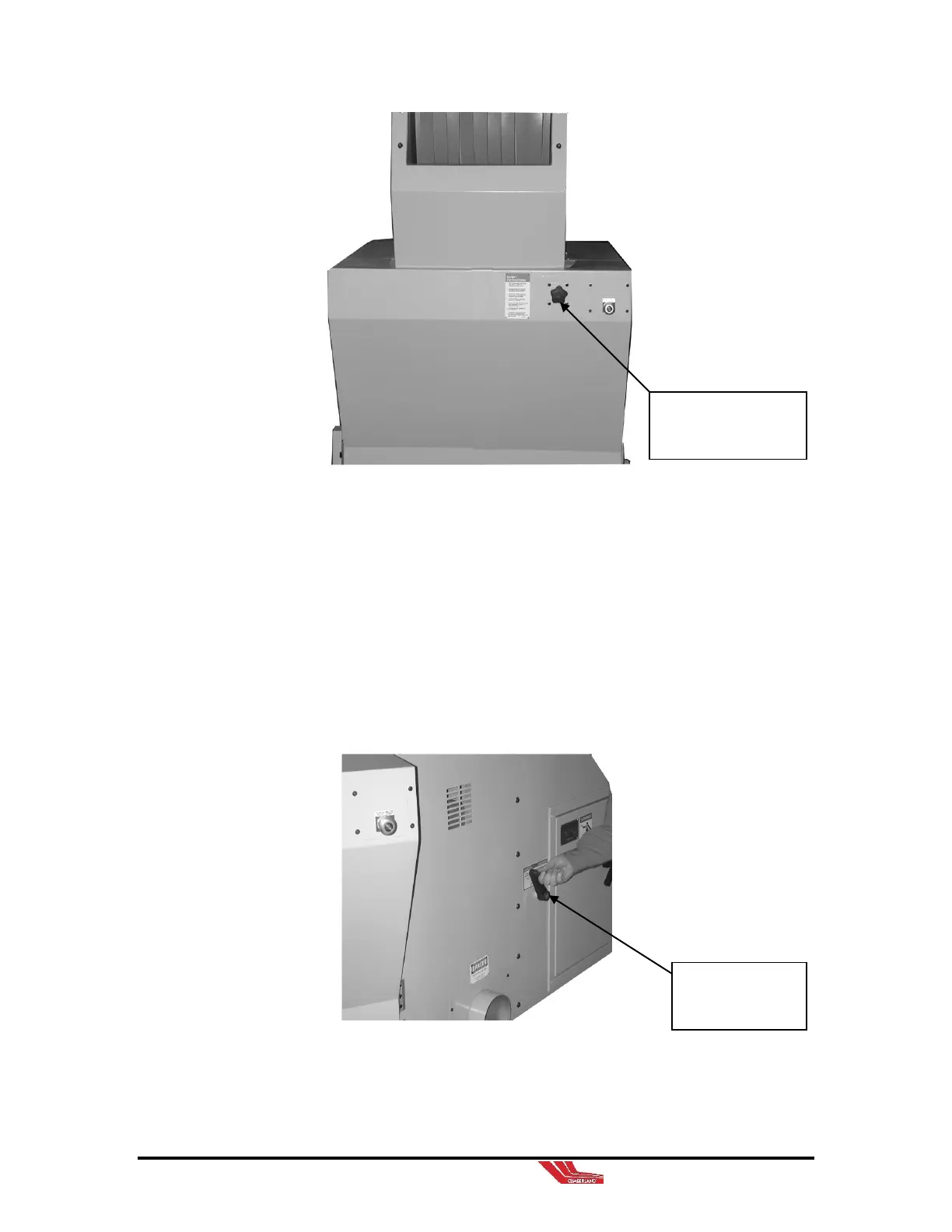

Fastener (turn
counter-clockwise to
loosen)
Hand Crank (RH
Side of Machine)
