CSG 600 SLIDING GATE OPERATOR USER’S MANUAL
Anchors
You can use the anchors, bolts, washers and nuts that are provided with the operator see
Fig.4. These anchors must be set into the concrete when it is poured, or you can use wedge
expansion bolts.
Operator base
Mount the gate operator base to the concrete pad see Fig.4. Verify that the operator is leveled
properly.
Operator
Mount the gate operator to the base using nuts and washers.

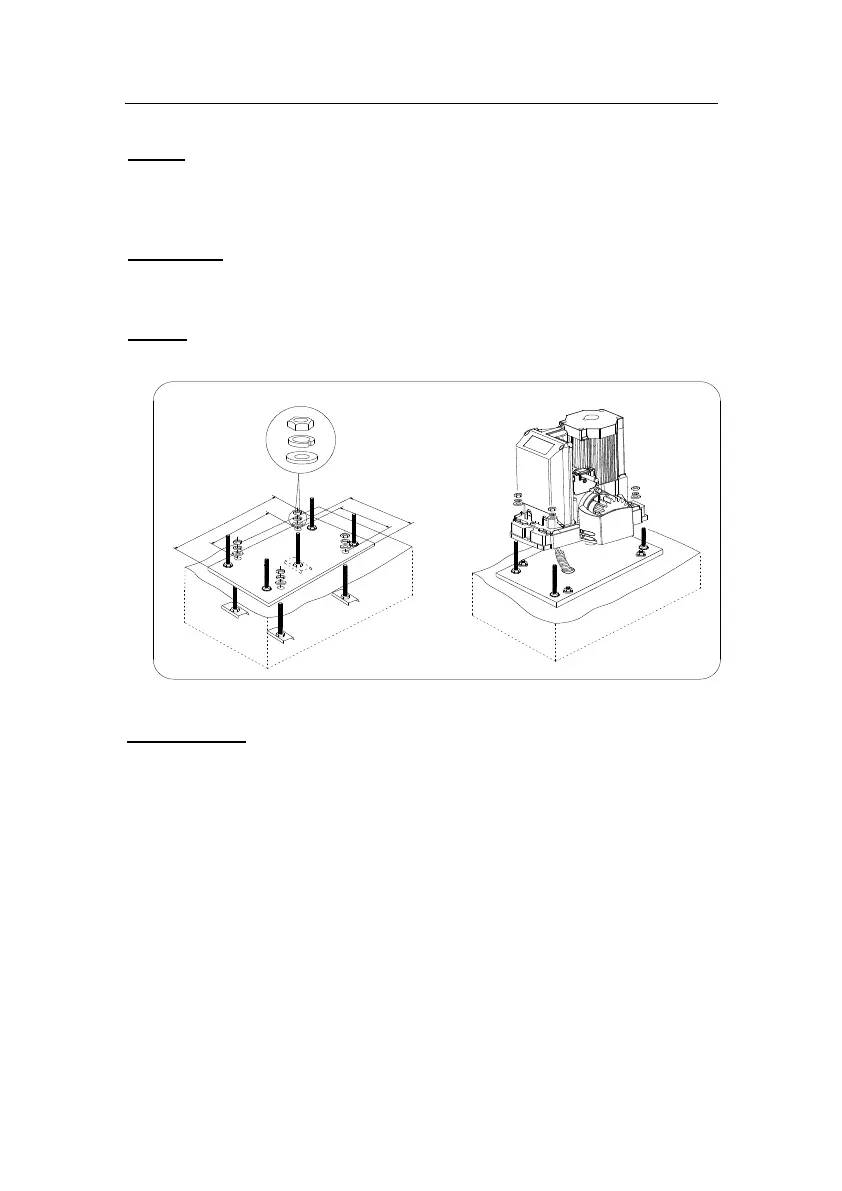

Fig.4
Installing the rack (see Fig.5)
Weld the steel rack
⚫ Manually move the gate to its closing position.
⚫ Place the three threaded pawls (in the same package with rack) on the rack element.
⚫ Lay the first piece of rack on the gear and weld the first threaded pawl on the gate.
⚫ Move the gate manually, checking if the rack is resting on the gear, and weld the
second and third pawls.
⚫ The space between rack and gear is about 1mm.
⚫ Bring another rack element near to the previous one. Move the gate manually and weld
the three pawls as the first rack, thus proceeding until the gate is fully covered.
⚫ When the rack has been installed, to ensure it meshes correctly with the gear.
⚫ If necessary, assemble the spacer between the rack and pawl to synchronise the teeth
of the two rack elements and keep racks in a straight line. See Fig.5
