CSG 600 SLIDING GATE OPERATOR USER’S MANUAL
Fig.5
Spring limit switch

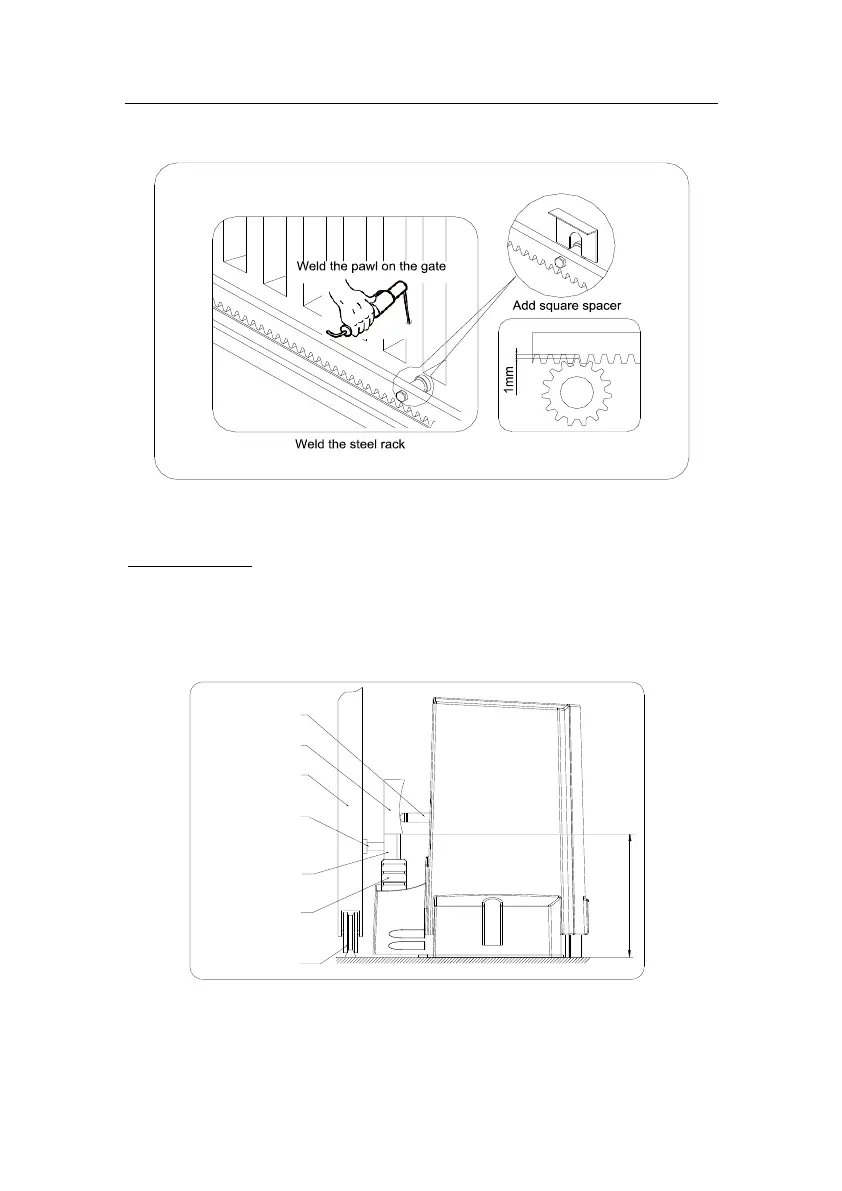

Install the block as shown in Fig.6 and Fig.7. Release the gear clutch with the key and push
the sliding gate manually to pre-determine the position, screw the block to the rack and then
tighten the gear clutch with the key. Moving the gate electrically, adjust the block to the proper
position until the position of the opening and closing meet the requirement.
Fig.6
Block
Gate
Pawl
Rack
Gear
Guide rail
Spring limit switch
19 teeth: 122mm
24 teeth: 132mm
