Caution:
Always use the electrodes with the requirements of the
IEC/EN60601-1
ISO10993-1/-5/-10 and IEC/ EN60601-1-2, such
as with CE mark, or which are legally marketed in the US
under 510(K) procedure.
4.3 Connect lead wires to device
1) Before proceeding to this step, be sure the device is completely
turned OFF.
2) The wires provided with the system insert
into the jack sockets
located on top of the device.
3) Holding the insulated portion of the connector, push the plug

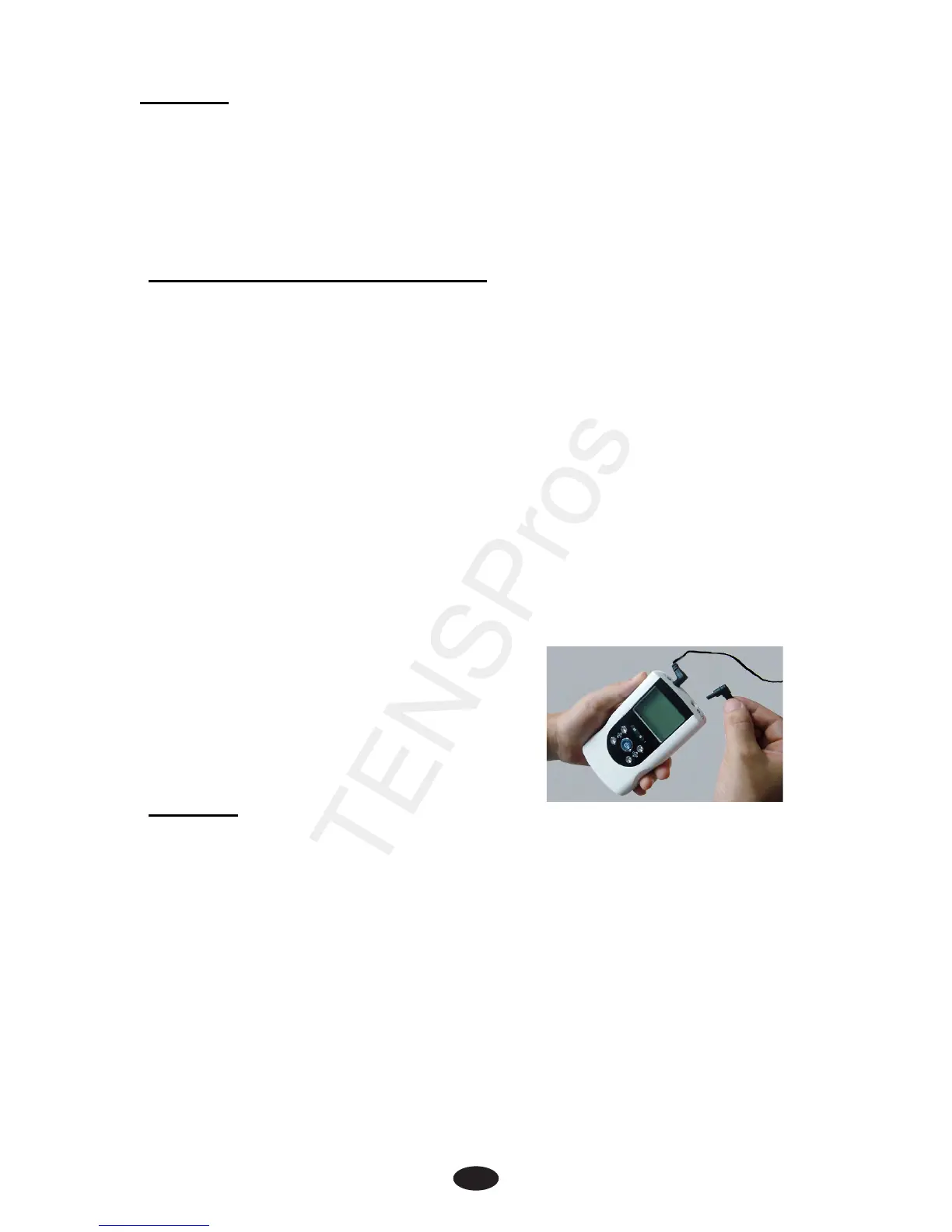

end of the wire into one of the jacks (see drawing); one or two
sets of wires may be used.
4) This device has two output receptacles controlled by Channel 1
and Channel 2 at the top of the unit. You may choose to use
one channel with one pair of lead wires or both channels with
two pairs of lead wires. Using both channels gives the user the
advantage of stimulating two different areas at the same time.
Caution:
Do not insert the plug of the
patient lead wire into any AC power supply socket.
