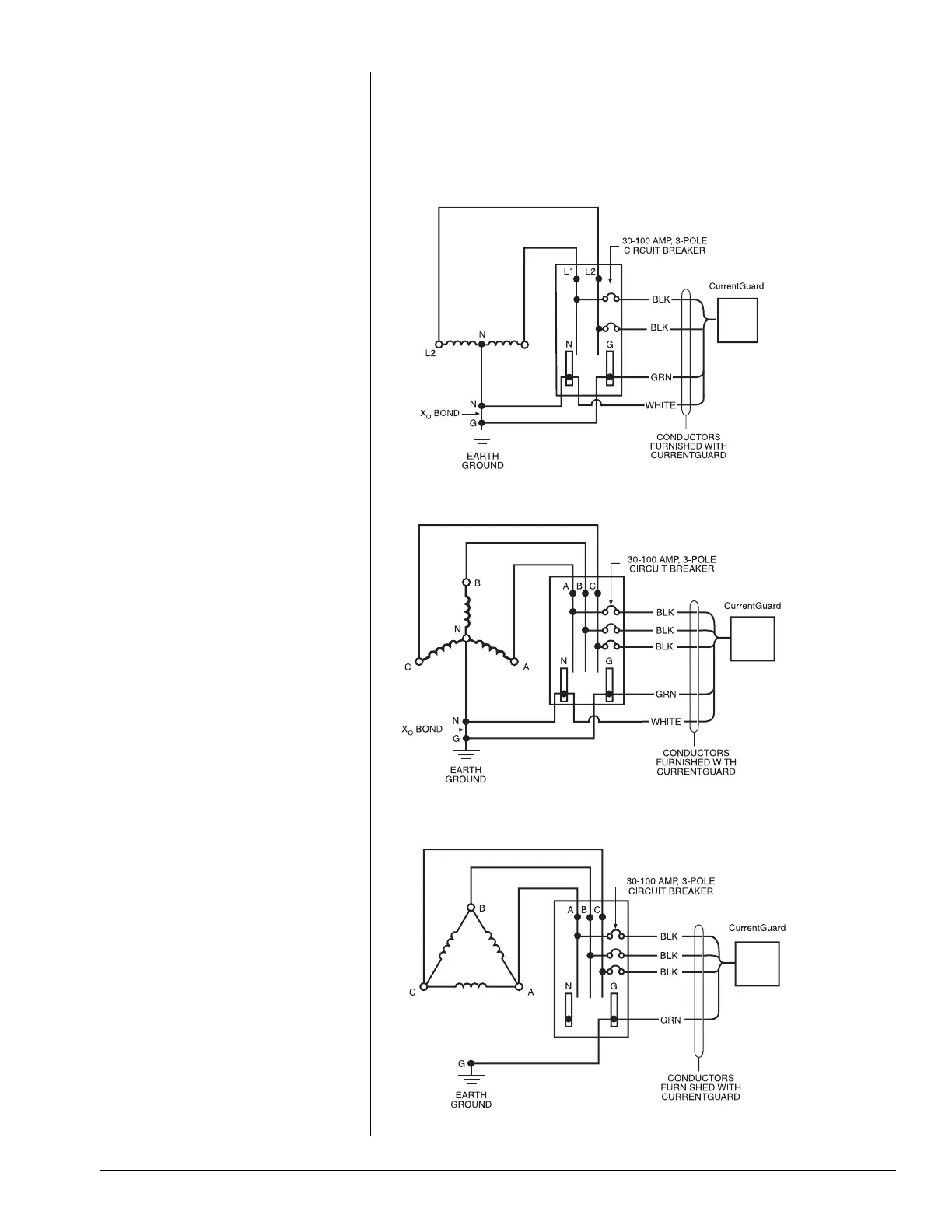

Figures 1-4 show the electrical relationship between CurrentGuard and

these four basic service configurations: Split-phase, 3-wire;

Three-phase, 4-wire WYE; Three-phase, 3-wire DELTA and Three-phase,

4-wire high-leg DELTA.

Wiring Connection Diagrams

CurrentGuard

™

and CurrentGuard

™

Plus Installation, Operation and Maintenance Manual

Fig. 1: Split-Phase, 3-Wire

ORN

RED

Fig. 2: 3-Phase, 4-Wire WYE

ORN

RED

Fig. 3: 3-Phase, 3-Wire DELTA
